PC300LL-7L S/N A85001-UP

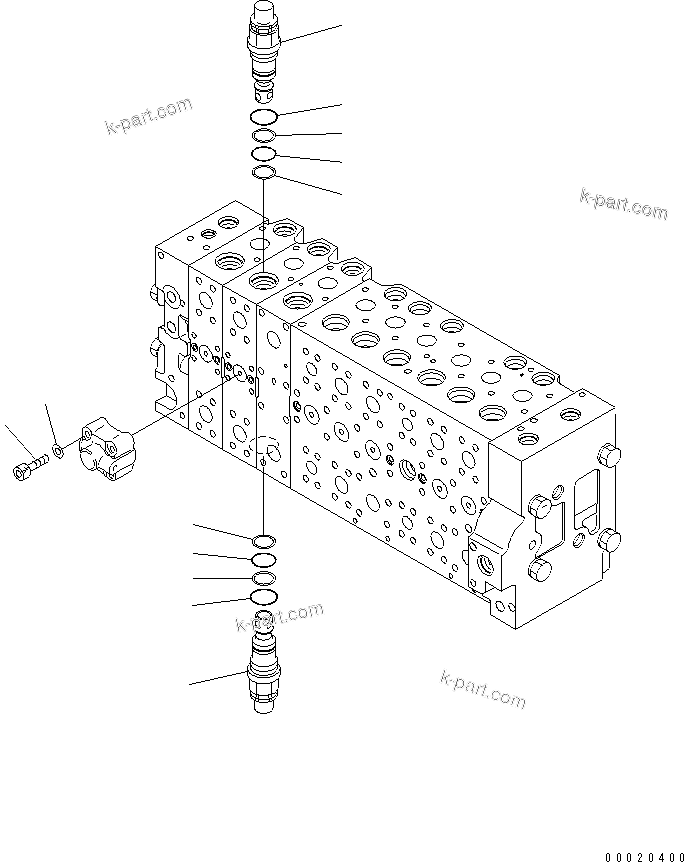

Komatsu parts book diagram for PC300LL-7L S/N A85001-UP: MAIN VALVE (VALVE SPOOL) (8TH) (SUCTION AND SAFETY VALVE) (WITH 2 ACTUATOR)

? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	723-49-26102	CONTROL VALVE,(SEE FIG. H0120-01A0)	1	SN: A85001-UP
	?		BODY SUB ASS'Y	1	SN: A85001-UP
	?	723-46-48100	VALVE ASS'Y	2	SN: A85001-UP
	?	700-93-11320	O-RING	1	SN: A85001-UP
	?	723-46-41950	RING	2	SN: A85001-UP
	?	07002-13634	O-RING	1	SN: A85001-UP
	?	01252-60845	BOLT	4	SN: A85001-UP
	?	01643-50823	WASHER	4	SN: A85001-UP

Komatsu PC300LL-7L S/N A85001-UP parts catalog PDF

MAIN VALVE (VALVE SPOOL) (8TH) (SUCTION AND SAFETY VALVE) (WITH 2 ACTUATOR) (H0120-22A2) in PC300LL-7L S/N A85001-UP. Diagram image and parts list.
