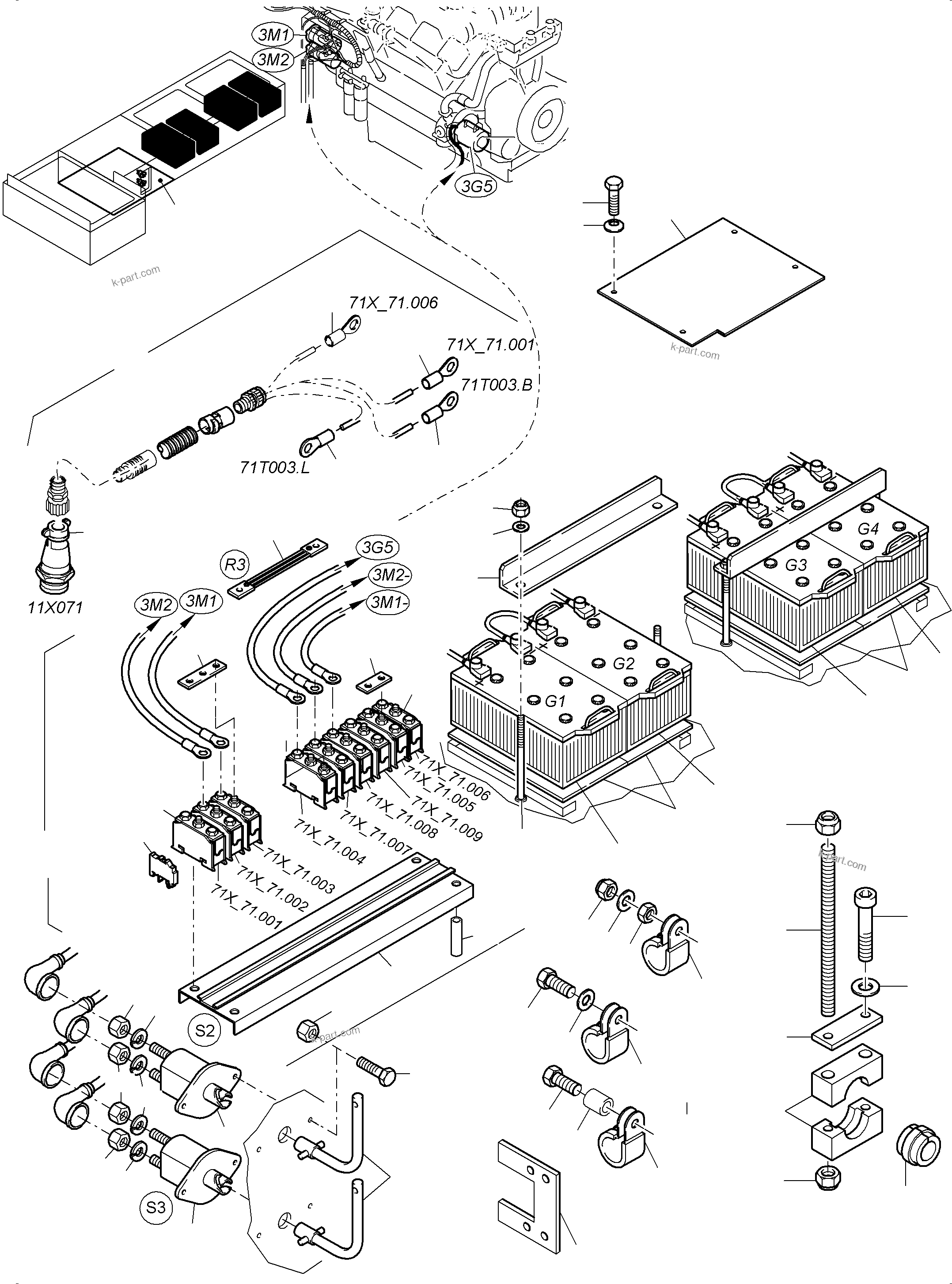

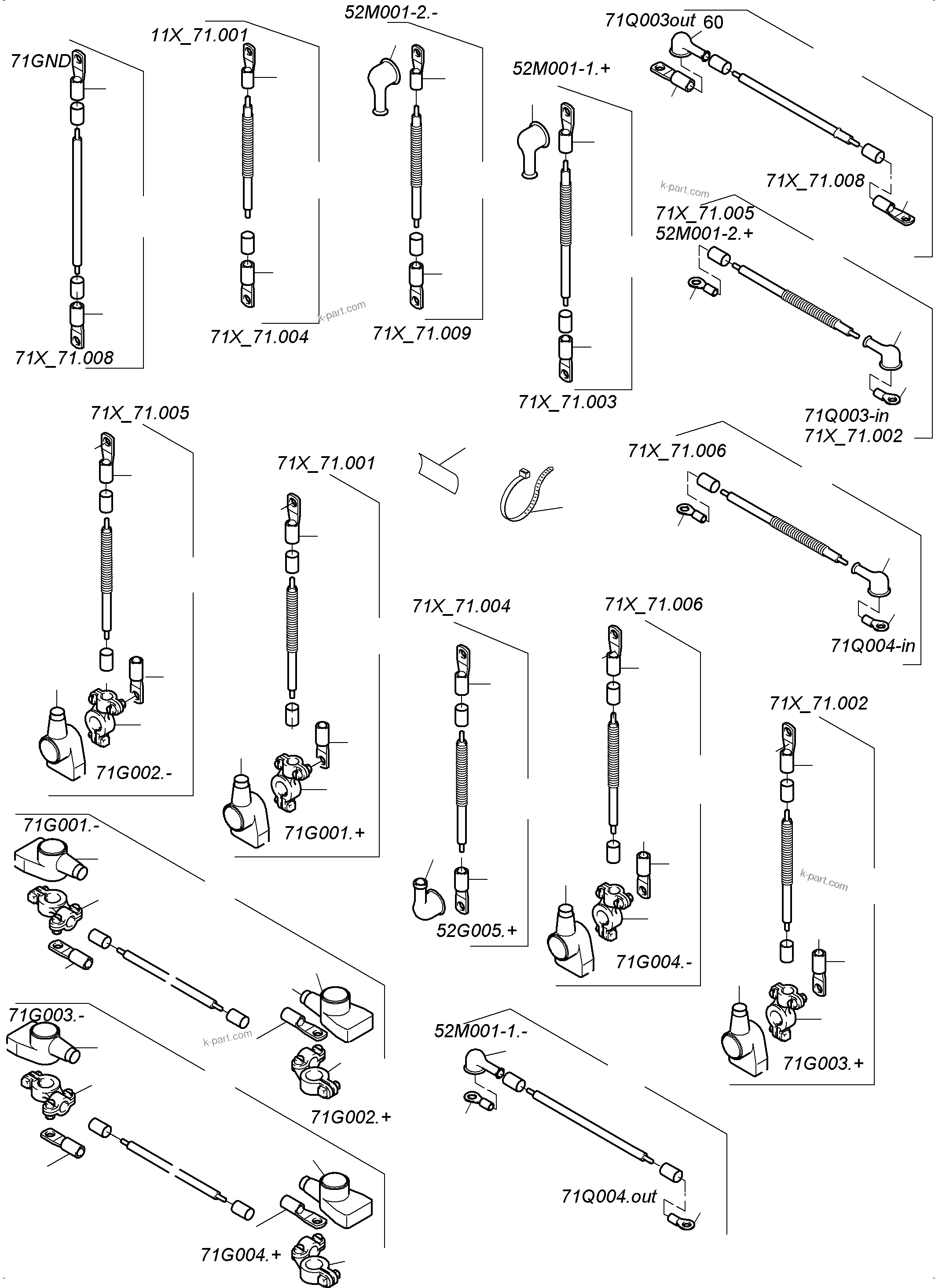

Diagram image 1 of 2

PC3000-6 S/N 06279

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06279

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	507 037 98	Nut	37
?	343 005 99	Washer	4
?	332 113 99	Nut	4
?	963 433 40	Auxiliary resistor assy.	1
?	963 434 40	Cable-Auxiliary resistor assy. 11X_71	1
?	0443452110	Clip ш 21,5	1
?	963 861 40	Cable battery 71G002/71X_71	1
?	963 865 40	Cable battery 71G001/71G002	1
?	963 863 40	Cable battery 71G003/71X_71	1
?	963 860 40	Cable battery 71G004/71X_71	1
?	963 862 40	Cable battery 71G001/71X_71	1
?	963 864 40	Cable battery 71G003/71G004	1
?	963 853 40	Cable battery 71Q004/71X_71.	1
?	963 852 40	Cable battery 71Q003IN/71X_71	1
?	963 850 40	Cable battery 71Q003OUT/71X_71	1
?	963 866 40	Cable battery 11X071-SHUNT	1
?	309 691 40	Battery	4
?	963 849 40	Cable battery 71X_71/71GND	1
?	507 025 98	Nut	4
?	159 984 40	Battery switch	2
?	321 014 99	Screw	4
?	952 891 40	Rubber plate	1
?	502 618 98	Pair of clamps	21
?	534 004 99	Cover plate	11
?	510 452 98	Grommet	7
?	515 628 98	Grommet	14
?	933 370 40	Thread rod 150 lg	4
?	430 152 40	Thread rod 270 lg	4
?	933 371 40	Thread rod 200 lg	2
?	887 009 40	Angle	2
?	332 353 99	Nut	4
?	340 652 99	Washer	4
?	655 357 40	Moulding material	2
?	308 581 99	Bolt	12
?	517 122 98	Lock washer	26
?	510 741 98	Resilient sleeve	4
?	635 006 40	Sectional plate	1
?	941 787 40	Terminal	9
?	654 469 40	Auxiliary resistor	1
?	955 333 40	Cross connection	2
?	955 332 40	Cross connection	1
?	940 673 40	Clamp	6
?	600 209 99	Cable lug 10-95	2
?	056 076 40	Protection cap	16
?	906 943 40	Pole end plate, black	4
?	954 570 40	Battery clamp assy.	4
?	600 227 99	Cable lug	8
?	906 942 40	Pole end plate, red	4
?	954 569 40	Battery clamp assy.	4
?	600 221 99	Cable lug	5
?	906 153 40	Cable lug	8
?	932 518 40	Cable lug	2
?	055 100 40	Cable shoe	2
?	950 137 40	Plug	1
?	950 131 40	Protection cap	1
?	941 777 40	Plate	1
?	174 411 40	Cable strap	2
?	906 941 40	Pole, minus	4
?	518 200 98	Lock washer	8
?	906 940 40	Pole, plus	4
?	972 007 40	Cable starter 52M001+/71X_71	1
?	963 857 40	Cable starter 52M001-/71X_71	1
?	972 004 40	Cable generator 52G005/71X_71	1
?	963 856 40	Cable starter 52M001-/71Q004	1
?	963 851 40	Cable starter 52M001+/71Q004	1
?	0443452711	Clip ш 27	3
?	518 080 98	Resilent sleeve	8
?	340 465 99	Washer	12
?	307 777 99	Bolt 25 lg	1
?	307 780 99	Bolt 35 lg	1
?	0443453211	Clip ш 32	29
?	963 884 40	Retainer	1
?	600 208 99	Cable shoe Ш 10 - 702	1
?	932 728 40	Cable lug	1
?	966 673	Gear shift lever	2
?	346 500 99	Lock washer	4
?	332 132 99	Nut	4
?	935 251 40	Cover	1
?	307 773 99	Bolt	4
?	308 431 99	Bolt	4
?			-2
?			-2
?			-2
?			-2
?			-2

Komatsu PC3000-6 S/N 06279 parts catalog PDF

BATTERIES WITH CABLES (489-2131) in PC3000-6 S/N 06279. Diagram image and parts list.
