WB140PS-2N S/N A40034-UP

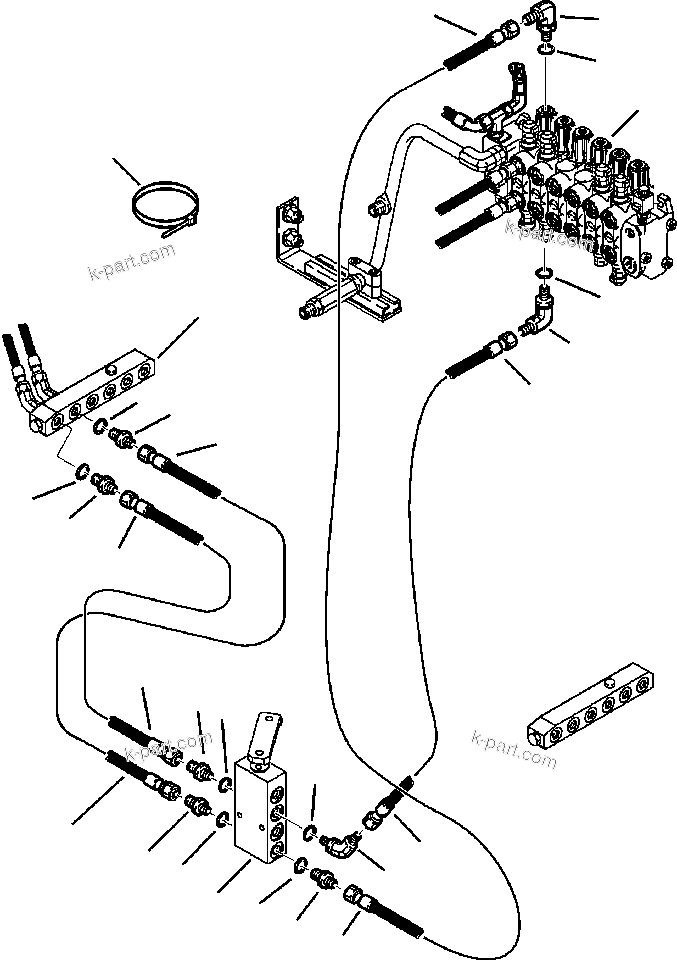

Komatsu parts book diagram for WB140PS-2N S/N A40034-UP: FIG. H6566-P2A4 PPC SYSTEM - PIPING - MANIFOLD TO PATTERN CHANGE TO ARM SECTION

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		MANIFOLD (SEE FIG. H6566-P1A1)	-1	SN: A40043--UP	H6566-P1A1
	?	500351755	CONNECTOR	4	SN: A40043--UP
	?	855051111	O-RING	1	SN: A40043--UP
	?	392079004	HOSE, 8 PORT	1	SN: A40043--UP
	?	392079009	HOSE, 6 PORT	1	SN: A40043--UP
	?		PATTERN VALVE (SEE FIG. H6304-P4A4)	-1	SN: A40043--UP	H6304-P4A4
	?	500355715	ELBOW	1	SN: A40043--UP
	?	855051111	O-RING	1	SN: A40043--UP
	?	392079009	HOSE, 4 PORT	1	SN: A40043--UP
	?	392079008	HOSE, 2 PORT	1	SN: A40043--UP
	?	500352116	ELBOW	2	SN: A40043--UP
	?	855051111	O-RING	1	SN: A40043--UP
	?		6 SECTION VALVE (SEE FIG. H6304-P1A0)	-1	SN: A40043--UP	H6304-P1A0
	?		7 SECTION VALVE (SEE FIG. H6304-P1A1)	-1	SN: A40043--UP	H6304-P1A1
	?		7 SECTION VALVE (SEE FIG. H6304-P1A2)	-1	SN: A40043--UP	H6304-P1A2
	?		8 SECTION VALVE (SEE FIG. H6304-P1A3)	-1	SN: A40043--UP	H6304-P1A3
	?	08034-00519	STRAP, TIE	2	SN: A40043--UP
	?	312693086	CONNECTOR	1	SN: A40043--UP
	?	855051111	O-RING	1	SN: A40043--UP

Komatsu WB140PS-2N S/N A40034-UP parts catalog PDF

FIG. H6566-P2A4 PPC SYSTEM - PIPING - MANIFOLD TO PATTERN CHANGE TO ARM SECTION (H6566-P2A4) in WB140PS-2N S/N A40034-UP. Diagram image and parts list.
