WB140PS-2N S/N A40034-UP

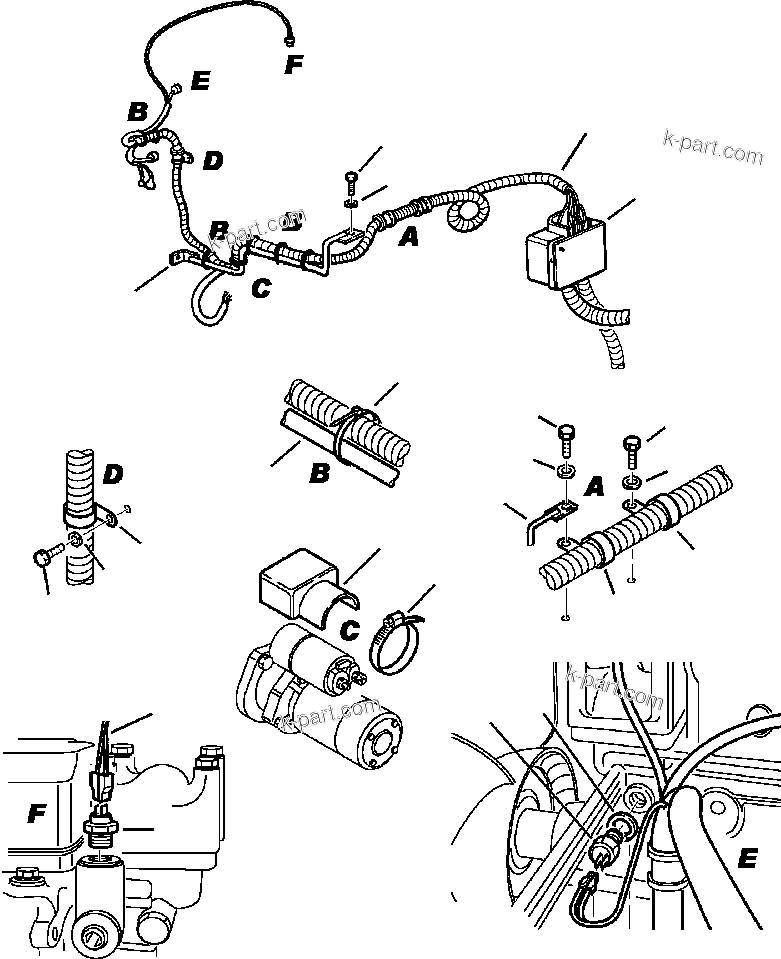

Komatsu parts book diagram for WB140PS-2N S/N A40034-UP: FIG. E1500-01A0 ELECTRICAL SYSTEM - ENGINE WIRING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	312612142	WIRING HARNESS, ENGINE	1	SN: A40034-A40042-UP
	?	802660034	CLAMP	2	SN: A40034-A40042-UP
	?	801015109	BOLT	2	SN: A40034-A40042-UP
	?	802170002	WASHER	2	SN: A40034-A40042-UP
	?	802612134	SUPPORT	1	SN: A40034-A40042-UP
	?	802660506	CLAMP	1	SN: A40034-A40042-UP
	?	801015108	BOLT	1	SN: A40034-A40042-UP
	?	802170002	WASHER	1	SN: A40034-A40042-UP
	?	885180010	TIE STRAP	15	SN: A40034-A40042-UP
	?	885070024	SWITCH, TEMPERATURE	1	SN: A40034-A40042-UP
	?	312607707	COVER	1	SN: A40034-A40042-UP
	?	885190006	CLAMP	1	SN: A40034-A40042-UP
	?		SENDER (SEE FIG. A0140-01A0)	-1	SN: A40034-A40042-UP	A0140-01A0
	?		GASKET (SEE FIG. A0140-01A0)	-1	SN: A40034-A40042-UP	A0140-01A0
	?		ENGINE CONTROL (SEE FIG. E1500-01A4)	-1	SN: A40034-A40042-UP	E1500-01A4

Komatsu WB140PS-2N S/N A40034-UP parts catalog PDF

FIG. E1500-01A0 ELECTRICAL SYSTEM - ENGINE WIRING (E1500-01A0) in WB140PS-2N S/N A40034-UP. Diagram image and parts list.
