SAA6D125E-5 S/N 560001-UP

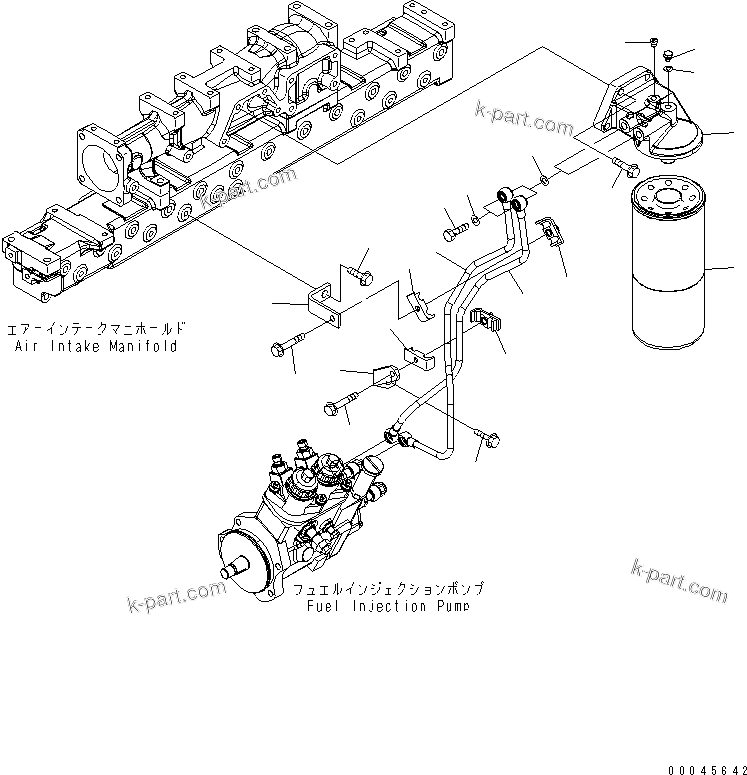

Komatsu parts book diagram for SAA6D125E-5 S/N 560001-UP: FUEL FILTER AND PIPING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6217-71-7300	HEAD ASS'Y (1-5/8),FUEL FILTER	1	SN: 560001-UP
	?	6217-71-7310	HEAD (1-5/8)	1	SN: 560001-UP
	?	6110-73-6231	PLUG	1	SN: 560001-UP
	?	07005-00812	GASKET	1	SN: 560001-UP
	?	07043-70108	PLUG	1	SN: 560001-UP
	?		CARTRIDGE (1-5/8),(SEE FIG. A4119-A4A1)	-1	SN: 563363-UP
	?		CARTRIDGE (1-5/8),(SEE FIG. A4119-A4A1)	-1	SN: 560001-563362
	?	01435-01035	BOLT	4	SN: 560001-UP
	?	6251-71-5520	TUBE,INLET	1	SN: 560001-UP
	?	6251-71-5540	TUBE,RETURN	1	SN: 560001-UP
	?	07206-31014	BOLT,JOINT	2	SN: 560001-UP
	?	07005-01412	WASHER	4	SN: 560001-UP
	?	6251-71-6230	BRACKET	1	SN: 560001-UP
	?	01435-01020	BOLT	1	SN: 560001-UP
	?	6251-71-6210	BRACKET	1	SN: 560001-UP
	?	01435-01020	BOLT	1	SN: 560001-UP
	?	6166-75-6820	CLAMP	2	SN: 560001-UP
	?	6261-51-9480	CLAMP	2	SN: 560001-UP
	?	01435-00840	BOLT	2	SN: 560001-UP

Komatsu SAA6D125E-5 S/N 560001-UP parts catalog PDF

FUEL FILTER AND PIPING (A4110-A3R4) in SAA6D125E-5 S/N 560001-UP. Diagram image and parts list.
