4D94E-1A S/N 00101-UP

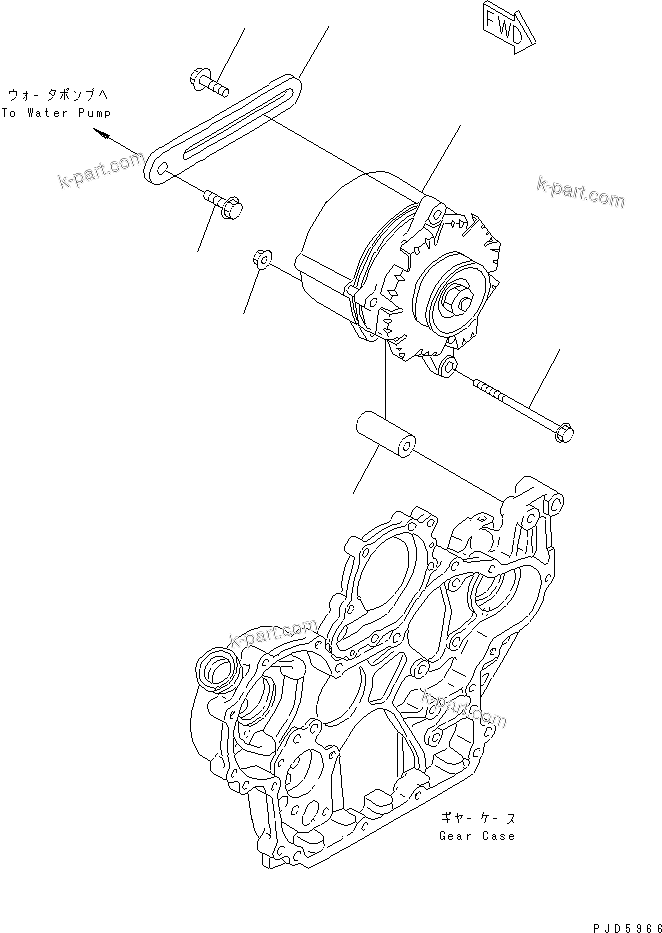

Komatsu parts book diagram for 4D94E-1A S/N 00101-UP: ALTERNATOR AND MOUNTING (25A) (FOR TRIMMING DOZER)(#02611-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM129910-77201	ALTERNATOR A. (25A)	1	SN: 02611-UP
	?	YM129470-77340	SPACER	1	SN: 00101-UP
	?	YM26116-101202	BOLT	1	SN: 00101-UP
	?	YM26366-100002	NUT	1	SN: 00101-UP
	?	YM129900-77330	PLATE,ADJUST	1	SN: 00101-UP
	?	YM26014-080252	BOLT	1	SN: 02611-UP
	?	YM119810-77340	BOLT	1	SN: 02611-UP

Komatsu 4D94E-1A S/N 00101-UP parts catalog PDF

ALTERNATOR AND MOUNTING (25A) (FOR TRIMMING DOZER)(#02611-) (A6010-A0A3A) in 4D94E-1A S/N 00101-UP. Diagram image and parts list.
