PC60-8 S/N DJA20001-up

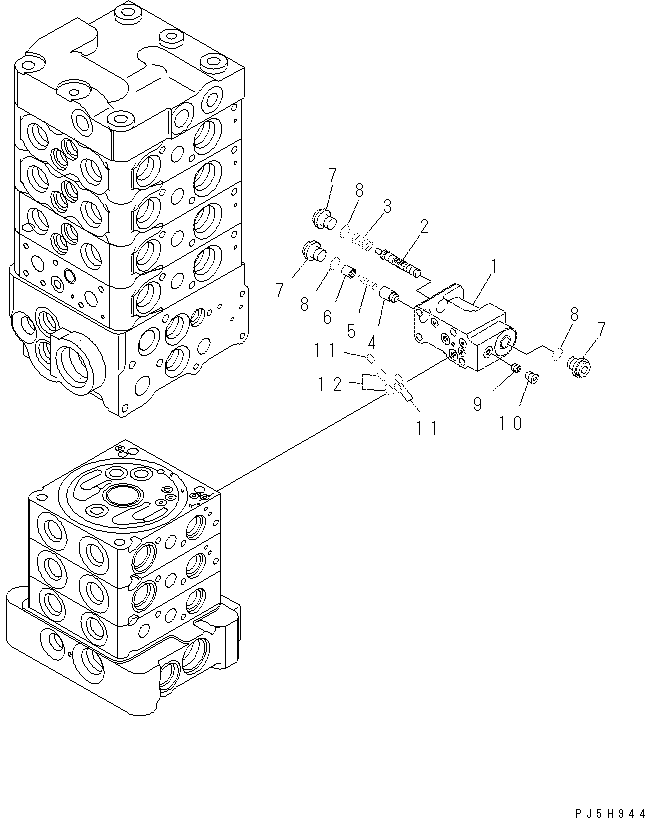

Komatsu parts book diagram for PC60-8 S/N DJA20001-up: MAIN VALVE (7-VALVE) (15/18)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-27-50900	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJA20001-
	\|$2		THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-18A0	-1	Field_1: THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1662-01A0 TO Y
	\|$3	723-11-01910	VALVE ASS'Y	1	Field_1: VALVE ASS'Y \| Field_2: DJA20001-
	1	Ўо	BLOCK	1	Field_1: BLOCK \| Field_2: DJA20001-
	2	Ўо	SPOOL	1	Field_1: SPOOL \| Field_2: DJA20001-
	3	723-11-27830	SPRING	1	Field_1: SPRING \| Field_2: DJA20001-
	4	Ўо	VALVE	1	Field_1: VALVE \| Field_2: DJA20001-
	5	723-11-18180	SPRING	1	Field_1: SPRING \| Field_2: DJA20001-
	6	723-11-27840	SPACER	1	Field_1: SPACER \| Field_2: DJA20001-
	7	723-11-27850	PLUG	3	Field_1: PLUG \| Field_2: DJA20001-
	8	07002-11023	O-RING	3	Field_1: O-RING \| Field_2: DJA20001-
	9	Ўо	ORIFICE	1	Field_1: ORIFICE \| Field_2: DJA20001-
	10	Ўо	PLUG	1	Field_1: PLUG \| Field_2: DJA20001-
	11	07000-11005	O-RING	3	Field_1: O-RING \| Field_2: DJA20001-
	12	07000-11007	O-RING	2	Field_1: O-RING \| Field_2: DJA20001-

Komatsu PC60-8 S/N DJA20001-up parts catalog PDF

MAIN VALVE (7-VALVE) (15/18) (|Y00251) in PC60-8 S/N DJA20001-up. Diagram image and parts list.
