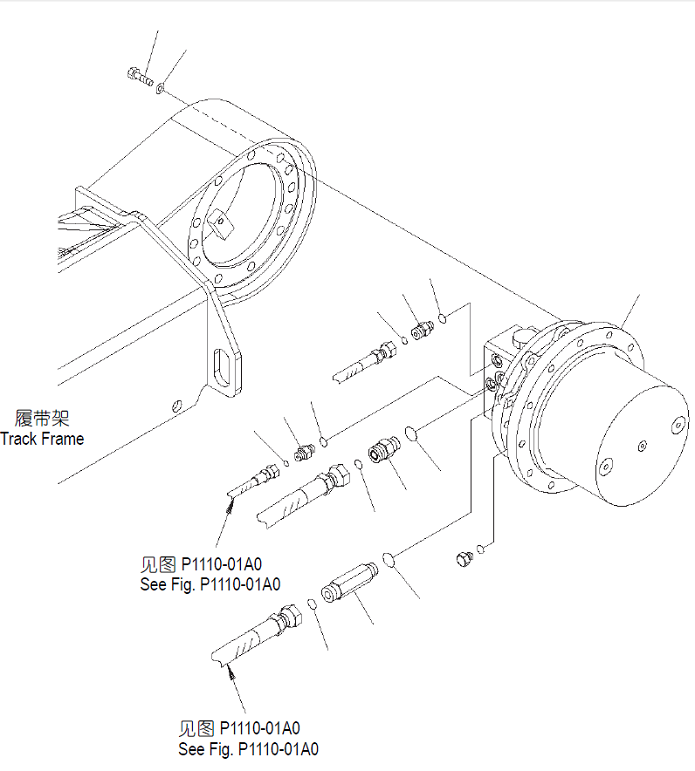

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: FINAL DRIVE (TRAVEL MOTOR AND RELATED PARTS)

12 13 10 9 11 7 6 8 4 2 5 1 5 3 4

	#	Part Number	Partname	Quantity	Options	Reference
	1	22H-60-13112	MOTOR ASS'Y, (SEE FIG. Y1651-01A0)	2	Field_1: MOTOR ASS'Y, (SEE FIG. Y1651-01A0) \| Field_2: DJB10001-
	2	417-18-32190	NIPPLE	2	Field_1: NIPPLE \| Field_2: DJB10001-
	3	22M-62-21420	NIPPLE	2	Field_1: NIPPLE \| Field_2: DJB10001-
	4	07000-12018	O-RING	4	Field_1: O-RING \| Field_2: DJB10001-
	5	02896-11015	O-RING	4	Field_1: O-RING \| Field_2: DJB10001-
	\|$6	22M-62-24130	UNION ASS'Y	2	Field_1: UNION ASS'Y \| Field_2: DJB10001-
	6	11Y-62-12140	NIPPLE	1	Field_1: NIPPLE \| Field_2: DJB10001-
	7	07000-12011	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	8	02896-11008	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	\|$10	22M-62-24140	UNION ASS'Y	2	Field_1: UNION ASS'Y \| Field_2: DJB10001-
	9	11Y-62-12850	UNION	1	Field_1: UNION \| Field_2: DJB10001-
	10	07000-B2011	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	11	02896-61009	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	12	01010-81445	BOLT	24	Field_1: BOLT \| Field_2: DJB10001-
	13	01643-31445	WASHER	24	Field_1: WASHER \| Field_2: DJB10001-

Komatsu PC57-7 S/N DJB10001-up parts catalog PDF

FINAL DRIVE (TRAVEL MOTOR AND RELATED PARTS) (|P00103) in PC57-7 S/N DJB10001-up. Diagram image and parts list.
