HD1500-7 S/N 80138-UP (-40 deg C) Chassis only

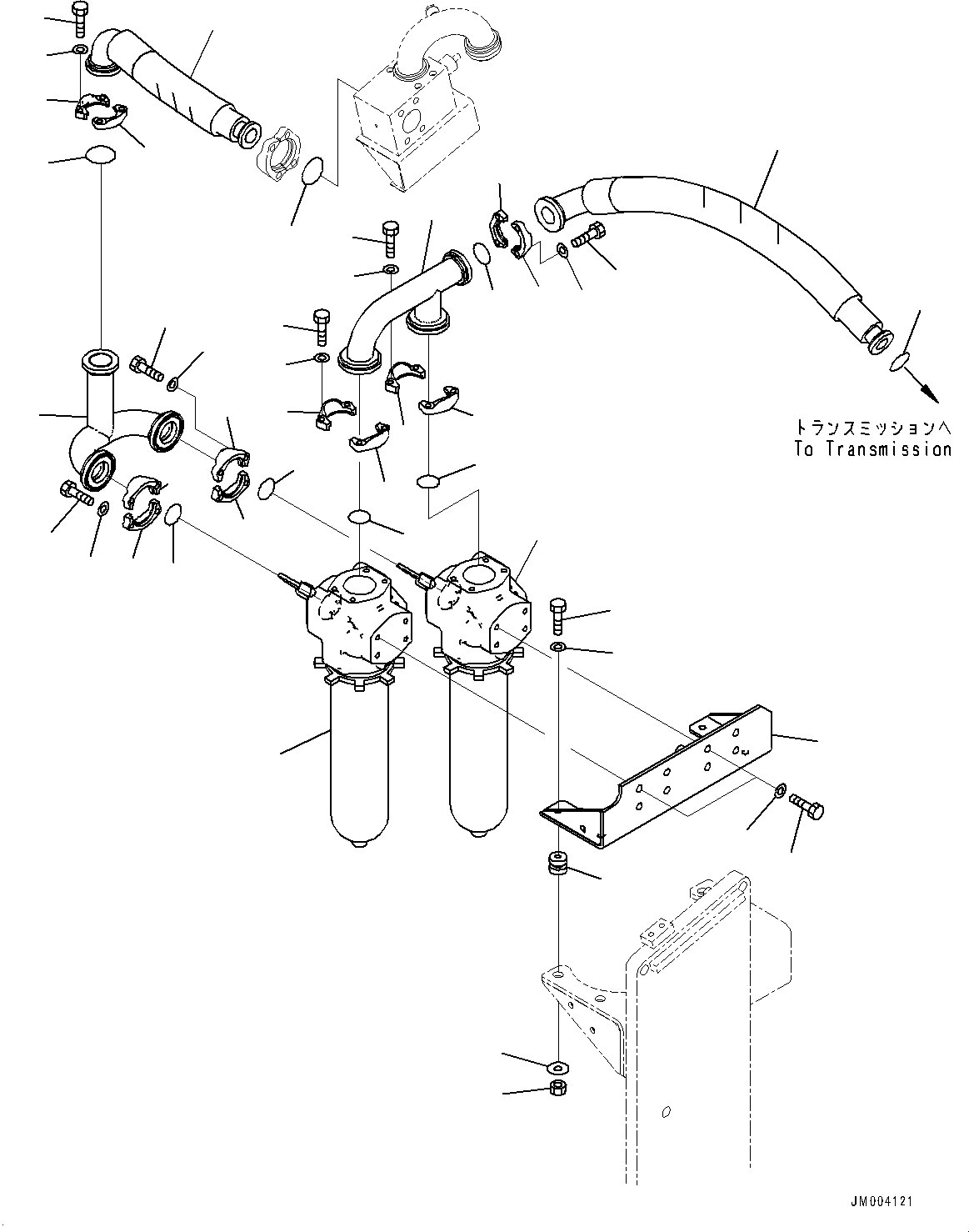

Komatsu parts book diagram for HD1500-7 S/N 80138-UP (-40 deg C) Chassis only: TRANSMISSION PIPING, OIL FILTER (#80138-)
1 2 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 2 11 11 11 12 12 12 14 13 16 17 21 22 22 23 24 10 12 12 12 12 13 14 14 13

Komatsu HD1500-7 S/N 80138-UP (-40 deg C) Chassis only parts catalog PDF

TRANSMISSION PIPING, OIL FILTER (#80138-) (H3310-008001) in HD1500-7 S/N 80138-UP (-40 deg C) Chassis only. Diagram image and parts list.
