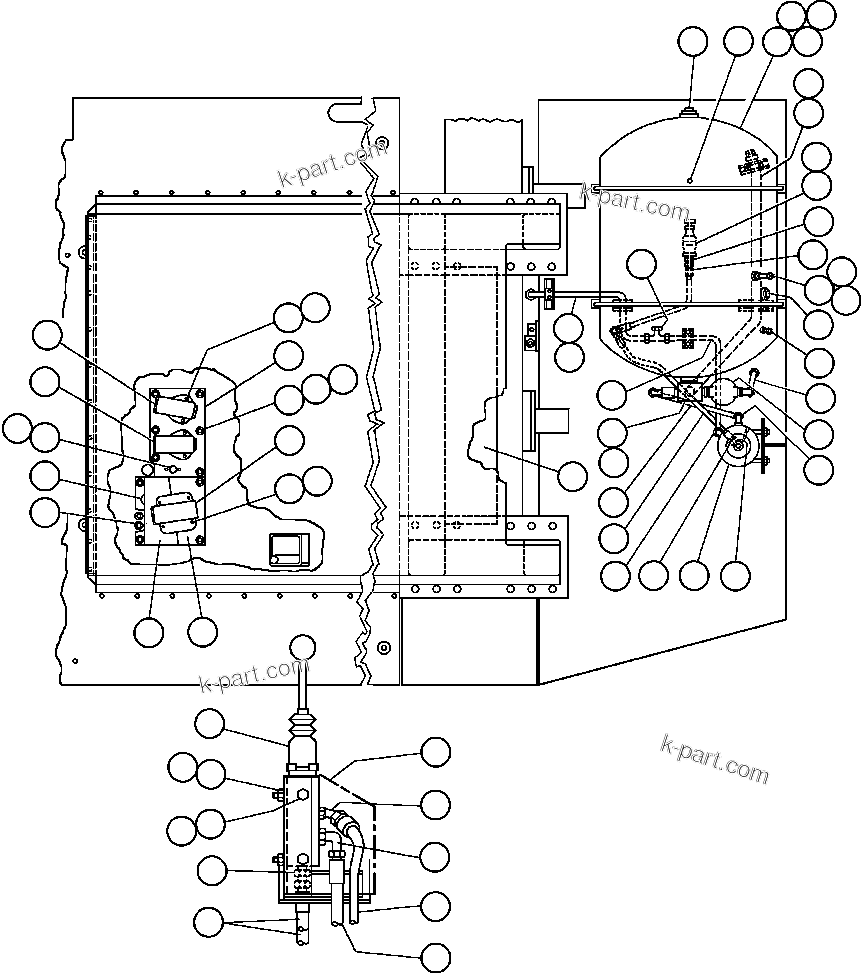

LEFT DECK PIPING - 1 | AFE42-J 630E S/N 32081-32084 MT. LEYSHON

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE42-J 630E S/N 32081-32084 MT. LEYSHON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	C5774	LOCKWASHER - 1/4"	4
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	4
?	TZ6781	BRAKE TREADLE VALVE ASSM (SEE INDEX)	1
?	C0312	LOCKWASHER - 3/8"	10
?	WA0720	FLAT WASHER - 3/8"	10
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	10
?	TZ3021	CONSOLE, FOOT	1
?	C1538	LOCKWASHER - 5/16"	6
?	C1598	CAPSCREW - 5/16" X 1"	6
?	PB8249	ELECTRONIC TREADLE VALVE ASSM - RETARDING	1
?	H8136	CAPSCREW - 1/4" - 20NC X 1/2"	2
?	PB7495	SWITCH, DIMMER	1
?	WA3675	PLUG, BUTTON	1
?	WB0429	FITTING, STRAIGHT	2
?	TX2596	CONSOLE, HALF	1
?	TX2595	CONSOLE, HALF	1
?	PB6752	VALVE, CONTROL	1
?	C1538	LOCKWASHER - 5/16"	2
?	C1639	CAPSCREW - 5/16" - 18NC X 2"	2
?	C5774	LOCKWASHER - 1/4"	2
?	H8136	CAPSCREW - 1/4" - 20NC X 1/2"	2
?	WB0583	ADAPTOR, STRAIGHT	5
?	HA6580	HOSE	2
?	HA5555	HOSE	1
?	HA6376	HOSE	1
?	WB0508	FITTING, ELBOW - 90 DEG	1
?	TZ9121	ORIFICE, FITTING - 45 DEG	1
?	TY0591	COVER	1
?	WA4706	CLAMP	2
?	EB4881	TUBE	1
?	DA2790	HOSE	1
?	HA0659	HOSE	1
?	WB0270	FITTING, ELBOW - 90 DEG	1
?	WB0253	FITTING, ELBOW - 90 DEG	1
?	PB6987	AIR PURIFIER ASSM	1
?	RK0209	KIT, CANISTER REPAIR	1
?	RK0210	KIT, DESSICANT REPAIR	1
?	RK0211	KIT, VALVE REPAIR	1
?	RK0218	THERMOSTAT - 24 VOLT	1
?	TY7595	WIRE	1
?	WB0267	FITTING, ELBOW - 90 DEG	1
?	EB7467	TUBE	1
?	HA0655	HOSE	1
?	WB0458	FITTING, ADAPTOR	1
?	PB4774	VALVE, DRAIN (SEE INDEX)	1
?	VY7326	PIPE, CONNECTOR	1
?	SR1606	VALVE, SAFETY	1
?	SP3874	FITTING, PIPE	1
?	HC1581	NIPPLE, CLOSE	1
?	EB7465	TUBE	1
?	WA4710	CLAMP	2
?	C1523	NUT - 1/2" - 13NC	4
?	C1540	LOCKWASHER - 1/2"	4
?	VL8748	STRAP	2
?	VM3894	AIR TANK	1
?	C5769	PLUG, PIPE	2
?	HC4691	PLUG, PIPE	1
?	WA2569	NUT, CAP	1
?	VW4697	VALVE, TREADLE (THROTTLE)	1
?	TW1026	BLOCK, JUNCTION	1
?	VJ1638	LUBRICATOR	1
?	VJ6798	PLUG, FILL	1
?	SG3867	VALVE, CHECK	1
?	VJ6802	DOME, CLEAR	1
?	RK1876	BOWL KIT	1
?	RK1875	SEAL KIT (CONSISTS OF 3 O-RINGS)	1
?	C2509	PLUG, PIPE	3
?		CABINET, HYD (SEE FIG 30535 & 30536)	1
?	TL3982	HOSE	1
