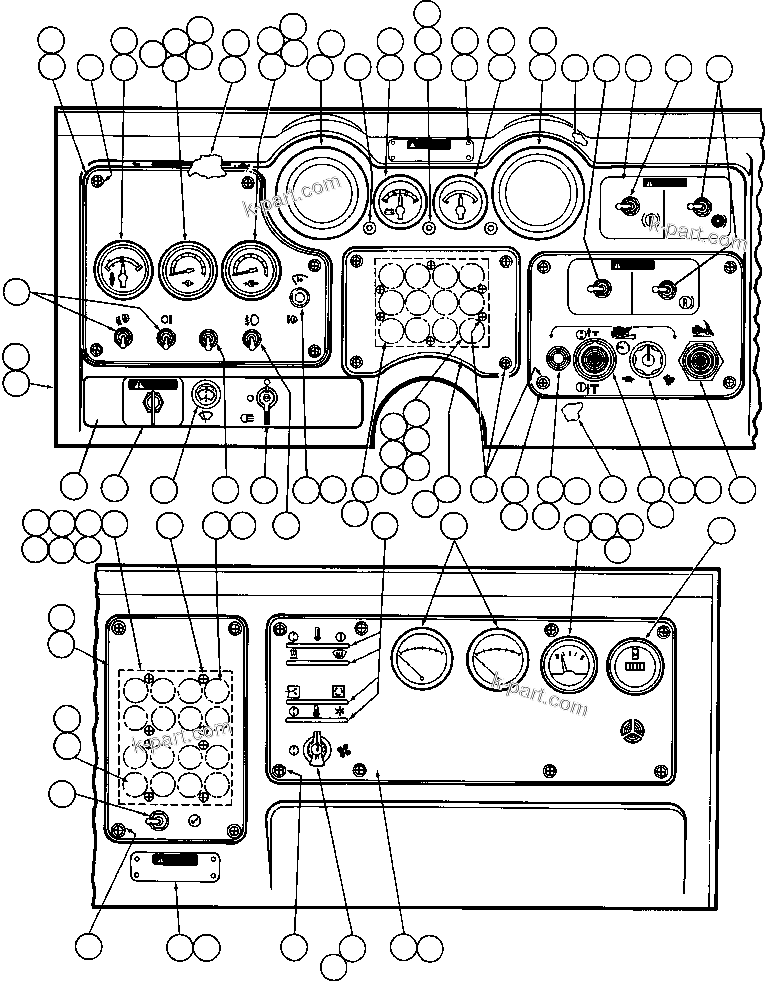

INSTRUMENT PANEL INSTL | AFE42-J 630E S/N 32081-32084 MT. LEYSHON

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE42-J 630E S/N 32081-32084 MT. LEYSHON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB4050	PANEL, INSTRUMENT	1
?	WA4605	PHILLIPS SCREW - #10 - 24NC X 1/2"	9
?	TC0167	SWITCH, TOGGLE	4
?	TX0204	PANEL	1
?	WA9843	PANEL, INSERT	1
?	WA4605	PHILLIPS SCREW - #10 - 24NC X 1/2"	30
?	TA5860	BULB	11
?	PB5223	GAUGE, ENGINE WATER TEMPERATURE	1
?	PB2944	GAUGE, ENGINE OIL PRESSURE	1
?	VD9705	FITTING, TUBE	1
?	R2404	TEE, PIPE	1
?	SG3290	SWITCH, PRESSURE	1
?	PB2942	GAUGE, AIR PRESSURE	1
?		NOT USED THIS APPLICATION	65535
?		NOT USED THIS APPLICATION	65535
?	PB2993	SPEEDOMETER	1
?	PB5074	GAUGE, VOLTMETER (20 - 32V)	1
?	SP8443	BULB	32
?	EB7082	INDICATOR, HIGH BEAM	1
?	WA3528	OVERLAY, LEXAN - 26V WARNING	1
?	DC9822	DRIVE SCREW - 1/8"	8
?	PB6357	GAUGE, AMMETER	1
?	PB8458	TACHOMETER, ELECTRIC (0 - 3000)	1
?	TK6916	PLATE, BACKUP	1
?	EB8250	OVERLAY, LEXAN - BRAKES	1
?	SR8325	SWITCH, TOGGLE	3
?	PB4060	BUTTON, PUSH	1
?	PB5957	KNOB, POTENTIOMETER	1
?	TY0249	RHEOSTAT	1
?	PB6503	BUTTON, PUSH-PULL	1
?	TY0904	WIRE, JUMPER	2
?	VL6234	BULB, LIGHT	1
?	PB6505	SOCKET, YELLOW	1
?	TY0250	PANEL, INSERT	1
?	EC5666	OVERLAY, LEXAN - NO. 3	1
?	TX3052	PANEL	1
?	WA6663	OVERLAY, LEXAN - NO. 2	1
?	WA6497	FILM	1
?	WA6664	FILM, LETTERED	1
?	TN8361	PLATE, BACKER	1
?	TN8358	MANIFOLD - 12 HOLE	1
?	H2643	LOCKWASHER - #10	14
?	VN7121	MACHINE SCREW - #10	14
?	TY7304	HARNESS, LIGHT SOCKET	1
?	TW5117	RHEOSTAT	1
?	PB0529	KNOB	1
?	PB3438	SWITCH	1
?	YA1734	HARNESS, WIRE (CIRCUIT BREAKERS/HEATER) SWITCH/SONALERT	1
?	TK6939	DIODE	2
?	TY9878	CONTROL, ELECTRIC WIPER	1
?	WA4368	OVERLAY, LEXAN - LIGHTS & KEY SWITCH	1
?	VM7105	SWITCH, KEY	1
?	WA6479	FILM, LETTERED	1
?	WA6480	FILM, LETTERED	1
?	TN8360	PLATE, BACKER	2
?	TN8357	MANIFOLD - 8 HOLES	2
?	WA6496	FILM	2
?	TY7303	LIGHT SOCKET ASSM (7 SOCKETS W/ WIRING)	1
?	EB5682	LIGHT SOCKET ASSM (9 SOCKETS W/ WIRING)	1
?		CONTROLS, HEATER (SEE FIG 25156)	1
?	PB6082	GAUGE, VACUUM	2
?	VZ0798	GAUGE, FUEL	1
?	TA6357	RESISTOR	1
?	PB3890	HOURMETER	1
?	TX0210	PANEL	1
?	WA4362	PANEL, INSERT OVERLAY	1
?	VJ8676	SWITCH, HEATER	1
?	VJ8323	KNOB	1
?	TG8744	SWITCH, TOGGLE	1
?	WA4366	OVERLAY, LEXAN - WARNING LIGHTS	1
?	TX3055	PANEL	1
?	WA4588	OVERLAY, LEXAN - NO. 10	1
?	TN8366	BRACKET, BULB	2
?	WA3362	PHILLIPS SCREW - #10	4
?	F9020	NUT - #10	4
?	TW5472	INDICATOR, TURN SIGNAL	2
?	YA2353	HARNESS, WIRE (GAUGES/SWITCH)	1
?	TY3306	WIRE, IGNITION	1
?	EC5667	WIRE, BRAKES	1
?	YA2019	HARNESS, INTERNAL (TB9 TO MAIN HARNESS)	1
