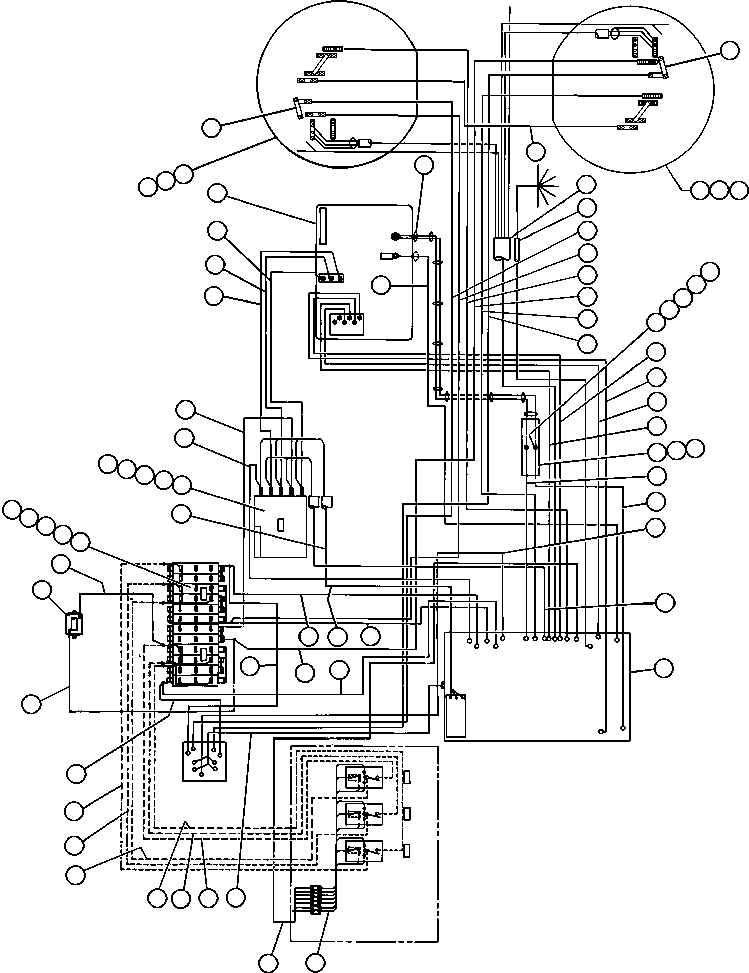

1 |
PB7366
|
ALTERNATOR BLOWER ASSM |
1 |
|
|
|
|
1 |
TL4003
|
SLEEVE |
3 |
|
|
|
|
1 |
VH2584
|
RING, TERMINAL |
3 |
|
|
|
|
1 |
PB5633
|
LUG, TERMINAL |
2 |
|
|
|
|
2 |
PB8505
|
WHEEL, MOTORIZED DRIVE (788HS6) |
2 |
|
|
|
|
3 |
VN3270
|
CAPSCREW - 1 1/4" - 7NC X 4 1/2" |
96 |
|
|
|
|
4 |
WA0366
|
FLAT WASHER - 1 1/4" |
96 |
|
|
|
|
5 |
TK5255
|
BAR, BUS |
2 |
|
|
|
|
6 |
TZ4492
|
COVER, PLATE |
1 |
|
|
|
|
7 |
SH7597
|
CAPSCREW - 1/4" - 20NC X 1/2" |
4 |
|
|
|
|
8 |
DC3584
|
LOCKWASHER - 1/4" |
4 |
|
|
|
|
9 |
VZ2686
|
INSULATOR |
2 |
|
|
|
|
10 |
VG7146
|
CAPSCREW - 1/2" - 13NC X 3/4" |
2 |
|
|
|
|
11 |
VC1387
|
CAPSCREW - 1/2" - 13NC X 1" |
2 |
|
|
|
|
12 |
TR6008
|
FLAT WASHER - 1/2" |
2 |
|
|
|
|
13 |
TR5445
|
LOCKWASHER - 1/2" |
4 |
|
|
|
|
14 |
EC4197
|
CABINET, CONTROL (SEE FIG 30419) |
1 |
|
|
|
|
15 |
EB3442
|
GRID, BLOWN (SEE INDEX) |
1 |
|
|
|
|
16 |
SR7231
|
CAPSCREW - 7/8" - 9NC X 6" |
4 |
|
|
|
|
17 |
WA0363
|
FLAT WASHER - 7/8" |
8 |
|
|
|
|
18 |
VC6293
|
LOCKWASHER - 7/8" |
4 |
|
|
|
|
19 |
VN9693
|
NUT - 7/8" - 9NC |
4 |
|
|
|
|
20 |
PB6489
|
RECTIFIER ASSM |
1 |
|
|
|
|
21 |
TD0789
|
CAPSCREW - 3/8 - 16NC X 1 3/4" |
10 |
|
|
|
|
22 |
TC1231
|
LOCKWASHER - 3/8" |
10 |
|
|
|
|
23 |
TR4436
|
FLAT WASHER - 3/8" |
20 |
|
|
|
|
24 |
TC1233
|
NUT - 3/8" - 16NC |
10 |
|
|
|
|
25 |
PB5049
|
MOTOR, GRID BLOWER |
1 |
|
|
|
|
26 |
TK2399
|
CABLE (74AF) (DRIVE WHEEL TO DRIVE WHEEL) |
1 |
|
|
|
|
27 |
TZ3321
|
CABLE (CONTROL CABINET TO DRIVE WHEELS) |
1 |
|
|
|
|
28 |
|
(NOT USED THIS APPLICATION) |
65535 |
|
|
|
|
29 |
CH1098
|
CABLE (7J1R) (LOAD TEST BOX TO RIGHT WHEEL MOTOR) |
1 |
|
|
|
|
30 |
CH1063
|
CABLE (7J2) (BLOWN GRID TO RIGHT WHEEL MOTOR) |
1 |
|
|
|
|
31 |
TZ3324
|
CABLE (7J9) (CONTROL CABINET TO RIGHT WHEEL MOTOR) |
1 |
|
|
|
|
32 |
CH1066
|
CABLE (7GA1) (BLOWN GRID TO LEFT WHEEL MOTOR) |
1 |
|
|
|
|
33 |
TZ4476
|
CABLE (7J4) (CONTROL CABINET TO LEFT WHEEL MOTOR) |
1 |
|
|
|
|
34 |
CH1097
|
CABLE (7J1L) (LOAD TEST BOX TO LEFT WHEEL MOTOR) |
1 |
|
|
|
|
35 |
TX9888
|
CABLE (74D) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
36 |
JG8745
|
CABLE (71J) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
37 |
JG8742
|
CABLE (75X) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
38 |
TX1905
|
CABLE (71G) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
39 |
TZ5540
|
CABLE (74) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
40 |
TZ4495
|
CABLE (74AA) (CONTROL CABINET TO ALTERNATOR) |
1 |
|
|
|
|
41 |
CH1096
|
CABLE (7J1) (CONTROL CABINET TO LOAD TEST BOX) |
1 |
|
|
|
|
42 |
TZ8293
|
CABLE (CONTROL CABINET TO LOAD TEST BOX) |
1 |
|
|
|
|
43 |
CH0557
|
CABLE (7J16) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
43 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
|
|
44 |
EB2730
|
CABLE (CONTROL CABINET TO RECTIFIER-RD1) |
1 |
|
|
|
|
45 |
CH0570
|
CABLE (7J8) (CONTROL CABINET TO BLOWN GRID) |
1 |
|
|
|
|
46 |
CH0572
|
CABLE (7J2) (CONTROL CABINET TO BLOWN GRID) |
1 |
|
|
|
|
47 |
TY8242
|
CABLE (FILTER PANEL TO RECTIFIER) |
1 |
|
|
|
|
48 |
CH1016
|
CABLE (7J7) (CONTROL CABINET TO BLOWN GRID) |
1 |
|
|
|
|
49 |
CH1643
|
CABLE (7J7) (LOAD TEST BOX TO BLOWN GRID) |
1 |
|
|
|
|
50 |
CH1644
|
CABLE (7J8) (LOAD TEST BOX TO BLOWN GRID) |
1 |
|
|
|
|
51 |
CH1034
|
CABLE (7GA2) (CONTROL CABINET TO RECTIFIER-RD1) |
1 |
|
|
|
|
52 |
CH1035
|
CABLE (7GA1) (BLOWN GRID TO RECTIFIER-RD1) |
1 |
|
|
|
|
53 |
CH0558
|
CABLE (7J18) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
53 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
|
|
54 |
CH0559
|
CABLE (7J32) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
54 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
|
|
55 |
EB2399
|
HARNESS (EXTENDED RANGE) |
1 |
|
|
|
|
56 |
EB2400
|
HARNESS (EXTENDED RANGE) |
1 |
|
|
|
|
57 |
CH1033
|
CABLE (T3) (ALTERNATOR TO RECTIFIER-RD1) |
1 |
|
|
|
|
58 |
CH1032
|
CABLE (T2) (ALTERNATOR TO RECTIFIER-RD1) |
1 |
|
|
|
|
59 |
CH1031
|
CABLE (T1) (ALTERNATOR TO RECTIFIER-RD1) |
1 |
|
|
|
|
60 |
|
CABLE (SUPPLIED W/ ALTERNATOR) |
1 |
|
|
|
|
61 |
|
CABLE (SUPPLIED W/ ALTERNATOR) |
1 |
|
|
|
|
62 |
VS9090
|
CABLE (SUPPLIED W/ GRID BLOWER MOTOR) |
1 |
|
|
|
|
63 |
VS9091
|
CABLE (SUPPLIED W/ GRID BLOWER MOTOR) |
1 |
|
|
|
|
64 |
CH0560
|
CABLE (7J15) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
64 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
|
|
65 |
CH0561
|
CABLE (7J17) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
65 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
|
|
66 |
CH0562
|
CABLE (7J30) (BLOWN GRID TO EXTENDED RANGE |
1 |
|
|
|
|
66 |
|
BRAKE CONTROL CABINET) |
65535 |
|
|
