AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EF9096	BRACKET STR., L.H.	1
?	EF5205	RETAINER	1
?	EF4298	GUARD, MUD	1
?	EF5204	PLATE	1
?	EF5201	GUARD, MUD	1
?	MM0045	CAPSCREW - M12 X 1.75 X 40	37
?	01643-31232	WASHER	37
?	EF5202	GUARD, MUD	2
?	EF5203	RETAINER	2
?	EF5208	RETAINER	1
?	EF9097	BRACKET STR., R.H.	1
?	EF4297	GUARD, MUD	1
?	EF8260	FLAP, MUD	2
?	EF8261	BAR, CLAMP	2
?	MM0039	CAPSCREW - M12 X 1.75 X 35	30
?	EF8262	MOUNT STR., R.H.	1
?	EF8264	MOUNT STR., L.H.	1

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

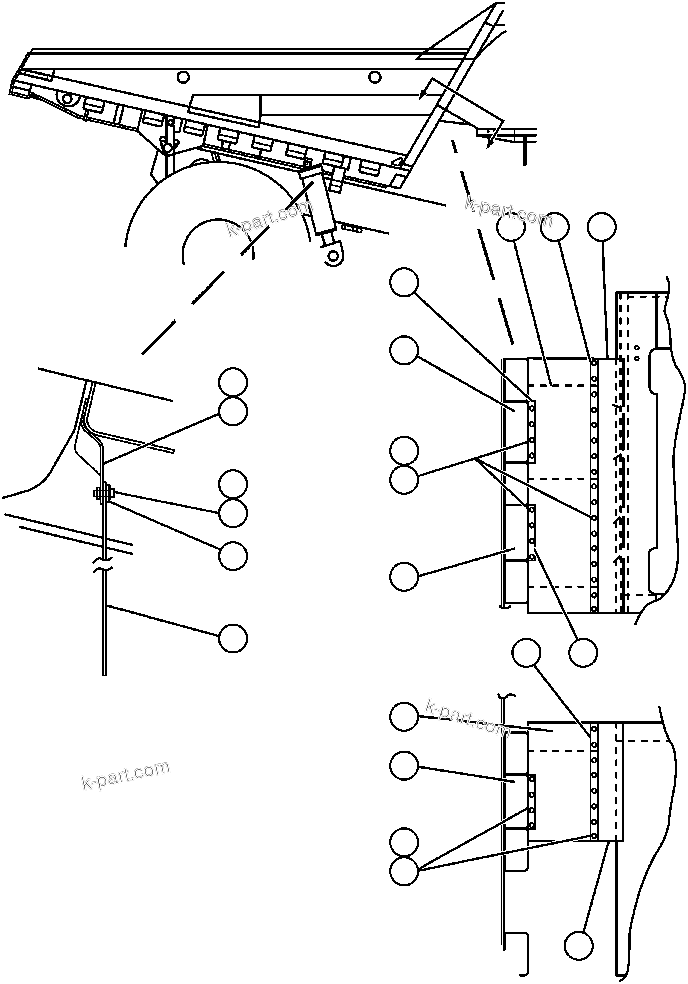

MUD FLAP INSTALLATION (50162) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
