AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF3462	ASSM., CONTROL	1
?	BF3492	PLUG, END	1
?	SV9812	O-RING (1)(2)	2
?	BF3511	SPRING	1
?	BF3509	ORIFICE	1
?	BF3508	ORIFICE	1
?	BF3491	SPOOL	1
?	VE9610	PLUG	1
?	VE9613	O-RING (2)	1
?	BF3490	CAP, END	1
?	BF3500	GASKET	1
?	BF2190	PLUG	1
?	BF3501	CAPSCREW	2
?	VE9608	PLUG	1
?	VE9611	O-RING (2)	1
?	BF3505	PLUG	2
?	BF3513	O-RING (2)	2
?	VE9607	PLUG	1
?	VE9612	O-RING (2)	2
?	BF3507	ORIFICE	1
?	BF3506	ORIFICE	1
?	BF3494	SEAT, RELIEF VALVE	1
?	BF3493	POPPET, RELIEF	1
?	BF3498	SHIM, RELIEF VALVE	1
?	BF3510	SPRING, RELIEF VALVE	1
?	BF3495	BONNET, RELIEF	1
?	BF3496	SCREW, RELIEF VALVE	1
?	BF1329	O-RING (1)(2)	1
?	BF1333	RING, BACK-UP (1)(2)	1
?	BF1693	NUT, JAM	1
?	BF3489	PISTON, BIAS CONTROL	1
?	BF3512	SPRING	1
?	BF3488	PISTON, MAIN CONTROL	1
?	BF0567	O-RING (2)	2
?	BF3503	CAPSCREW	2
?	BF3502	CAPSCREW	4
?	BF3487	HOUSING, CONTROL	1
?	BF3504	PLUG	1
?	BF3499	GASKET (2)	1
?	BF3497	PIN, CONTROL PISTON	1
?	TF5195	O-RING (1)(2)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	65535
?	BF3463	(2) INCLUDED IN BF3463 SEAL KIT.	1

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

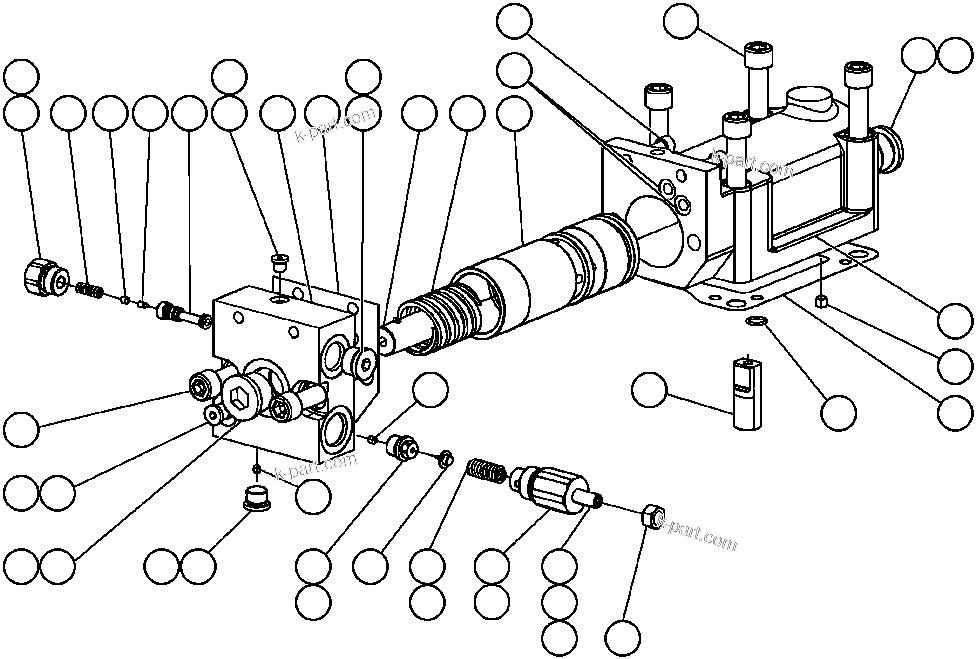

PUMP - STEERING/BRAKE (CONTROL SECTION) PB9522 (50149) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
