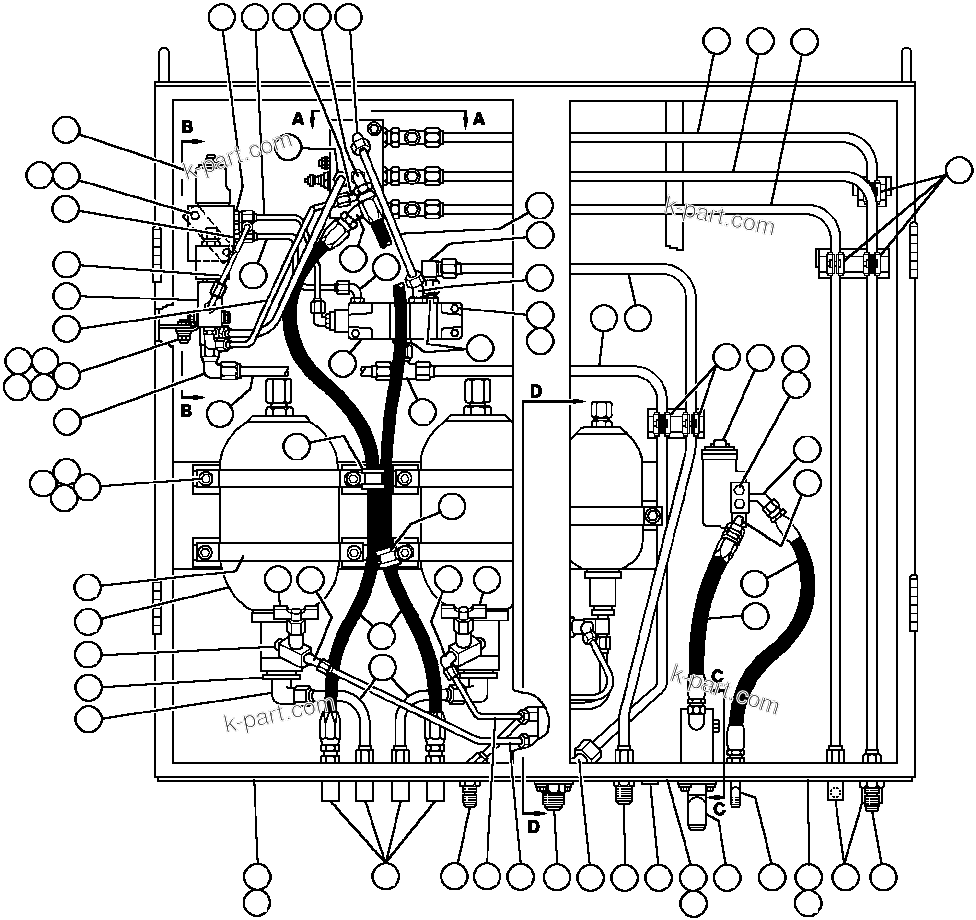

HYDRAULIC CABINET ASSM - 1 | AFE43-AR 685E S/N 32278 BLAIR ATHOL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE43-AR 685E S/N 32278 BLAIR ATHOL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WB0375	FITTING - 90 DEG	2
?	WB0535	FITTING - 45 DEG	2
?	VD1921	CAPSCREW - 1/4" - 20NC X 2 3/4"	3
?	C5774	LOCKWASHER - 1/4"	17
?	WB0583	FITTING	2
?	WB0391	FITTING, TEE	1
?	TX2779	TUBE	1
?	EB4672	TUBE	1
?	TF6925	CLAMP, VINYL	2
?	WB0499	FITTING - 90 DEG	2
?	TX6247	TUBE	1
?	TV6026	CAPSCREW - 1/4" - 20NC X 2"	2
?	EB5855	BRACKET	1
?	EB5851	ANGLE	1
?	TD1809	CAPSCREW - 1/4" - 20NC X 3/4"	1
?	EB5856	VALVE, SOLENOID	1
?	HC9046	SLEEVE	2
?	PB7922	VALVE, SOLENOID	1
?	SP9896	DISCONNECT, KNIFE	2
?	TK6939	DIODE	1
?	VH5020	SOCKET	2
?	VH5031	HOUSING, SOCKET	1
?	EB4675	TUBE	1
?	WB0574	FITTING	2
?	VG1801	CAPSCREW - 1/4" - 20NC X 3 1/2"	2
?	TK6933	VALVE, SOLENOID	1
?	PB5566	VALVE, SOLENOID (SEE INDEX)	1
?	TK0253	VARISTOR	1
?	TK6932	HOUSING, VARISTOR	1
?	VH2930	TERMINAL, CONNECTOR	2
?	TX2781	TUBE	1
?	EB4674	TUBE	1
?	WB0581	FITTING	2
?	TX3162	TUBE	1
?	TX3520	TUBE	1
?	EB6834	TUBE	1
?	TZ4621	TUBE	1
?	TZ4622	TUBE	1
?	WA2753	CLAMP, TUBE	5
?	VW5504	VALVE, GOVERNOR (SEE INDEX)	1
?	SR6301	CAPSCREW - 1/4" - 20 NC X 2 3/4"	2
?	WB0282	FITTING - 90 DEG	1
?	WB0283	FITTING - 90 DEG	1
?	VM4123	HOSE	1
?	VM4215	HOSE	1
?	WB0443	FITTING, BULKHEAD - 90 DEG	6
?	WB0430	FITTING, BULKHEAD	2
?	WB0449	FITTING, TEE	1
?	WB0351	FITTING	1
?	WA4924	PLATE, IDENTIFICATION	1
?	R1073	DRIVE SCREW	8
?	WA4598	PLATE, IDENTIFICATION	1
?	121077	PLUG, BUTTON	3
?	WB0289	FITTING - 90 DEG	1
?	WB0470	FITTING	1
?	TX3171	TUBE	1
?	TX3515	TUBE	1
?	WB0436	FITTING, BULK HEAD - 45 DEG	1
?	WA4596	PLATE, IDENTIFICATION	1
?	WB0255	FITTING, ELBOW - 90 DEG	1
?	TX2792	TUBE	2
?	HA5739	HOSE	2
?	WB0284	FITTING, ELBOW - 45 DEG	1
?	PB2969	VALVE, BLEED DOWN	2
?	WB0268	FITTING, ELBOW - 90 DEG	2
?	SP4879	BUSHING, REDUCING	2
?	WA4560	FITTING, PIPE	2
?	VD2414	ACCUMULATOR - 1 GALLON (SEE INDEX)	2
?	TX6924	CLAMP	4
?	H3460	CAPSCREW - 1/4:" - 20NC X 3 1/2"	8
?	C1546	FLATWASHER - 1/4"	8
?	PB6052	NUT, SPRING	8
?	PB8775	PILOT CONTROL VALVE ASSM (SEE INDEX)	1
