HOIST CYLINDER ASSM (ED5205) | AFE43-AR 685E S/N 32278 BLAIR ATHOL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE43-AR 685E S/N 32278 BLAIR ATHOL

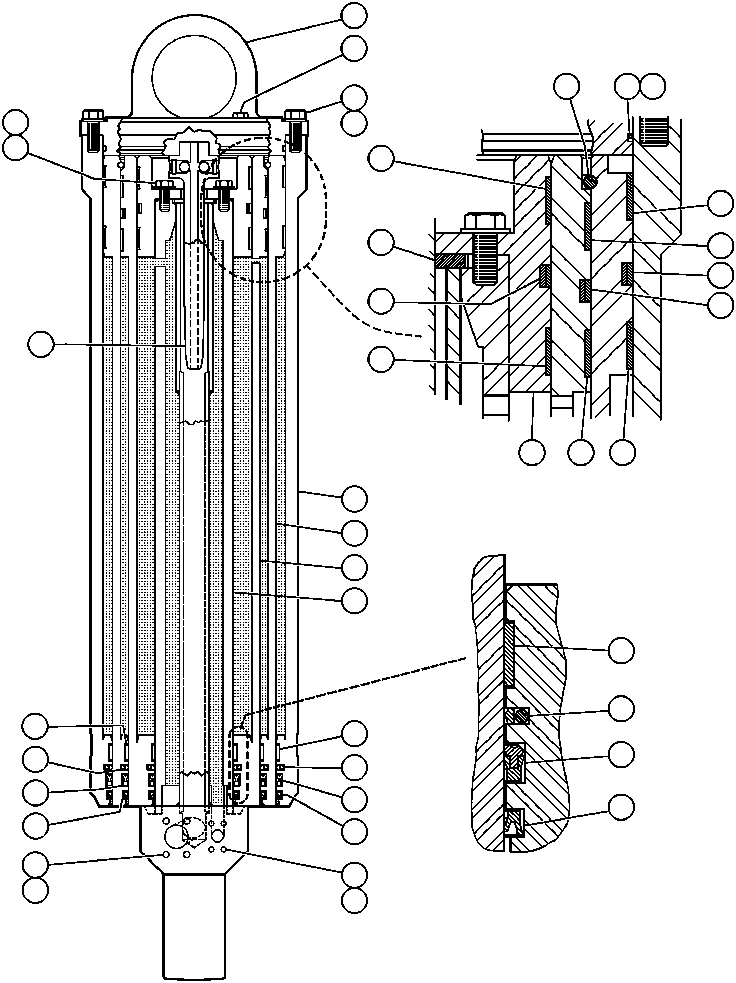

8 1 2 3 4 32 5 6 37 36 33 9 7 11 34 33 38 35 37 36 10 12 13 14 15 21 23 24 31 30 20 22 28 26 18 19 29 27 16 17 25

#	Part Number	Partname	Quantity
1	TZ5518	HEAD, CYLINDER	1
2	VM2202	PLUG, VENT	1
3	VN9066	CAPSCREW - 3/4" - 10NC X 2"	18
4	C1542	LOCKWASHER - 3/4"	18
5	WA0277	SEAL, O-RING	1
6	WA1277	RING, BACKUP	1
7	WA0839	CAPSCREW - 5/8" - 11NC X 1 1/2"	12
8	ED5207	PLATE	1
9	TY1503	SEAL	1
10	ED5224	RETAINER, BEARING	1
11	ED5213	QUILL ASSM	1
11	EB8590	PLUG	2
11	ED5210	QUILL	1
11	722187	POPPET, BALL	2
12	TZ5520	HOUSING	1
13	TZ6903	TUBE - 10.50	1
14	TZ6352	TUBE - 8.50	1
15	ED5202	ROD, EYE	1
16	WA2702	COVER, FLANGE HEAD	1
17	H8524	CAPSCREW - 3/8" - 16NC X 5/8"	4
18	WA2704	COVER, FLANGE HEAD	1
19	C1611	CAPSCREW - 1/2" - 13NC X 3/4"	4
20	PB6551	BEARING - 8.50 (2)	1
21	PB6545	BEARING - 5.00 (1)	1
22	PB6552	SEAL, BUFFER - 8.50 (2)	1
23	PB6546	SEAL, BUFFER - 5.00 (1)	1
24	PB6547	SEAL, ROD - 5.00 (1)	1
25	PB6548	WIPER, ROD - 5.00 (1)	1
26	PB6554	WIPER, ROD - 8.50 (2)	1
27	PB6560	WIPER, ROD - 10.50 (3)	1
28	PB6553	SEAL, ROD - 8.50 (2)	1
29	PB6559	SEAL, ROD - 10.50 (3)	1
30	PB6558	SEAL, BUFFER - 10.50 (3)	1
31	PB6557	BEARING - 10.50 (3)	1
32	PB6628	SNAP RING (2)	1
33	PB6549	BEARING - 7.38 (1)	2
34	PB8613	SEAL - 7.38 (1)	1
35	PB8615	SEAL - 9.50 (2)	1
36	PB6555	BEARING - 9.50 (2)	2
37	PB7444	BEARING (3)	2
38	PB8618	SEAL - 11.75	1
NS\|42	TZ1083	NOTE: (1) INCLUDED IN TZ1083 HOIST CYLINDER SEAL KIT.	65535
NS\|43		(STAGE 3)	65535
NS\|44	TZ1103	(2) INCLUDED IN TZ1103 HOIST CYLINDER SEAL KIT.	65535
NS\|45		(STAGE 2)	65535
NS\|46	TZ1118	(3) INCLUDED IN TZ1118 HOIST CYLINDER KIT.	65535
NS\|47		(STAGE 1)	65535
