REAR LUBRICATION GROUP | AFE43-AR 685E S/N 32278 BLAIR ATHOL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE43-AR 685E S/N 32278 BLAIR ATHOL

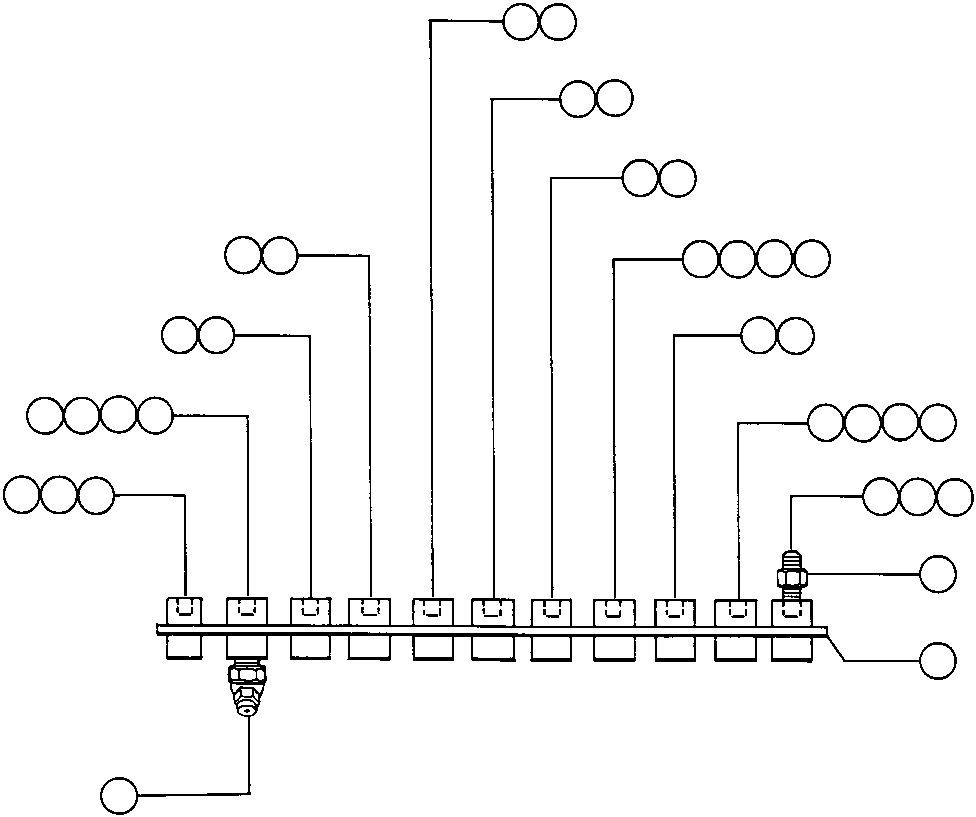

21 22 21 22 19 20 17 18 13 14 15 16 20 19 10 9 8 7 4 5 6 11 12 7 8 9 4 5 10 6 3 2 1

#	Part Number	Partname	Quantity
1	R4186	FITTING, GREASE	11
2	TW2611	COUPLING	1
3	SV7053	ADAPTOR, STRAIGHT	11
4	HA9410	HOSE (TO TOP OF HOIST CYLINDERS)	2
5	SV7053	ADAPTOR, STRAIGHT (AT TOP OF HOIST CYLINDERS)	2
6	VZ4843	STRAP, TIE	2
7	HA9442	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
8	VH0596	ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
9	DC5608	NIPPLE, CLOSE (AT BOTTOM OF HOIST CYLINDERS)	2
10	C1231	COUPLING, PIPE (AT BOTTOM OF HOIST CYLINDERS)	2
11	HA9439	HOSE (TO DRIVE AXLE PIVOT PIN)	1
12	DL2660	ELBOW - 45 DEG	1
13	HA9432	HOSE (TO FRONT OF ANTI-SWAY BAR)	1
14	VH0596	ELBOW - 90 DEG (AT LEFT FRONT OF ANTI-SWAY BAR)	1
15	C1231	COUPLING, PIPE (AT LEFT FRONT OF ANTI-SWAY BAR)	1
16	CD3705	NIPPLE, LONG (AT LEFT FRONT OF ANTI-SWAY BAR)	1
17	HA0511	HOSE (TO RIGHT REAR OF ANTI-SWAY BAR)	1
18	VH0596	ELBOW - 90 DEG (AT RIGHT REAR OF ANTI-SWAY BAR)	1
19	HA0511	HOSE (TO TOP OF REAR SUSPENSION)	2
20	VH0596	ELBOW - 90 DEG (AT TOP OF REAR SUSPENSION)	2
21	HA9408	HOSE (TO BODY PIVOT PINS)	2
22	DL2660	ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
