Diagram image 1 of 3

PC8000-11 S/N 12118

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-11 S/N 12118

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-11 S/N 12118

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	994 848 40	Drive gear box assy.	1
?	319 571 99	Bolt	16
?	806 326 73	Cover	1
?	509 229 98	Shaft seal	2
?	518 884 98	Bolt	44
?	797 984 73	Support ring	1
?	769 981 73	Roller bearing	1
?	798 065 73	Planetary carrier assy. fig-nos: 76-87	1
?	414 012 40	O-ring	5
?	360 524 99	Ball bearing	1
?	506 253 98	Supporting disk	1
?	342 688 99	Circlip	1
?	806 329 73	Sun gear shaft	1
?	501 404 98	Roller bearing	1
?	797 985 73	Ring gear	1
?	501 532 98	Plug	4
?	339 796 99	Seal ring	4
?	313 267 99	Plug	6
?	339 907 99	Seal ring	7
?	806 331 73	Support ring	1
?	313 508 99	Bolt	1
?	518 885 98	Bolt	47
?	509 230 98	Stud	10
?	340 471 99	Washer	10
?	332 340 99	Nut	10
?	806 332 73	Planetary carrier assy fig-nos: 70-75	1
?	806 333 73	Sun gear shaft	1
?	806 334 73	Disc	1
?	342 672 99	Circlip	1
?	806 335 73	Ring gear	1
?	806 336 73	Support ring	1
?	360 582 99	Ball bearing	2
?	806 337 73	Spur wheel	1
?	806 338 73	Spur wheel	1
?		Housing (not available)	1
?	319 480 99	Bolt	35
?	319 155 99	Bolt	24
?	806 339 73	Cover	1
?	806 340 73	Cover	1
?	004 167 98	O-ring	1
?	361 299 99	Roller bearing	2
?	806 341 73	Pin	1
?	502 100 98	Shaft seal	8
?	500 152 98	O-ring	2
?	313 181 99	Plug	4
?	339 879 99	Seal ring	4
?	806 342 73	Cap	2
?	806 343 73	Gasket	2
?	307 753 99	Bolt	12
?	806 344 73	Dipstick	1
?		Bolt	24
?		Brake	2	991-1654
?	342 570 99	Circlip	4
?		Cam	2
?	505 880 98	O-ring	2
?	799 943 73	Seal ring	2
?	342 686 99	Circlip	2
?	360 570 99	Ball bearing	4
?	806 347 73	Drive shaft	2
?	313 395 99	Plug	1
?	339 985 99	Seal ring	1
?	501 716 98	Washer	44
?	806 348 73	Planetary carrier	1
?	806 349 73	Disc	1
?	806 350 73	Planetary, is only deliverable as set amount (=1 pieces)	1
?		Planetery is no more available seperatly	-2
?	342 708 99	Circlip	6
?	362 510 99	Roller bearing	3
?	342 582 99	Circlip	3
?	769 984 73	Planetary carrier	1
?	806 352 73	Planetary	3
?	518 886 98	Roller bearing	6
?	342 705 99	Circlip	6
?	806 353 73	Intermediate ring	3
?	515 913 40	Stop washer	6
?	342 682 99	Circlip	3
?	769 986 73	Planetary shaft	3
?	342 714 99	Circlip	1
?	806 355 73	Race	1
?	517 822 98	O-ring	1
?	797 728 73	Shaft washer	3
?	763 787 73	Plug	2
?	799 349 73	Seal kit consist. of pos. 4,9,17,19,40,43,44,46,48,55,56,86	1
?	799 350 73	Bearing kit consist. of pos. 7,10,14,32,41,73,78	1

Komatsu PC8000-11 S/N 12118 parts catalog PDF

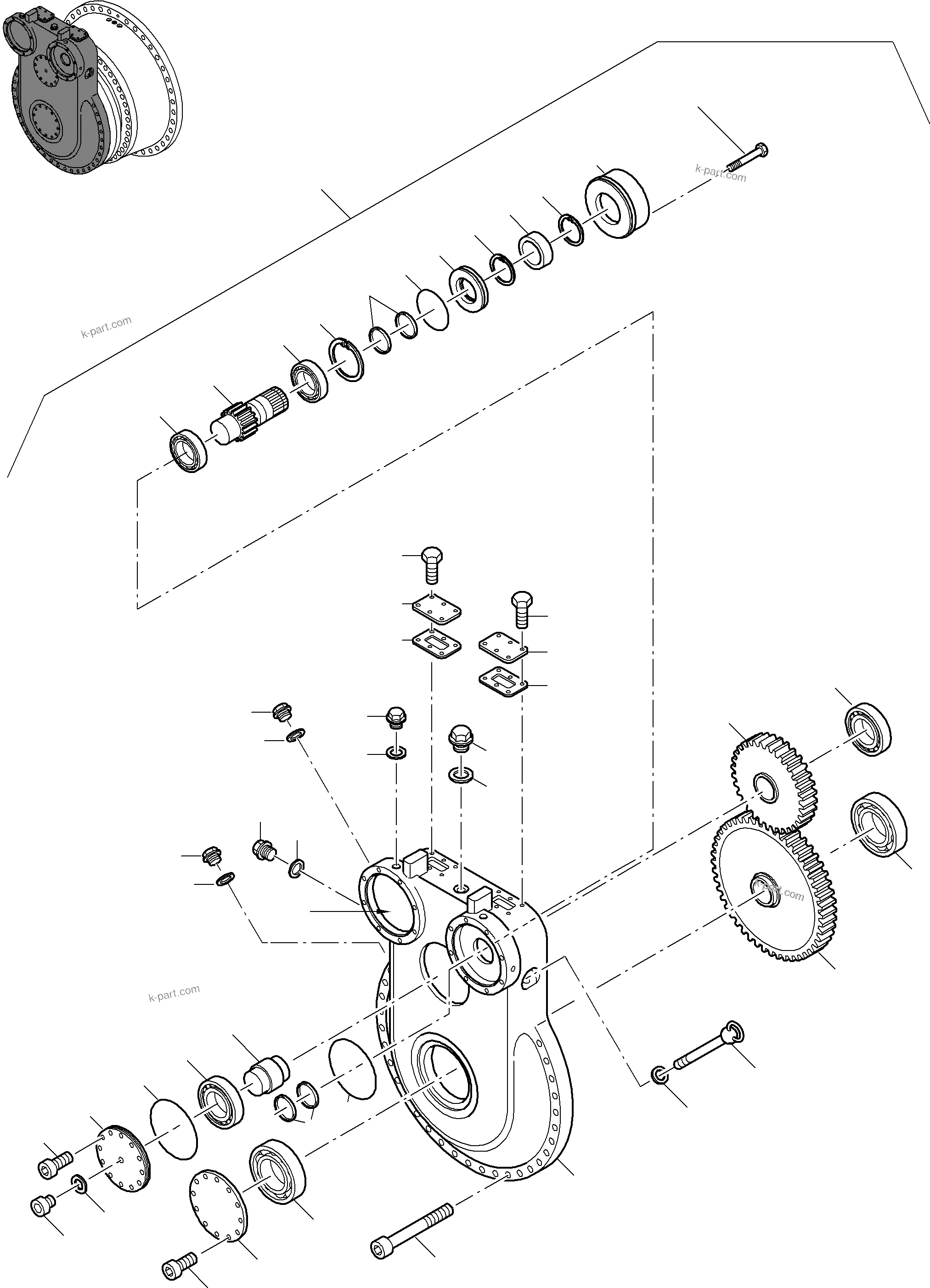

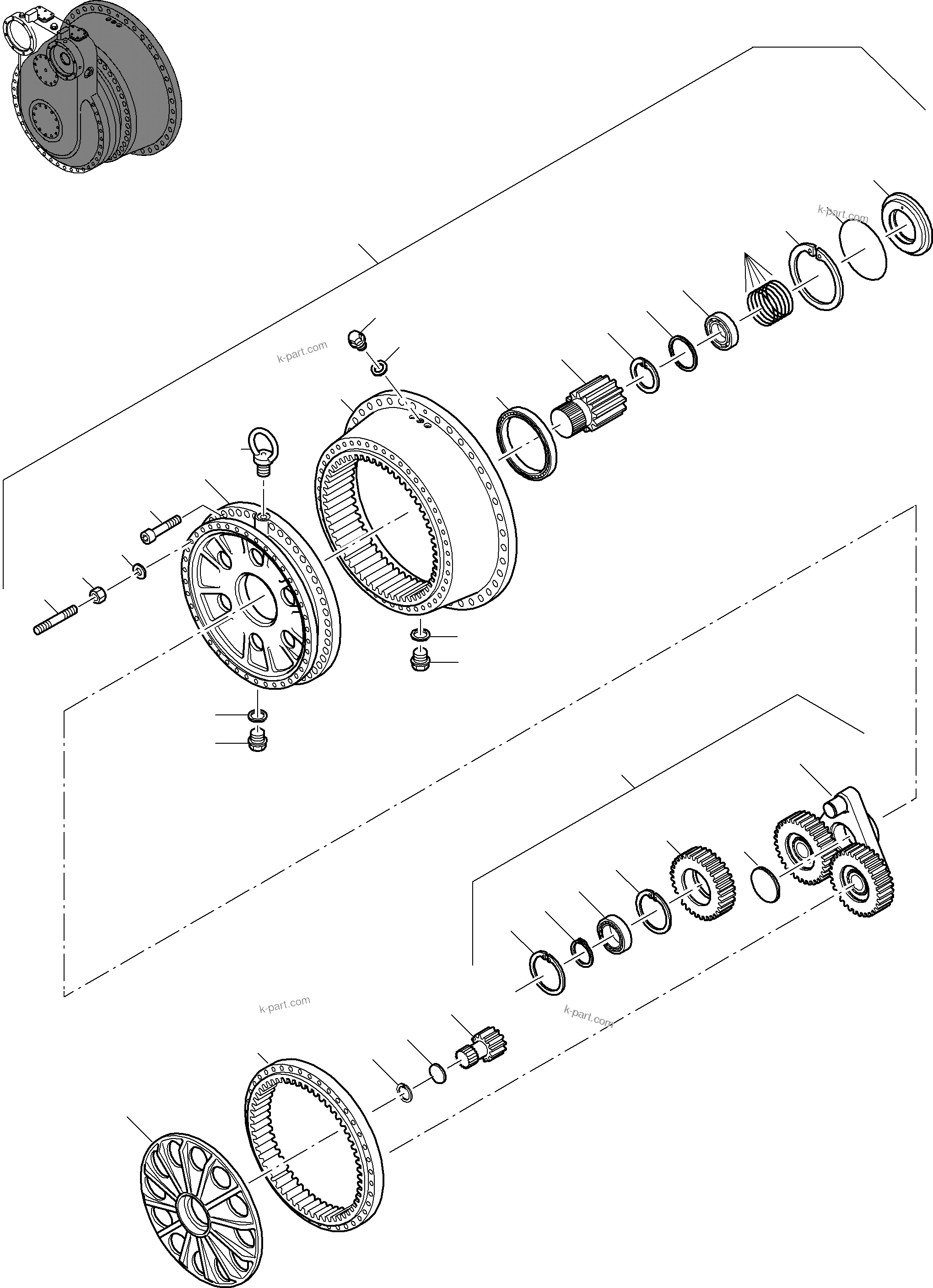

DRIVE GEAR BOX (991-1653) in PC8000-11 S/N 12118. Diagram image and parts list.
