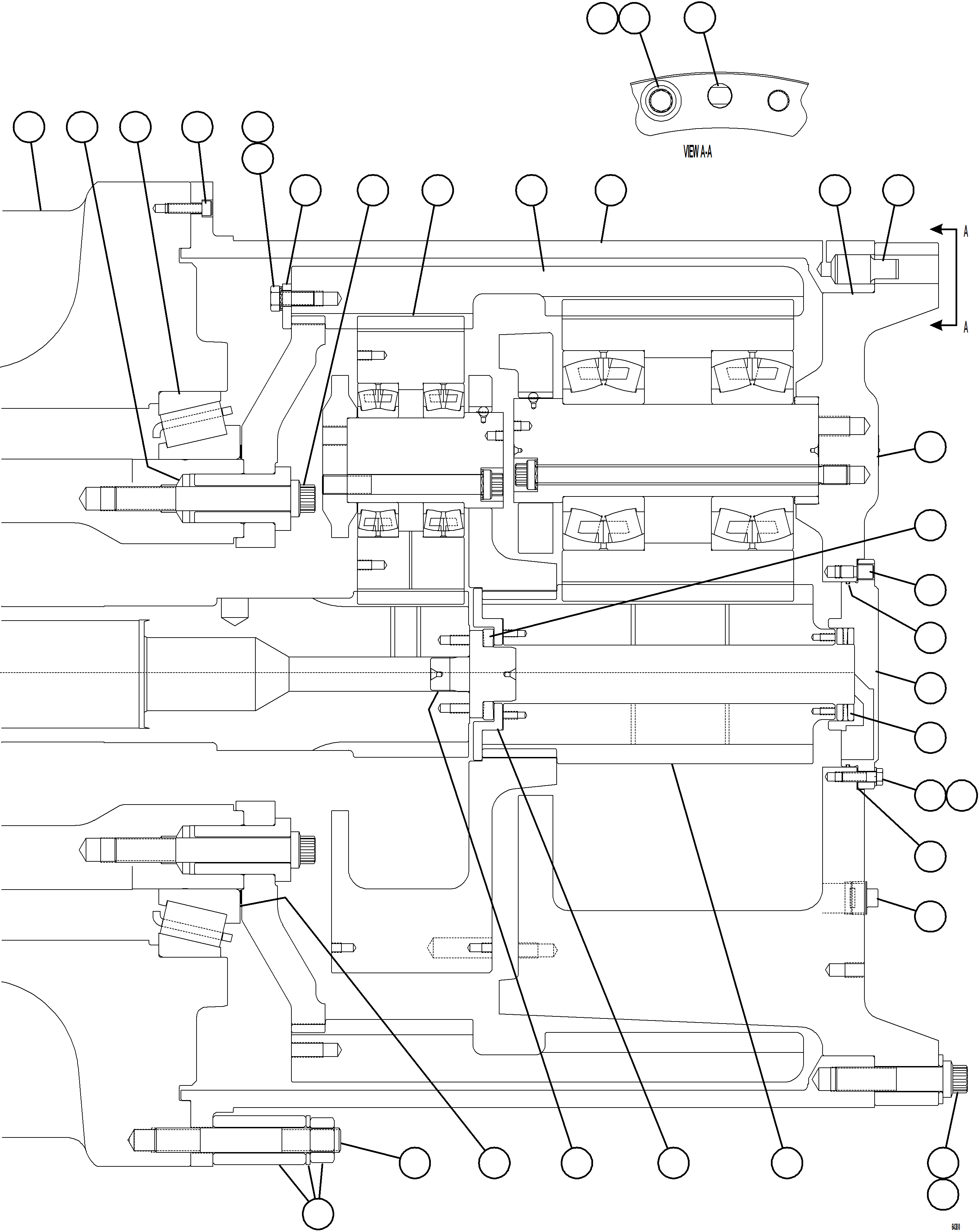

TRANSMISSION 2/2 58F-30-00190 | AFE78-X 930E-5 S/N A40089 IOCC

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE78-X 930E-5 S/N A40089 IOCC

24 25 13 1 4 7 9 8 11 10 13 14 16 19 18 17 20 21 23 22 24 26 29 28 25 30 31 27 15 12 3 2 5 6

#	Part Number	Partname	Quantity
1	58F-30-00090	HUB, WHEEL	1
2	GE0896	BUSHING	16
2	58E-00-01540	LUBRICANT, DRY FILM	-1
3	GE0056	BEARING, ROLLER (2)/(4)/(5)	1
4	GE0069	CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 1 3/4" (2)	18
5	TD7882	CAPSCREW - 3/4" - 10NC X 1 3/4" (2)/(5)	16
6	BF4617	FLAT WASHER - 3/4"	16
7	GE0895	PLATE, CLAMP	8
8	58B-98-10700	CAPSCREW, 12 PT - 1 1/4" - 12NF X 9" (2)/(5)	16
9	GE1315	CARRIER ASSEMBLY - HIGH SPEED	1
10	58B-98-10100	GEAR, RING	1
11	XA4489	TUBE, TORQUE	1
12	VJ9656	ADHESIVE, RTV	-1
13	GE0067	PIN, LOCATING	1
14	58F-22-01530	CARRIER ASSEMBLY - LOW SPEED	1
15	GE1764	WASHER, THRUST (2)/(5)	1
16	GE1353	PIN, ALIGNMENT	1
17	GE0887	O-RING (2)/(5)	1
18	GE1346	COVER, LOW SPEED CARRIER	1
19	GE1489	WASHER, THRUST (2)/(5)	1
20	GE0897	SHIM SET (2)/(5)	1
20	GE0898	SHIM - .015"	12
20	GE0899	SHIM - .030"	6
21	VE5185	FLAT WASHER - 1/2"	11
22	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4" (2)	11
23	GE0086	PLUG, PIPE (2)	8
24	GE0449	FLAT WASHER - 1 1/4"	35
25	GE0068	CAPSCREW, 12 PT - 1 1/4" - 12NF X 5 1/2" (5)	35
26	GE1288	GEAR, SUN PINION - LOW SPEED (5)	1
27	GE1293	RETAINER, HIGH SPEED THRUST BEARING (1)	1
28	GE1820	PLUG, SUN PINION	1
29	GE0078	SHIM SET (2)/(5)	1
29	GE0079	SHIM - .005"	5
29	GE0080	SHIM - .007"	4
29	GE0081	SHIM - .229"	4
30	EM5451	STUD, WHEEL (5)	54
31	GE0535	BLOCK (3)	9
31	GE0449	FLAT WASHER - 1 1/4" (3)	9
31	GE0536	NUT - 1 1/4" - 7NC (3)	9
NS\|40		NOTE: (1) PART OF GE1315 HIGH SPEED CARRIER ASSEMBLY.	-1
NS\|41	58F-WM-AK011	(2) INCLUDED IN 58F-WM-AK011 TRANSMISSION	-1
NS\|42		OVERHAUL KIT.	-1
NS\|43		(3) USED FOR SHIPPING ASSEMBLY ONLY OR DURING	-1
NS\|44		OVERHAUL AND STORAGE OF WHEEL MOTOR.	-1
NS\|45	58F-WM-AK020	(4) INCLUDED IN 58F-WM-AK020 TRANSMISSION BEARING KIT.	-1
NS\|46	58F-WM-AK060	(5) INCLUDED IN 58F-WM-AK060 WHEEL MOTOR OVERHAUL KIT.	-1
