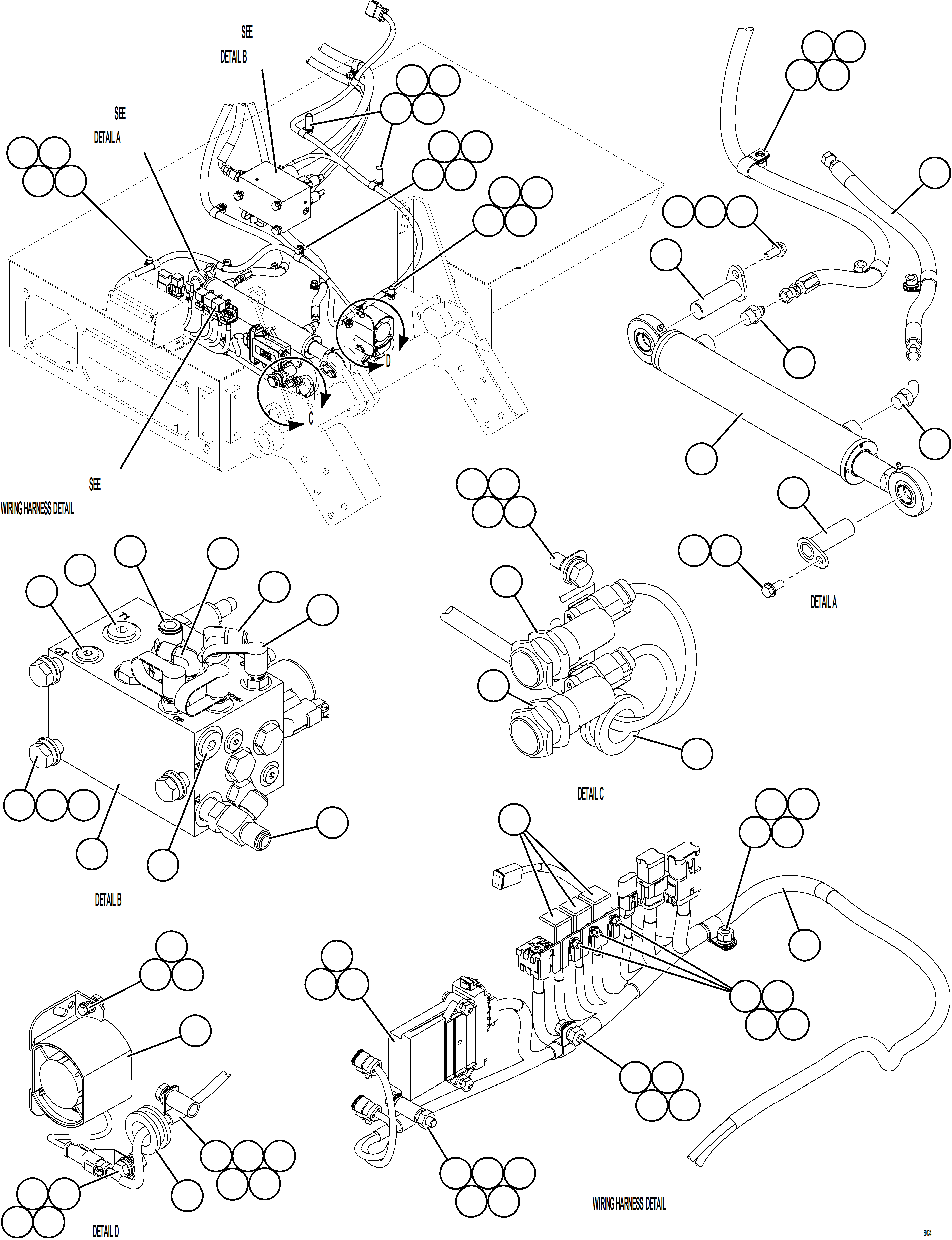

PLATFORM ASSEMBLY 2/2 | AFE78-X 930E-5 S/N A40089 IOCC

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
1	58F-06-02852	HARNESS, WIRING - HYDRAULIC LADDER	1
2	MM0713	FLAT WASHER, HARDENED - M10	1
3	WB0581	FITTING, STRAIGHT	1
4	WB1304	CLAMP, CUSHIONED - 9/16"	7
5	MM0471	LOCKWASHER - M10	15
6	MM0461	FLAT WASHER - M10	16
7	MM0178	NUT - M10 X 1.50	10
8	WB3098	CLAMP, CUSHIONED - 3/8"	1
9	MM0605	CAPSCREW - M10 X 1.50 X 25	8
10	58E-60-12010	MANIFOLD ASSEMBLY (SEE INDEX)	1	64461
11	EM1398	SPACER	2
12	58B-06-20020	BRACKET	2
13	58D-06-11101	CONTROLLER, HYDRAULIC LADDER	1
14	MM0585	CAPSCREW - M6 X 1.00 X 35	2
15	56B-06-15610	SWITCH, PROXIMITY	2
16	WB3097	CLAMP, CUSHIONED - 1/2"	1
17	VY0876	GROMMET	2
18	58E-06-08400	HORN	1
19	MM0583	CAPSCREW - M6 X 1.00 X 25	2
20	MM0469	LOCKWASHER - M6	2
21	MM0711	FLAT WASHER, HARDENED - M6	4
22	08193-21012	CLIP	1
23	MM0611	CAPSCREW - M10 X 1.50 X 60	2
24	WB1300	CLAMP, CUSHIONED - 5/8"	3
25	58E-06-10020	RELAY	5
26	MM0351	MACHINE SCREW - M5 X 0.8 X 20	5
27	VC5344	FLAT WASHER - #10	10
28	MM0379	LOCKWASHER, EXTERNAL TOOTH - M5	5
29	MM0373	NUT - M5 X 0.8	5
30	MM0606	CAPSCREW - M10 X 1.50 X 30	1
31	HA6442	HOSE	1
32	WB0582	FITTING, STRAIGHT	1
33	WB0536	FITTING, ELBOW - 45 DEG	1
34	WB0557	FITTING, TEE	1
35	58F-60-00500	CYLINDER (1)	1
36	PB6769	COUPLING, MALE	3
36	162144	CAP, DUST	3
36	TL3995	O-RING	3
37	WA4780	PLUG, O-RING	2
38	WB0584	FITTING, STRAIGHT	1
39	MM0619	CAPSCREW - M12 X 1.75 X 35	3
40	MM0472	LOCKWASHER - M12	3
41	MM0462	FLAT WASHER - M12	3
42	WA4779	PLUG, O-RING	1
43	WB0505	FITTING, ELBOW - 90 DEG	1
44	58F-54-40260	PIN	2
45	WB1303	CLAMP, CUSHIONED - 3/4"	3
NS\|48	58F-60-41200	NOTE: (1) USE 58F-60-41200 SEAL KIT FOR SERVICE.	-1
