AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	MM0470	LOCKWASHER - M8	4
?	MM0604	CAPSCREW - M10 X 1.50 X 20	8
?	MM0615	CAPSCREW - M10 X 1.50 X 100	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	2
?	MM0469	LOCKWASHER - M6	4
?	58F-06-21160	HARNESS, WIRING - DEF	1
?	58F-54-07501	BRACKET	1
?	EM8447	PLATE, BENT	2
?	MM0606	CAPSCREW - M10 X 1.50 X 30	13
?	MM0461	FLAT WASHER - M10	56
?	WB1301	CLAMP, CUSHIONED - 1/4"	5
?	MM0178	NUT - M10 X 1.50	20
?	58E-06-21340	HARNESS, WIRING - DEF DOSER	2
?	MM0585	CAPSCREW - M6 X 1.00 X 35	4
?	MM0594	CAPSCREW - M8 X 1.25 X 25	4
?	58F-02-00140	MOUNT, LONG	2
?	WB3093	CLAMP, CUSHIONED - 1"	20
?	WB1304	CLAMP, CUSHIONED - 9/16"	4
?	MM0611	CAPSCREW - M10 X 1.50 X 60	3
?	MM0471	LOCKWASHER - M10	48
?	WB3098	CLAMP, CUSHIONED - 3/8"	2
?	MM0712	FLAT WASHER, HARDENED - M8	4
?	MM0711	FLAT WASHER, HARDENED - M6	4
?	EL3892	SPACER	4
?	EM1393	SPACER	1

Komatsu AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN parts catalog PDF

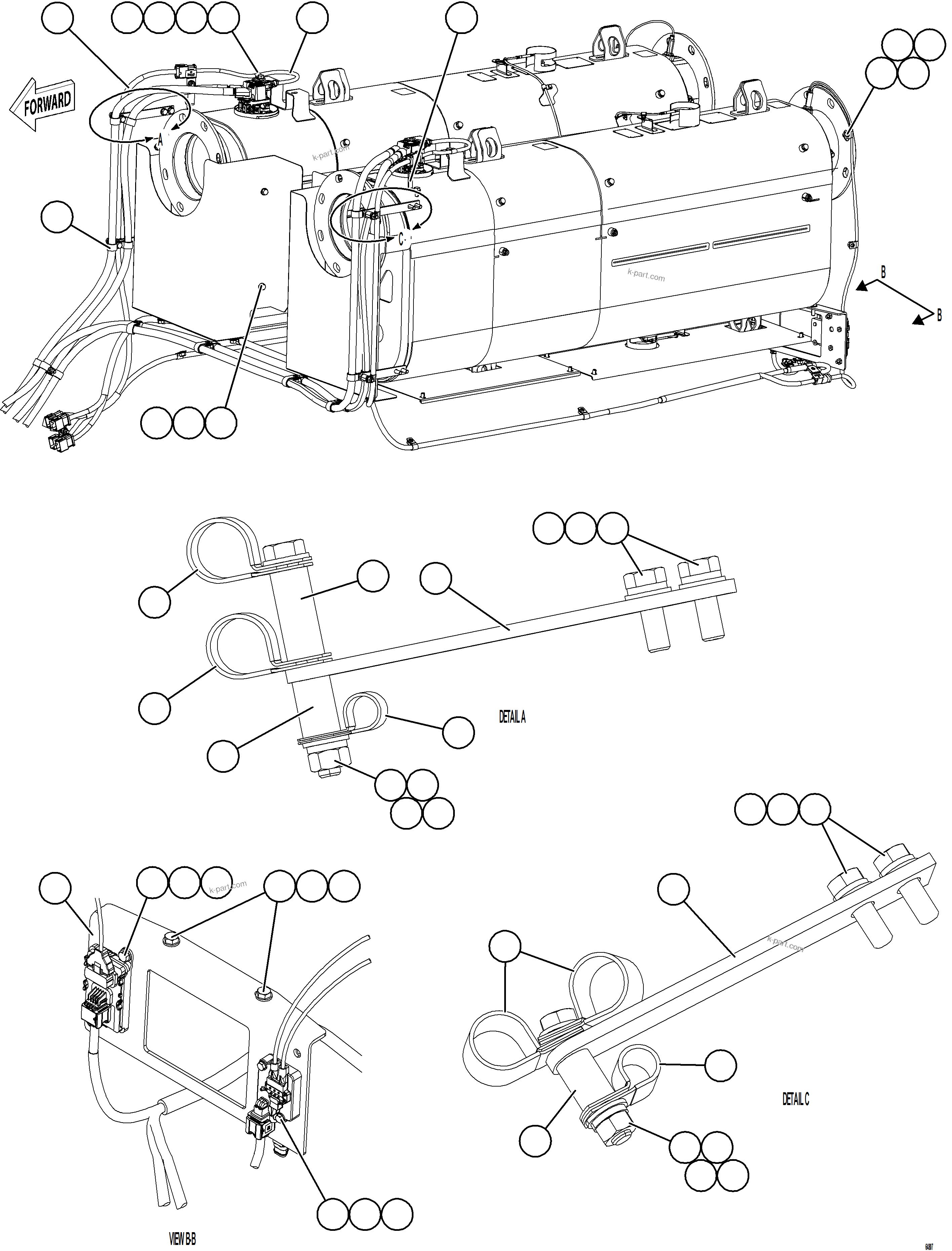

DEF SYSTEM WIRING 2/3 (64807) in AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN. Diagram image and parts list.
