AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN

18 17 22 23 24 16 19 14 13 11 12 32 31 33 35 8 9 10 34 7 5 6 4 3 2 1 36 26 39 37 38 15 20 21 12 27 19 11 19 19 29 28 25 41 42 40 30

#	Part Number	Partname	Quantity
1	GE0128	COLLAR (INNER)	1
2	GE0127	BEARING (2)/(3)/(4)	1
3	GE0126	COLLAR (OUTER)	1
4	GE0125	CAP, BEARING	1
5	VE5185	FLAT WASHER - 1/2" (1)	8
6	VE4518	CAPSCREW - 1/2" - 13NC X 1 1/2" (1)	8
7	GE0124	FRAME, HEAD	1
8	58E-00-01570	WASHER - 5/16"	2
9	GE0628	CAPSCREW - 5/16" - 18NC X 2 1/4"	2
10	GE0142	CEMENT	-1
11	VE3027	FLAT WASHER - 3/8"	27
12	VE4747	NUT	14
13	58F-22-01470	TAPE, GLASS	1
14	GE0112	RING, BUS (TC)	1
15	VE4515	FLAT WASHER - 3/8"	-1
16	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	3
17	GE0137	CLAMP	1
18	GE1367	CONNECTION, STRAP	3
19	VE4701	CAPSCREW - 3/8" - 16NC X 3"	2
20	VE7272	SEALANT	-1
21	GE0136	BLOCK	1
22	VE4783	PUTTY	-1
23	58F-22-01460	TAPE, FIBERGLASS	-1
24	58F-22-01450	TAPE, POLYESTER	-1
25	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
26	BF4421	CAPSCREW - 3/8" - 16NC X 1" (1)	8
27	XA4136	FLAT WASHER, HARDENED - 5/8"	-1
28	VE4830	CAPSCREW - 5/8" - 11NC X 2"	-1
29	VE4687	LOCKWASHER - 3/8"	5
30	GE0113	RING, BUS (TB)	1
31	GE0114	RING, BUS (TA)	1
32	GE0115	RING, BUS (N)	1
33	58F-22-01440	DEFLECTOR, AIR	1
34	GE0122	WEIGHT, BALANCING	-1
35	XA4256	SENSOR, SPEED (1)	1
36	GE0119	WHEEL, SENSOR	1
37	XA4575	NUT	1
38	GE0123	LOCKWASHER	1
39	VE4516	WASHER (1)	8
40	VE4526	CAPSCREW - 3/8" - 16NC X 1"	18
41	58F-22-01410	STATOR ASSEMBLY	1
42	GE1252	STATOR REWIND KIT	1
NS\|43	58F-WM-AK031	NOTE: (1) INCLUDED IN 58F-WM-AK031 TRACTION MOTOR	-1
NS\|44		OVERHAUL KIT.	-1
NS\|45	58F-WM-AK040	(2) INCLUDED IN 58F-WM-AK040 BEARING KIT.	-1
NS\|46	58F-WM-AK050	(3) INCLUDED IN 58F-WM-AK050 BEARING/SEAL KIT.	-1
NS\|47	58F-WM-AK060	(4) INCLUDED IN 58F-WM-AK060 WHEEL MOTOR	-1
NS\|48		OVERHAUL KIT.	-1

Komatsu AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN parts catalog PDF

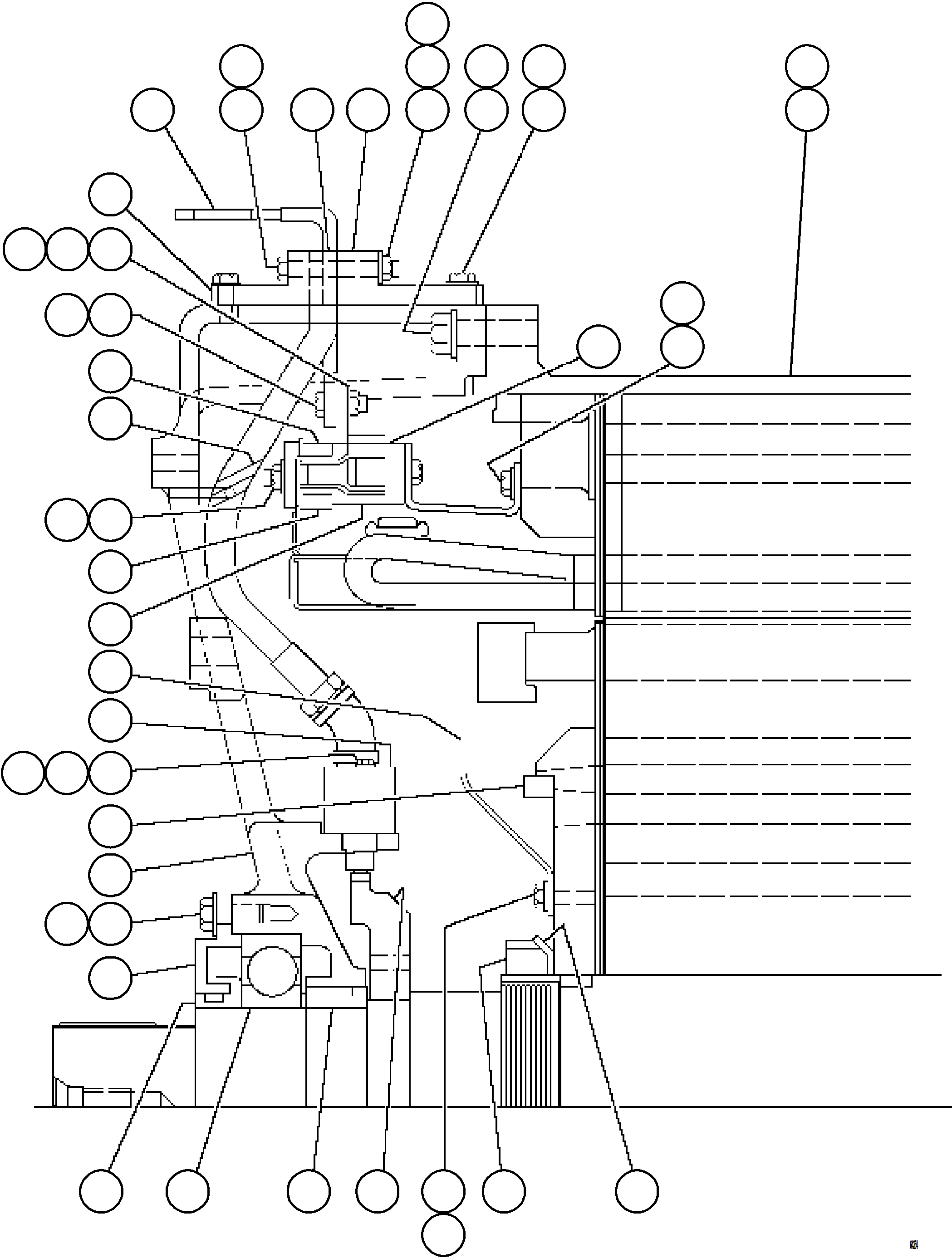

WHEEL MOTOR ROTOR ASSEMBLY 1/2 58F-30-00200 (64254) in AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN. Diagram image and parts list.
