AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN

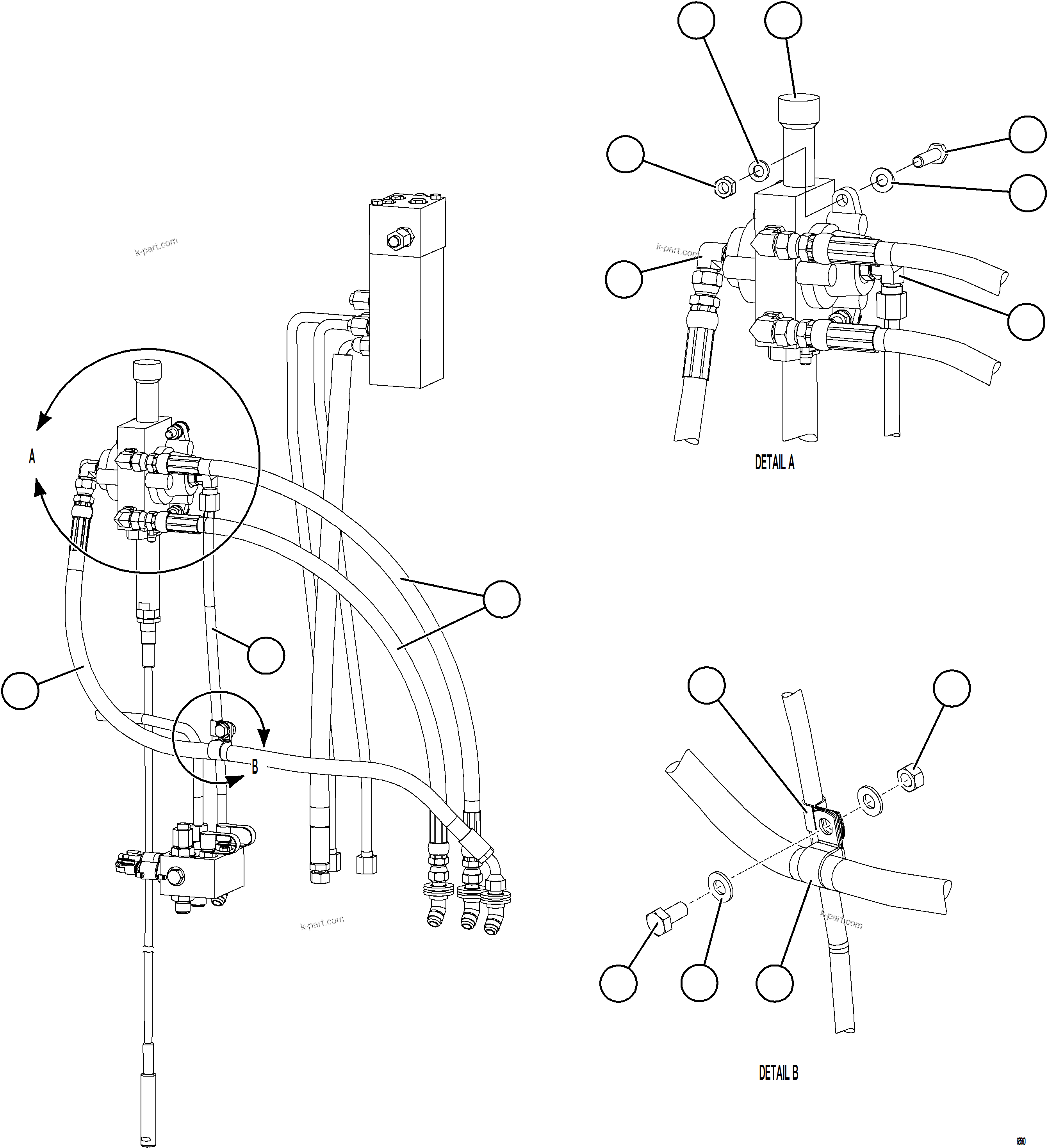

Komatsu parts book diagram for AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN: HOIST PILOT VALVE PIPING 1/2

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	PB6922	HOIST PILOT VALVE ASSEMBLY (SEE INDEX)	1		40064
	?	MM0607	CAPSCREW - M10 X 1.50 X 35	4
	?	MM0461	FLAT WASHER - M10	8
	?	MM0471	LOCKWASHER - M10	2
	?	MM0178	NUT - M10 X 1.50	5
	?	WB0508	FITTING, ELBOW - 90 DEG	4
	?	EG0607	TUBE	1
	?	58F-60-20110	HOSE	1
	?	58B-60-30800	HOSE	2
	?	WB3092	CLAMP, CUSHIONED - 7/8"	1
	?	WB3097	CLAMP, CUSHIONED - 1/2"	1
	?	MM0604	CAPSCREW - M10 X 1.50 X 20	1

Komatsu AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN parts catalog PDF

HOIST PILOT VALVE PIPING 1/2 (68560) in AFE78-S 930E-5 S/N A40078 - A40079 BOLIDEN. Diagram image and parts list.
