AFE75-R 980E-5 S/N A50054 - A50057 SPENCE

7 7 11 2 12 3 13 13 6 14 15 4 16 5 17 8 8 18 20 9 9 19 10 21 22 31 32 33 23 24 34 25 35 26 37 27 38 28 39 30 40 29 41 42 1 36

#	Part Number	Partname	Quantity
1	XA2272	SHAFT & BRACKET	1
2	XA2279	PIN, DOWEL - REAR (3)	1
3	VE1297	FITTING, ORIFICE	1
4	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
5	BF0136	SLEEVE, WEAR (1)/(2)/(3)	1
6	BF0142	NAME PLATE (1)/(2)/(3)	1
7	BF0143	TUBE (1)/(2)/(3)	2
8	XA3505	CAPSCREW	16
9	BF2651	FLAT WASHER	16
10	BF0883	SEAL, OIL (2)/(3)	1
11	XA3504	RETAINER, BEARING	1
12	XA2277	SPACER, BEARING	1
13	BF0144	O-RING (1)/(2)/(3)	2
14	XA2273	BEARING, MAIN REAR (3)	1
15	BF0849	SNAP RING (3)	1
16	VE8122	SNAP RING, EXTERNAL (3)	1
17	BF0138	RING, SEAL (1)/(2)/(3)	2
18	XA2336	CAPSCREW	8
19	BF5366	LOCKWASHER	8
20	XA2334	PULLEY, FAN	1
21	XA3506	ADAPTER, PULLEY	1
22	BF0139	RING, SEAL (1)/(2)/(3)	1
23	BF4032	PISTON	1
24	BF0140	RING, SEAL (1)/(2)/(3)	1
25	BF0146	WASHER, SPRING (1)/(2)/(3)	1
26	BF0147	SHIM (1)/(2)/(3)	1
27	VE8128	SNAP RING, EXTERNAL (3)	1
28	VE8125	SNAP RING, EXTERNAL (3)	1
29	BF0885	HUB, SPLINED	1
30	VE1304	PLATE, CLUTCH (FACING) (3)	8
31	BF0887	PLATE, CLUTCH (1)/(3)	8
32	VE8127	SNAP RING, INTERNAL (3)	1
33	XA2275	BEARING, MAIN FRONT (3)	1
34	XA3507	RETAINER, BEARING	1
35	BF0883	SEAL, OIL (2)/(3)	1
36	XA2274	HUB, FAN MOUNTING	1
37	BF0141	SLEEVE, WEAR (1)/(2)/(3)	1
38	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
39	VE8123	BEARING, SLEEVE (3)	1
40	XA2278	PIN, DOWEL - FRONT (3)	1
41	VE8524	BEARING, SLEEVE (3)	1
42	BF4043	CAP, END	1
NS\|43		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|44	XA2271	(2) INCLUDED IN XA2271 SEAL KIT.	-1
NS\|45	EK2970	(3) INCLUDED IN EK2970 OVERHAUL KIT.	-1
NS\|46		(TO ORDER FAN CLUTCH ASSM LESS PULLEY, ORDER XA3503.)	-1

Komatsu AFE75-R 980E-5 S/N A50054 - A50057 SPENCE parts catalog PDF

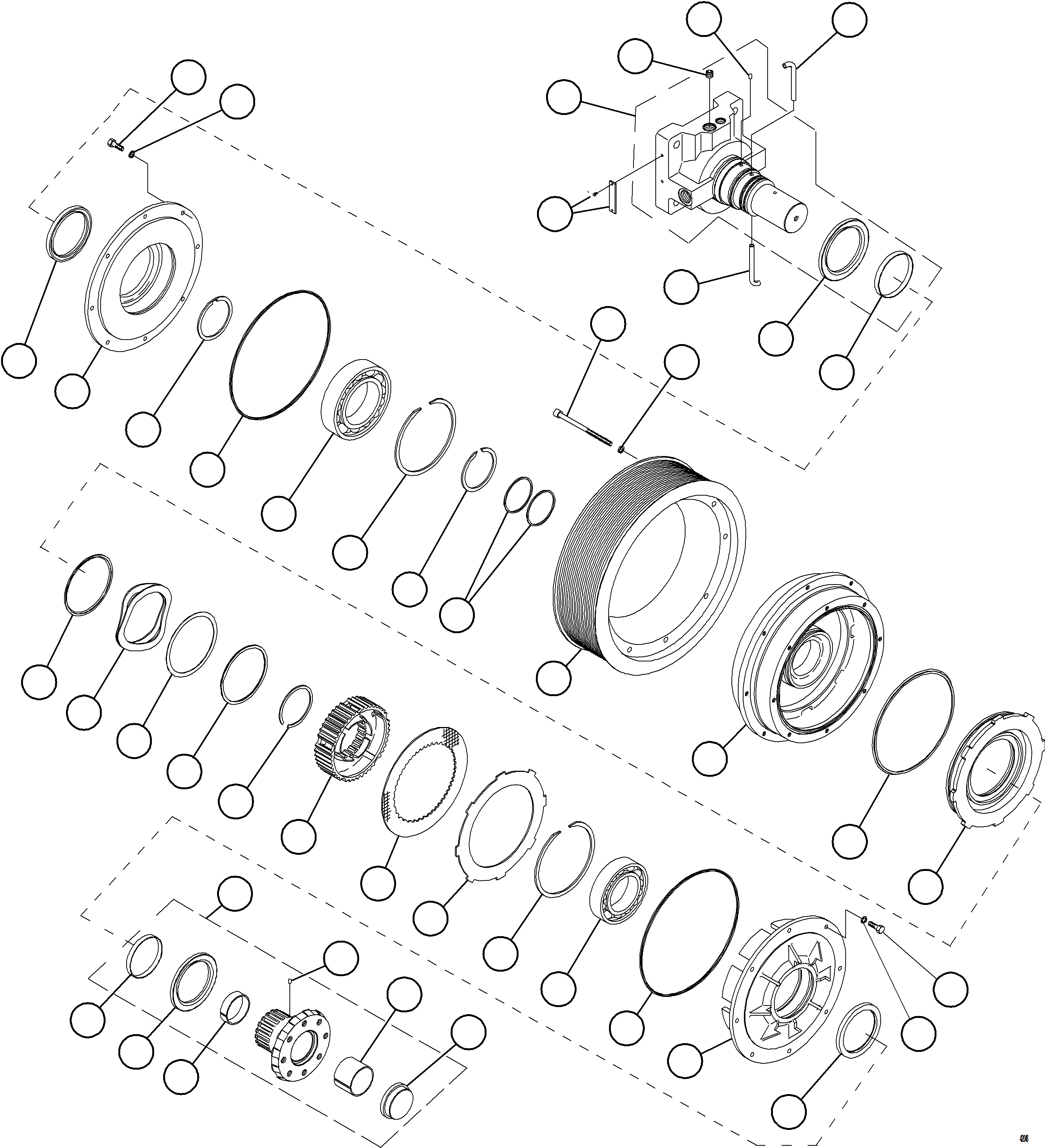

FAN CLUTCH ASSEMBLY 58F-03-00500 (42048) in AFE75-R 980E-5 S/N A50054 - A50057 SPENCE. Diagram image and parts list.
