AFE77-AB 830E-5 S/N A50077 - A50078 DOWNER EDI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PC1455	MANIFOLD, JUNCTION	1
?	58F-60-20031	HOSE	2
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	WB3097	CLAMP, CUSHIONED - 1/2"	1
?	WB3855	CLAMP, CUSHIONED - 13/16"	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	1
?	MM0471	LOCKWASHER - M10	1
?	MM0461	FLAT WASHER - M10	3
?	MM0178	NUT - M10 X 1.50	1
?	WA2551	CAPSCREW - 3/8" - 16NC X 3-1/2"	4
?	TR4436	FLAT WASHER, HARDENED - 3/8"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	TC1233	NUT - 3/8" - 16NC	4
?	TR4439	CAPSCREW - 1/2" - 13NC X 7/8"	2
?	TR6008	FLAT WASHER - 1/2"	2
?	WB0249	FITTING, ELBOW - 45 DEG	1
?	WB0430	FITTING, STRAIGHT	1
?	VM0316	PLUG, O-RING	1
?	WA4730	FLAT WASHER, HARDENED - 3/4"	1

Komatsu AFE77-AB 830E-5 S/N A50077 - A50078 DOWNER EDI parts catalog PDF

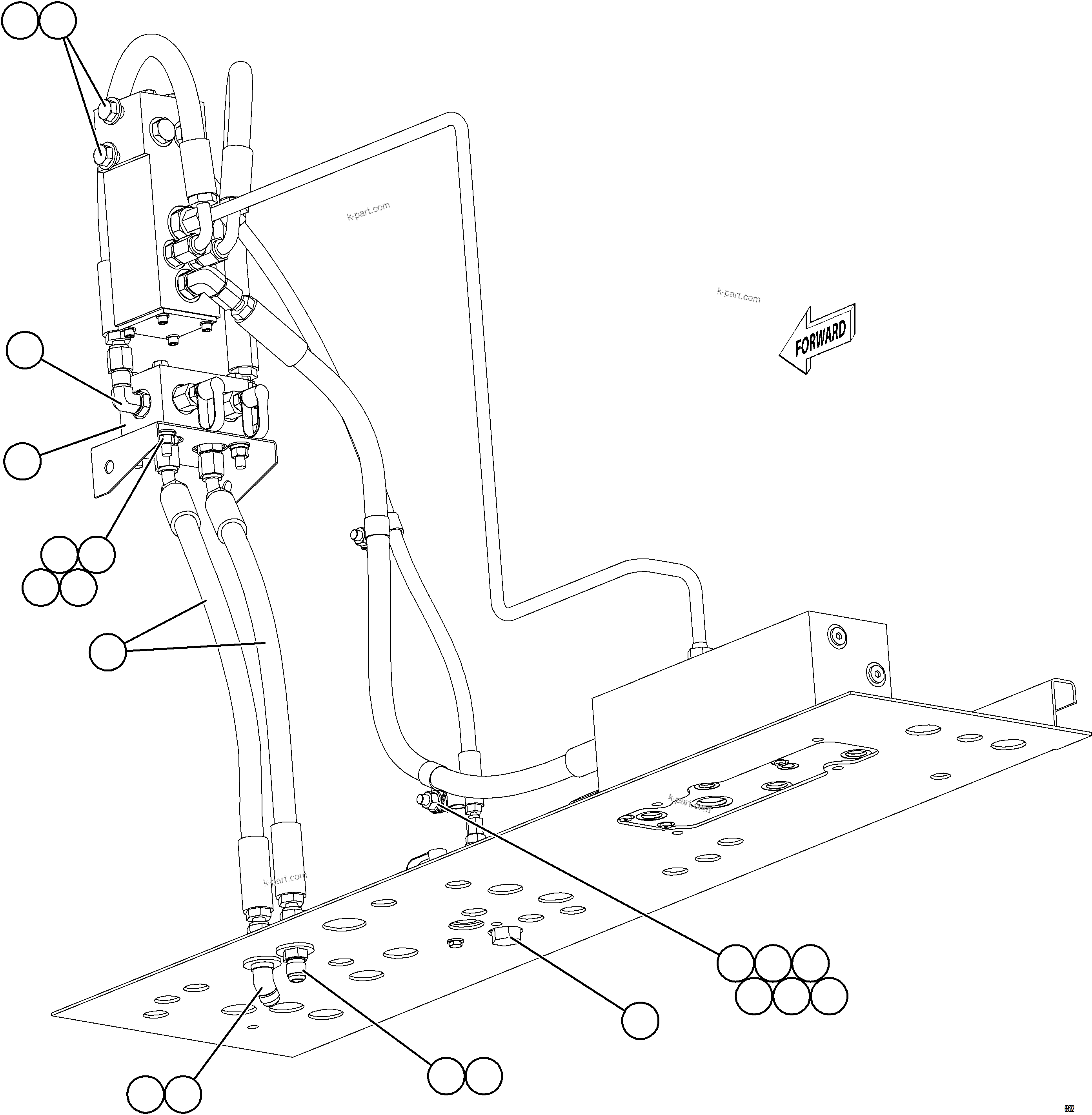

HYDRAULIC BRAKE CABINET PIPING - DUAL RELAY VALVE (69532) in AFE77-AB 830E-5 S/N A50077 - A50078 DOWNER EDI. Diagram image and parts list.
