SAA4D95LE-5J S/N 510888-UP (For WA100-6)

? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	6271-31-2110	Piston	4	SN: 533539-UP
?	6271-39-2110	Piston, Oversize 0.25mm	4	SN: 533539-UP
?	6271-38-2110	Piston, Oversize 0.50mm	4	SN: 533539-UP
?	6207-31-2420	Pin, Piston	4	SN: 533539-UP
?	04065-03012	Ring, Snap	8	SN: 533539-UP
?	6271-31-2300	Piston Ring Assembly	4	SN: 535028-UP
?	6271-31-2100	Piston Ring Assembly	4	SN: 533539-535027
?		Ring, Top	1	SN: 535028-UP \| SCC: C1
?		Ring, Top	1	SN: 533539-535027 \| SCC: C1
?		Ring, Second, Second	1	SN: 535028-UP \| SCC: C1
?		Ring, Second	1	SN: 533539-535027 \| SCC: C1
?		Ring, Oil, Oil	1	SN: 535028-UP \| SCC: C1
?		Ring, Oil	1	SN: 533539-535027 \| SCC: C1
?	6271-39-2300	Piston Ring Assembly, Oversize 0.25mm, Oversize 0.25mm	4	SN: 535028-UP
?	6271-39-2100	Piston Ring Assembly, Oversize 0.25mm	4	SN: 533539-535027
?		Ring, Top	1	SN: 535028-UP \| SCC: C1
?		Ring, Top	1	SN: 533539-535027 \| SCC: C1
?		Ring, Second, Second	1	SN: 535028-UP \| SCC: C1
?		Ring, Second	1	SN: 533539-535027 \| SCC: C1
?		Ring, Oil, Oil	1	SN: 535028-UP \| SCC: C1
?		Ring, Oil	1	SN: 533539-535027 \| SCC: C1
?	6271-38-2300	Piston Ring Assembly, Oversize 0.50mm, Oversize 0.50mm	4	SN: 535028-UP
?	6271-38-2100	Piston Ring Assembly, Oversize 0.50mm	4	SN: 533539-535027
?		Ring, Top	1	SN: 535028-UP \| SCC: C1
?		Ring, Top	1	SN: 533539-535027 \| SCC: C1
?		Ring, Second, Second	1	SN: 535028-UP \| SCC: C1
?		Ring, Second	1	SN: 533539-535027 \| SCC: C1
?		Ring, Oil, Oil	1	SN: 535028-UP \| SCC: C1
?		Ring, Oil	1	SN: 533539-535027 \| SCC: C1
?	6207-31-3800	Connecting Rod Assembly	4	SN: 533539-UP
?		Rod	1	SN: 533539-UP \| SCC: C1
?		Bushing	1	SN: 533539-UP \| SCC: C1
?	6204-31-3310	Bolt	2	SN: 533539-UP
?	6207-31-3900	Bearing Assembly	4	SN: 533539-UP
?		Bearing, Lower, Lower	1	SN: 533539-UP \| SCC: C1
?		Bearing, Upper	1	SN: 533539-UP \| SCC: C1
?	6207-39-3900	Bearing Assembly, Undersize, 0.25mm	4	SN: 533539-UP
?		Bearing, Lower	1	SN: 533539-UP \| SCC: C1
?		Bearing, Upper	1	SN: 533539-UP \| SCC: C1
?	6207-38-3900	Bearing Assembly, Undersize, 0.50mm	4	SN: 533539-UP
?		Bearing, Lower	1	SN: 533539-UP \| SCC: C1
?		Bearing, Upper	1	SN: 533539-UP \| SCC: C1
?	6207-37-3900	Bearing Assembly, Undersize, 0.75mm	4	SN: 533539-UP
?		Bearing, Lower	1	SN: 533539-UP \| SCC: C1
?		Bearing, Upper	1	SN: 533539-UP \| SCC: C1
?	6207-36-3900	Bearing Assembly, Undersize, 1.00mm	4	SN: 533539-UP
?		Bearing, Lower	1	SN: 533539-UP \| SCC: C1
?		Bearing, Upper	1	SN: 533539-UP \| SCC: C1
?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu SAA4D95LE-5J S/N 510888-UP (For WA100-6) parts catalog PDF

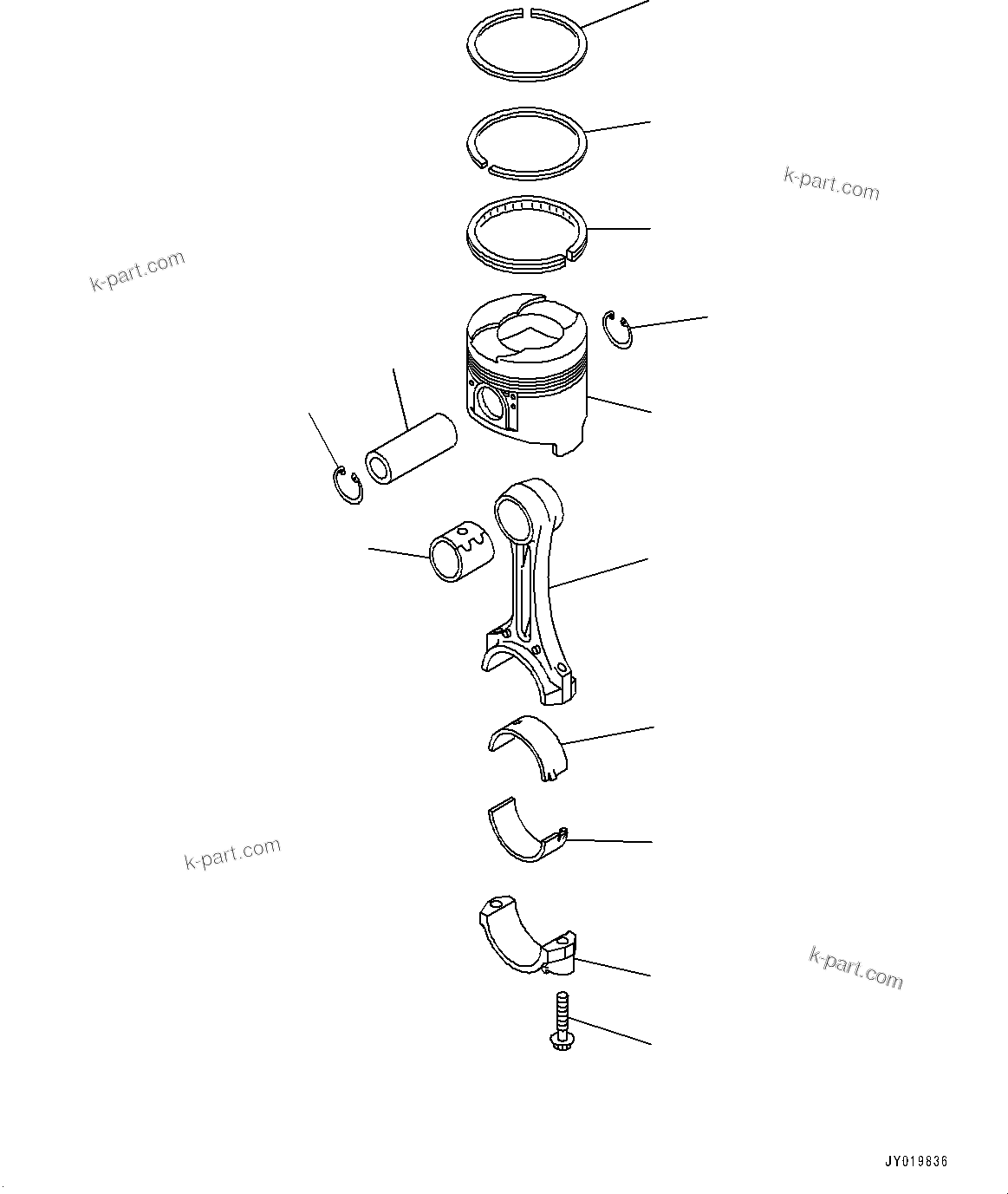

PARTS PERFORMANCE, PISTON(#533539-) (APP10-003001) in SAA4D95LE-5J S/N 510888-UP (For WA100-6). Diagram image and parts list.
