AFE73-V 980E-4 S/N A40166 - A40172 BUENAVISTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58B-41-00010	STEERING CYLINDER ASSEMBLY (1) (SEE INDEX)	2	62926
?	58B-41-00130	CLAMP ASSEMBLY	2
?	TF8077	CLAMP, SPLIT FLANGE - 1"	8
?	VG9097	O-RING	6
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	8
?	TC1231	LOCKWASHER - 3/8"	24
?	EL3398	TUBE - RH	1
?	WA4855	FITTING, ELBOW - 90 DEG	4
?	H0595	CAPSCREW - 3/8" - 16NC X 2 1/4"	8
?	EL3397	TUBE - LH	1
?	TG2341	CAPSCREW - 3/8" - 16NC X 2 1/4"	4
?	HA8074	HOSE	1
?	TF8481	CAPSCREW - 3/8" - 16NC X 4"	2
?	TC1231	LOCKWASHER - 3/8"	2
?	TC1233	NUT - 3/8" - 16NC	6
?	PB6769	COUPLING, MALE	2
?	TL3995	O-RING	2
?	162144	CAP, DUST	2
?	EJ5570	BRACKET	1
?	TV3461	CAPSCREW - 3/8" - 16NC X 5/8"	4
?	TR4436	FLAT WASHER, HARDENED - 3/8"	4
?	EL1924	CLAMP ASSEMBLY	1
?	EL3952	BRACKET, CLAMP	1
?	TZ5901	MANIFOLD	1
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	WB0599	FITTING, STRAIGHT	4
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	HA5133	HOSE	1
?	58B-60-05190	TUBE	1
?	EL1919	TUBE	1
?	WB1305	CLAMP, CUSHIONED - 1 1/2"	4
?	MM0461	FLAT WASHER - M10	4
?	MM0605	CAPSCREW - M10 X 1.50 X 25	2
?	MM0178	NUT - M10 X 1.50	2
?	58B-60-01190	HOSE	4
?	58B-SC-AK020	NOTE: (1) INCLUDED IN 58B-SC-AK020 STEERING CYLINDER KIT.	-1

Komatsu AFE73-V 980E-4 S/N A40166 - A40172 BUENAVISTA parts catalog PDF

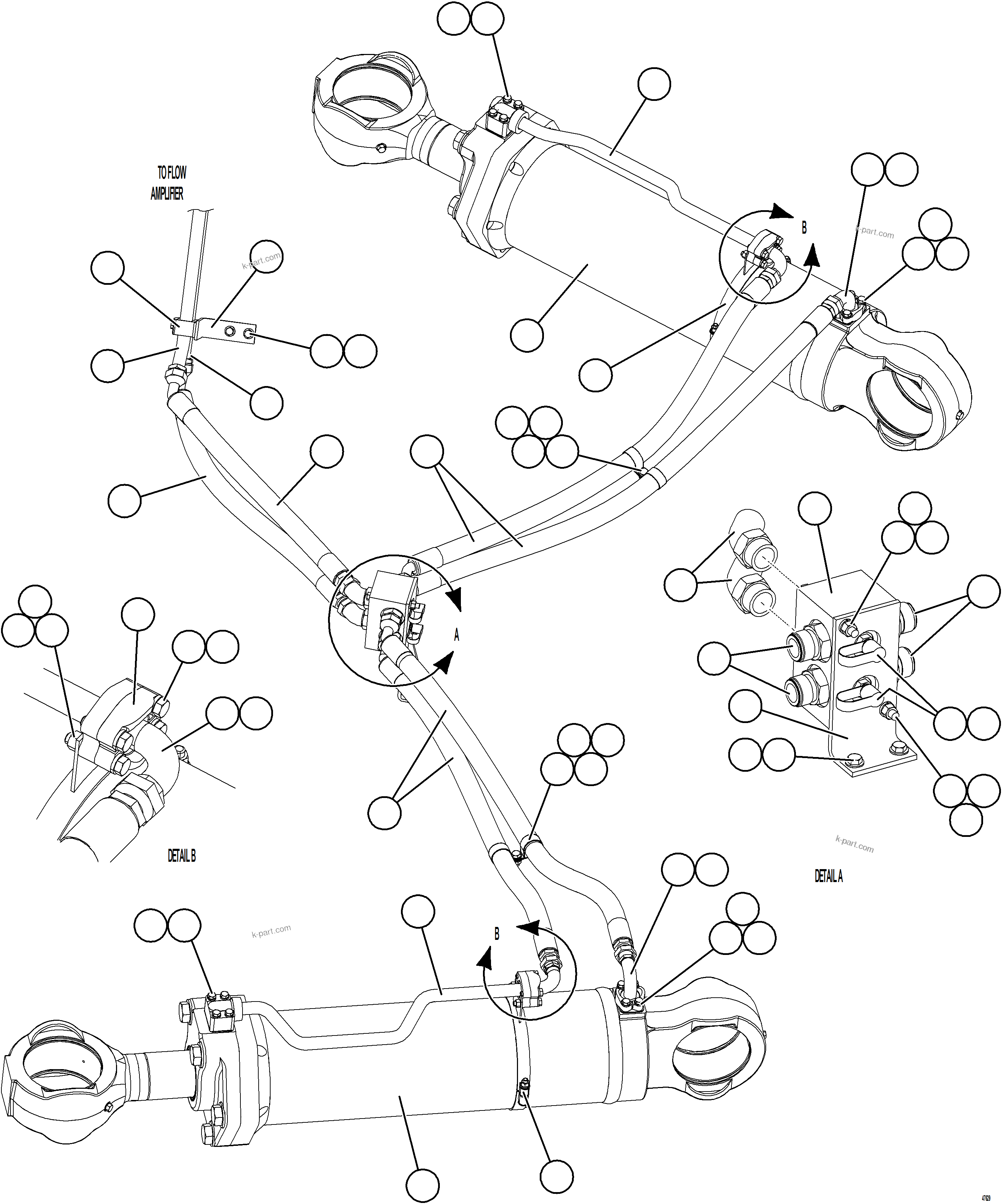

STEERING CYLINDER PIPING (47629) in AFE73-V 980E-4 S/N A40166 - A40172 BUENAVISTA. Diagram image and parts list.
