AFE75-V 980E-5 S/N A50069 - A50070 ANTAPACCAY

7 8 31 30 24 25 28 18 2 6 29 27 21 22 34 1 32 37 14 19 10 14 3 40 5 3 5 4 3 5 4 3 16 15 9 3 16 15 9 3 23 15 9 42 20 41 11 41 12 26 13 17 33 35 36 32 39 38

#	Part Number	Partname	Quantity
1	58B-60-01880	HOSE	1
2	WB0671	FITTING, ELBOW - 90 DEG	1
3	MM0461	FLAT WASHER - M10	12
4	MM0471	LOCKWASHER - M10	12
5	MM0606	CAPSCREW - M10 X 1.50 X 30	9
6	58B-46-02210	BRACKET, BULKHEAD	1
7	WB0447	FITTING, BULKHEAD	1
8	58F-46-40731	BRACKET	1
9	WB3858	CLAMP, CUSHIONED - 1 13/16"	4
10	EG0554	ADAPTER, FLANGE	1
11	VC6500	CAPSCREW - 1/2" - 13NC X 2"	4
12	TR5445	LOCKWASHER - 1/2"	4
13	58F-09-00320	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
14	WA0232	O-RING	2
15	WB3859	CLAMP, CUSHIONED	5
16	MM0178	NUT - M10 X 1.50	2
17	WB1053	CLAMP, HEAVY DUTY	3
18	WB0524	FITTING, ELBOW - 90 DEG	1
19	EG0555	ADAPTER, FLANGE	1
20	58F-09-00350	CAPSCREW - 1/2" - 13NC X 4"	4
21	WA4712	CLAMP, HYDRA ZORB - 2"	3
22	58B-60-01870	HOSE	1
23	MM0604	CAPSCREW - M10 X 1.50 X 20	1
24	HA8659	HOSE	1
25	XB9364	TUBE	1
26	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	8
27	HA7751	HOSE	1
28	HA8657	HOSE	1
29	58B-60-01760	TUBE	1
30	HA7817	HOSE	1
31	HA7920	HOSE	1
32	58B-60-05030	TUBE	1
33	58B-60-20590	TUBE	1
34	58B-60-01902	HOSE	1
35	HA8658	HOSE	1
36	58B-60-01610	TUBE	1
37	58B-60-01892	HOSE	1
38	WA4709	CLAMP, HYDRA ZORB - 1 1/4"	1
39	WA4710	CLAMP, HYDRA ZORB - 1 1/2"	2
40	EJ3083	CLEAT, TUBE	6
41	C1541	LOCKWASHER - 5/8"	8
42	WB0601	FITTING, STRAIGHT	1

Komatsu AFE75-V 980E-5 S/N A50069 - A50070 ANTAPACCAY parts catalog PDF

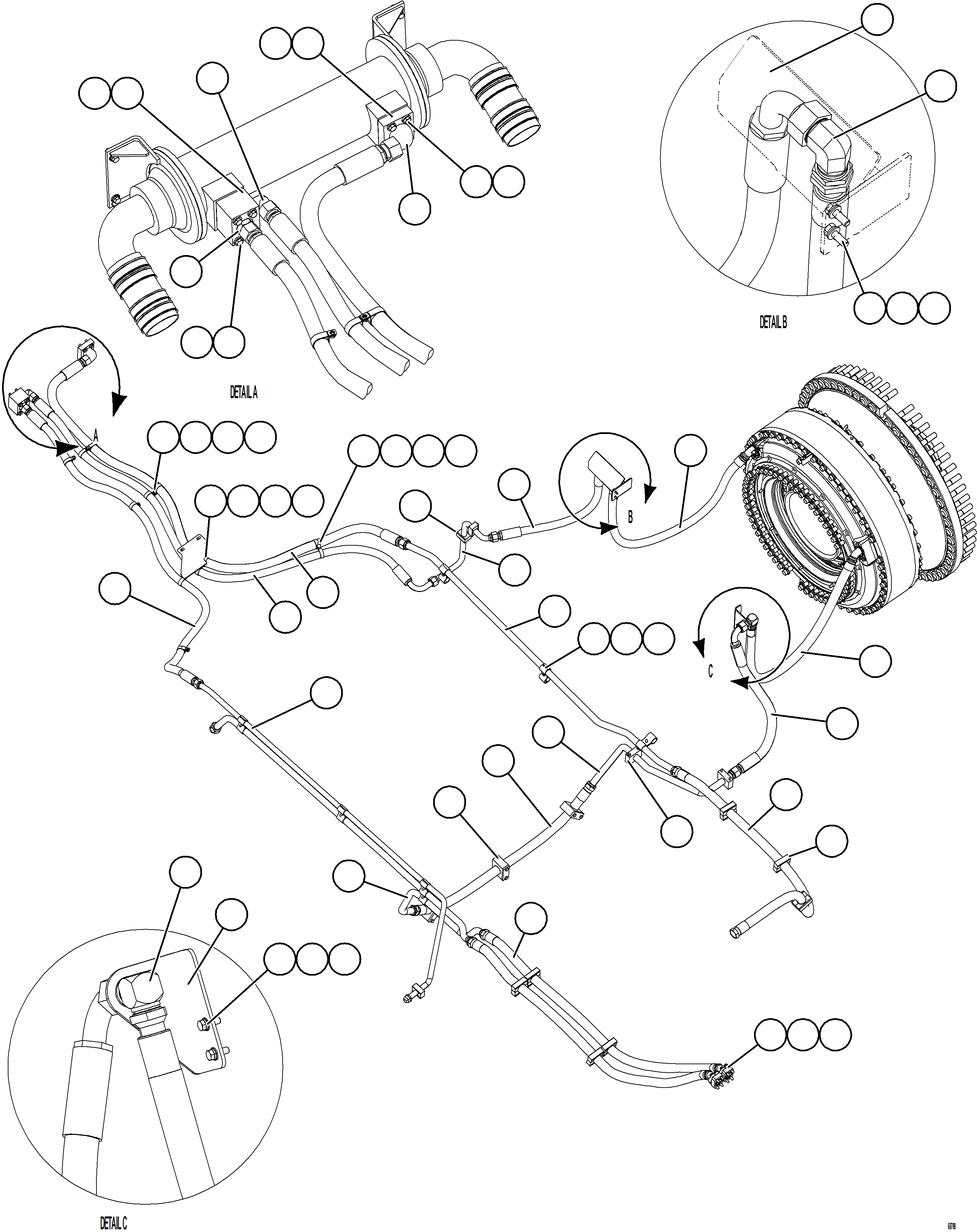

BRAKE COOLING PIPING - RIGHT FRONT (68709) in AFE75-V 980E-5 S/N A50069 - A50070 ANTAPACCAY. Diagram image and parts list.
