AFE57-FS 830E-1AC S/N A30723 - A30726 ISLA RIESCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE3805	TIE ROD	4
?	VE3807	WASHER, COMPRESSION	8
?	VE3804	LOCKNUT	8
?	VE3809	INLET SECTION ASSEMBLY	2
?	VJ2002	CAPSCREW	16
?	VJ1987	CAPSCREW	16
?	VJ0011	PLUG	2
?	VJ0435	O-RING (1)/(2)	2
?	VE3551	PLUG	2
?	VE3565	O-RING (1)/(2)	6
?	VE3563	CAP, FLANGE	2
?	VE3553	O-RING (1)/(2)	2
?	VE3559	FITTING	2
?	VE3564	TUBE	2
?	VE3561	FITTING	2
?	VE3803	CAPSCREW	4
?	VE3560	SLEEVE (1)	2
?	VE3554	RING, BACKUP (1)/(2)	4
?	VE3552	O-RING (1)/(2)	2
?	VE3550	RING, BACKUP (1)/(2)	4
?	VE3526	O-RING (1)/(2)	2
?	VE3558	POPPET, RESTRICTION (1)	2
?	VE3562	COVER	2
?	VE3982	SPRING	2
?	VJ1989	SLEEVE	2
?	VE3609	RELIEF VALVE ASSEMBLY (1)	2
?	VE3555	PLUG	2
?	VE3556	POPPET	2
?	VE3533	O-RING (1)/(2)	8
?	BF3046	HOUSING, INLET	2
?	VJ1988	POPPET	4
?	VJ1985	SPRING	4
?	VE3568	COVER, POPPET	2
?	VE3534	O-RING (1)/(2)	3
?	VE3528	O-RING (1)/(2)	6
?	VE3567	RELIEF VALVE ASSEMBLY (1)	2
?	VJ1990	SPRING	2
?	VE3557	SCREW, RESTRICTION	2
?	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	50120
?	VE3806	PLATE, SPACER	1
?	VJ1987	CAPSCREW (INCLUDED WITH VE3810, REF. NO. 22)	16
?	BF3253	NOTE: (1) INCLUDED IN BF3253 MAJOR SERVICE KIT.	-1
?	BF3252	(2) INCLUDED IN BF3252 MINOR SERVICE KIT.	-1

Komatsu AFE57-FS 830E-1AC S/N A30723 - A30726 ISLA RIESCO parts catalog PDF

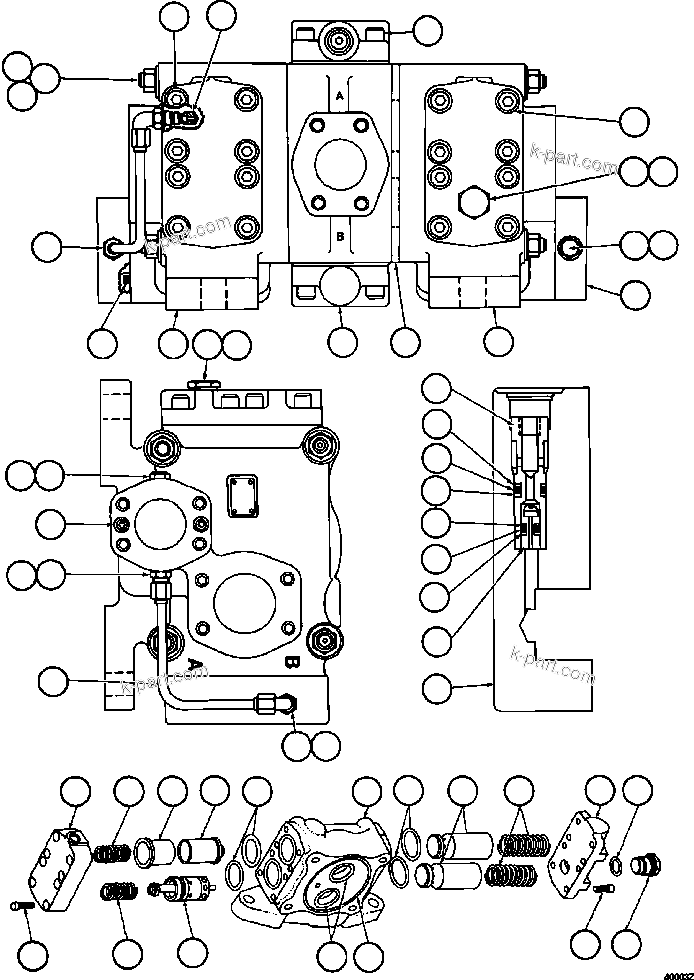

HOIST CONTROL VALVE ASSEMBLY PB6921 (40003) in AFE57-FS 830E-1AC S/N A30723 - A30726 ISLA RIESCO. Diagram image and parts list.
