AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-22-01420	ROTOR ASSEMBLY	1
?	GE0437	SHAFT	1
?	58F-22-01430	WEIGHT, BALANCING	-1
?	58F-22-01440	DEFLECTOR, AIR	1
?	BF4421	CAPSCREW - 3/8" - 16NC X 1"	8
?	VE4516	WASHER	8
?	GE0129	FRAME, HEAD	1
?	GE0130	HOUSING, BEARING	1
?	GE0133	FLINGER	1
?	GE0134	COLLAR	1
?	VE4518	CAPSCREW - 1/2" - 13NC X 1 1/2" (1)	4
?	VE5185	FLAT WASHER - 1/2"	8
?	VJ9656	ADHESIVE, RTV	-1
?	XA4260	CAP, BEARING	1
?	GE0395	CAP, BEARING	1
?	BF1660	SEAL, LIP (1)/(3)/(4)	1
?	XA4261	COLLAR	1
?	VE6232	CAPSCREW - 1/2" - 13NC X 3 1/4" (1)	4
?	GE0438	BEARING (2)/(3)/(4)	1
?	VE4830	CAPSCREW - 5/8" - 11NC X 2"	9
?	XA4136	FLAT WASHER, HARDENED - 5/8"	9
?	58F-WM-AK031	NOTE: (1) INCLUDED IN 58F-WM-AK031 TRACTION MOTOR	-1
?		OVERHAUL KIT.	-1
?	58F-WM-AK040	(2) INCLUDED IN 58F-WM-AK040 BEARING KIT.	-1
?	58F-WM-AK050	(3) INCLUDED IN 58F-WM-AK050 BEARING/SEAL KIT.	-1
?	58F-WM-AK060	(4) INCLUDED IN 58F-WM-AK060 WHEEL MOTOR OVERHAUL KIT.	-1

Komatsu AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS parts catalog PDF

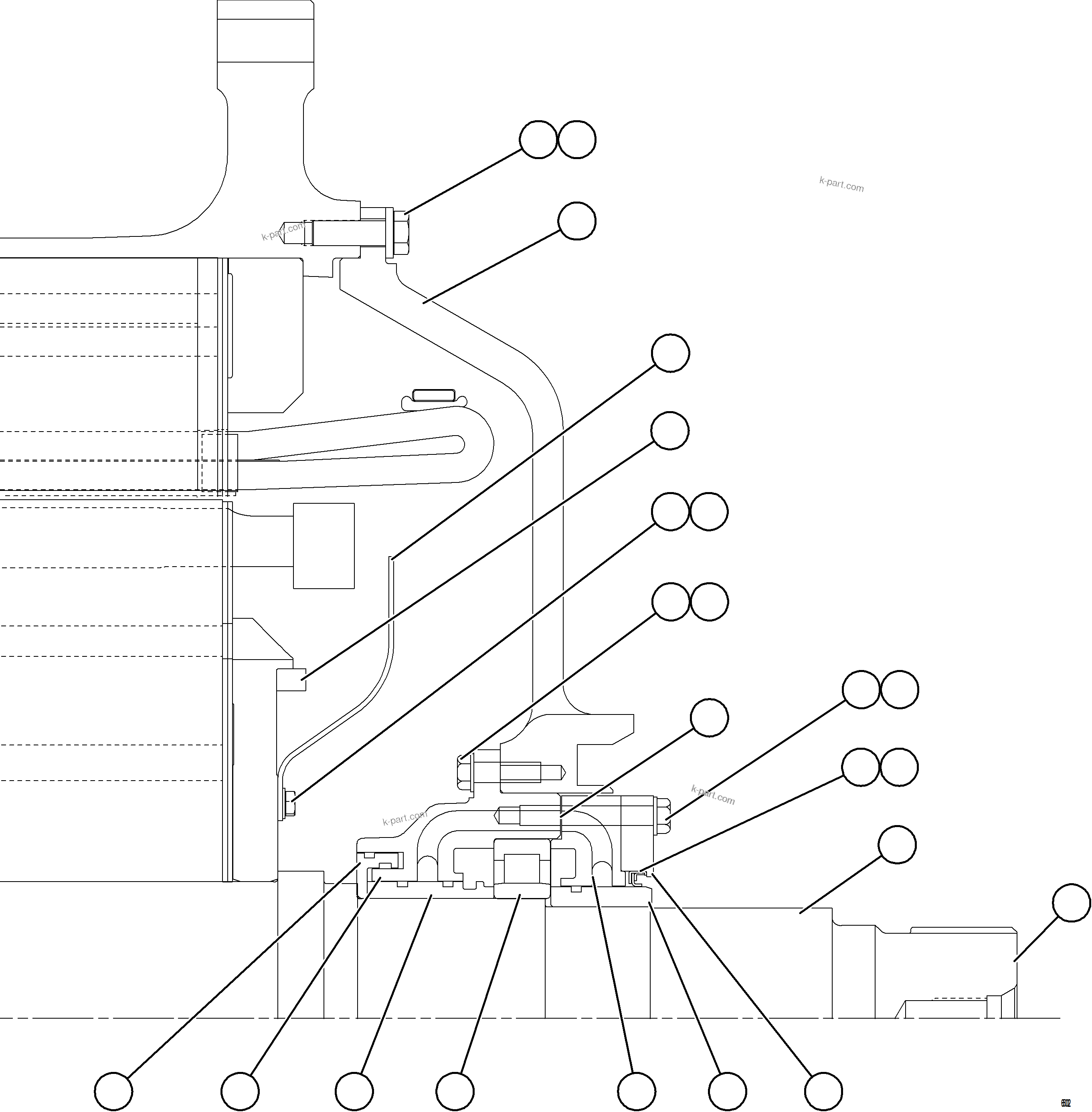

WHEEL MOTOR ROTOR ASSEMBLY 2/2 58F-30-00200 (65002) in AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS. Diagram image and parts list.
