AFE78-AH 930E-5 S/N A40131 - A40132 THEISS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-22-01410	STATOR ASSEMBLY	1
?	GE0112	RING, BUS (TC)	1
?	GE0113	RING, BUS (TB)	1
?	GE0114	RING, BUS (TA)	1
?	GE0115	RING, BUS (N)	1
?	VE4526	CAPSCREW - 3/8" - 16NC X 1"	18
?	VE3027	FLAT WASHER - 3/8"	27
?	VE4700	NUT - 3/8" - 16NC (INNER)	9
?	58F-22-01420	ROTOR ASSEMBLY (INNER)	1
?	GE0437	SHAFT (INNER)	1
?	XA4575	NUT	1
?	GE0123	LOCKWASHER	1
?	58F-22-01430	WEIGHT, BALANCING (INNER)	-1
?	GE0119	WHEEL, SENSOR	1
?	GE0124	FRAME, HEAD	1
?	GE0125	CAP, BEARING	1
?	GE0126	COLLAR (OUTER)	1
?	GE0127	BEARING (2)/(3)/(4)	1
?	GE0128	COLLAR (INNER)	1
?	VE4518	CAPSCREW - 1/2" - 13NC X 1 1/2" (1)	8
?	VE5185	FLAT WASHER - 1/2" (INNER)	8
?	VE4830	CAPSCREW - 5/8" - 11NC X 2"	18
?	XA4136	FLAT WASHER, HARDENED - 5/8"	18
?	GE0136	BLOCK	1
?	GE0137	CLAMP	1
?	GE1367	CONNECTION, STRAP	3
?	XA4256	SENSOR, SPEED (1)	1
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	VE4515	FLAT WASHER - 3/8"	14
?	VE4747	NUT	5
?	VE4701	CAPSCREW - 3/8" - 16NC X 3"	2
?	VE4783	PUTTY	-1
?	58F-22-01450	TAPE, POLYESTER	-1
?	58F-22-01460	TAPE, FIBERGLASS	-1
?	VE7272	SEALANT	-1
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	3
?	GE0628	CAPSCREW - 5/16" - 18NC X 2 1/4"	2
?	58E-00-01570	FLAT WASHER - 5/16"	2
?	GE0142	CEMENT	-1
?	58F-22-01470	TAPE, GLASS	1
?	VE4687	LOCKWASHER - 3/8"	5
?	58F-WM-AK031	NOTE: (1) INCLUDED IN 58F-WM-AK031 TRACTION MOTOR	-1
?		OVERHAUL KIT.	-1
?	58F-WM-AK040	(2) INCLUDED IN 58F-WM-AK040 BEARING KIT.	-1
?	58F-WM-AK050	(3) INCLUDED IN 58F-WM-AK050 BEARING/SEAL KIT.	-1
?	58F-WM-AK060	(4) INCLUDED IN 58F-WM-AK060 WHEEL MOTOR	-1
?		OVERHAUL KIT.	-1

Komatsu AFE78-AH 930E-5 S/N A40131 - A40132 THEISS parts catalog PDF

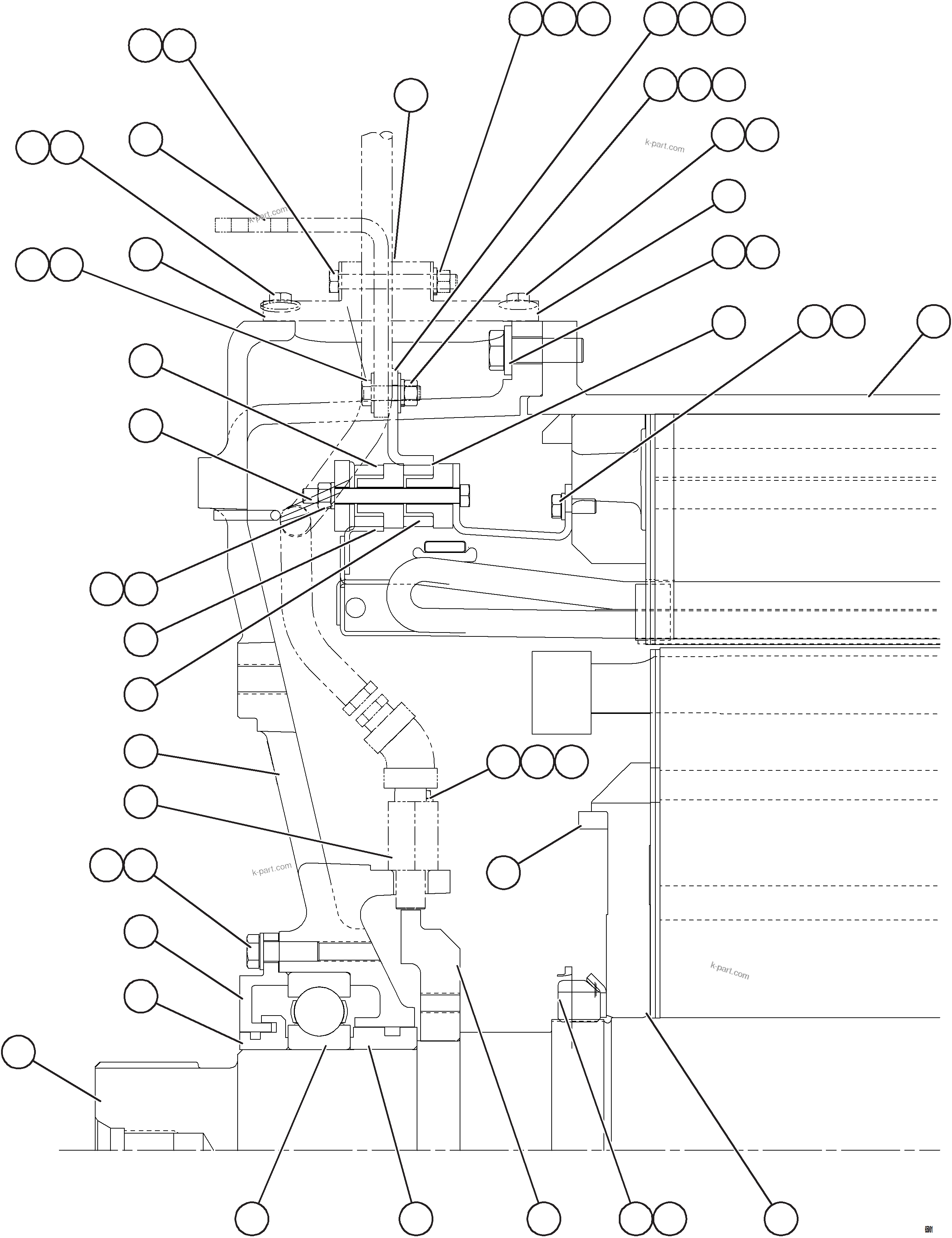

WHEEL MOTOR ROTOR ASSEMBLY 1/2 58F-30-00200 (65001) in AFE78-AH 930E-5 S/N A40131 - A40132 THEISS. Diagram image and parts list.
