AFE78-AH 930E-5 S/N A40131 - A40132 THEISS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EJ2737	HOUSING	1
?	TY8879	PLUG, VENT	1
?	PC2588	BEARING, PISTON	1
?	PC2587	BEARING, ROD	1
?	EK8138	RETAINER, BEARING	1
?	VN9140	CAPSCREW - 3/4" - 10NC X 4"	24
?	WA0362	FLAT WASHER - 3/4"	24
?	PC0626	SEAL, ROD BUFFER - 14" (1)	1
?	PC0625	SEAL, ROD DOUBLE LIP - 14" (1)	1
?	PC0627	SEAL, WIPER - 14" (1)	1
?	EL7310	PISTON	1
?	VM0313	PLUG	4
?	PB2194	CHARGING VALVE ASSEMBLY (1)/(2)	1
?	TD7179	CORE, VALVE	1
?	TR9993	CAP, VALVE	1
?	TF1144	O-RING, HOUSING	1
?	WA0052	O-RING, VALVE STEM	1
?	VD5076	GASKET, FLAT (1)/(2)	1
?	WA0180	O-RING (1)	1
?	PC0673	RING, BACKUP (1)	1
?	TZ8637	PLUG, SENSOR	1
?		NOTE: NS = NOT SHOWN	-1
?	AK4063	SUSPENSION OIL MIXTURE - 5 GAL	6
?	AK4064	SUSPENSION OIL MIXTURE - 55 GAL	1
?	58F-RS-AK031	NOTE: (1) INCLUDED IN 58F-RS-AK031 REAR SUSPENSION	-1
?		OVERHAUL KIT.	-1
?	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE KIT.	-1

Komatsu AFE78-AH 930E-5 S/N A40131 - A40132 THEISS parts catalog PDF

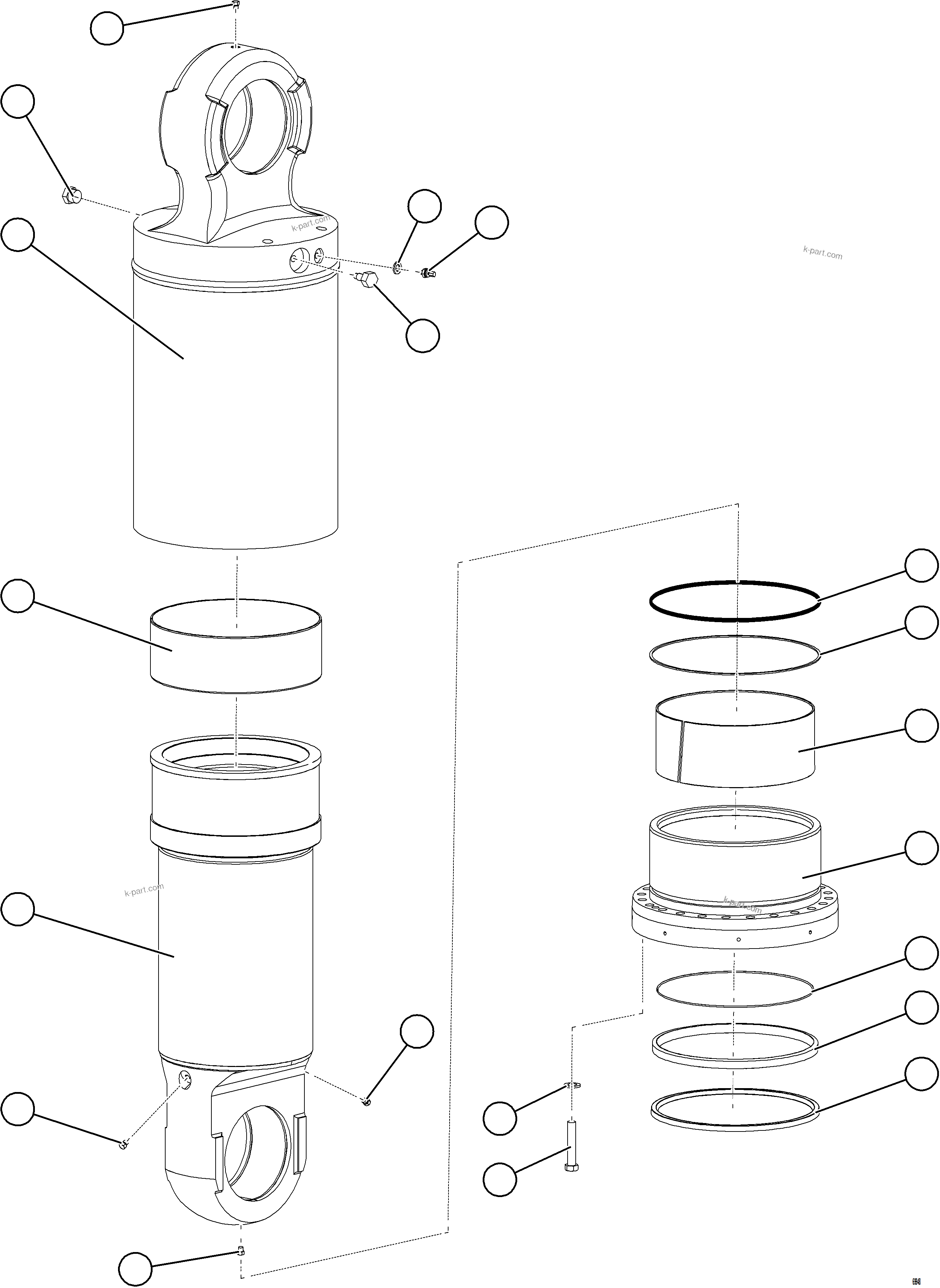

REAR SUSPENSION ASSEMBLY EM8846 (69948) in AFE78-AH 930E-5 S/N A40131 - A40132 THEISS. Diagram image and parts list.
