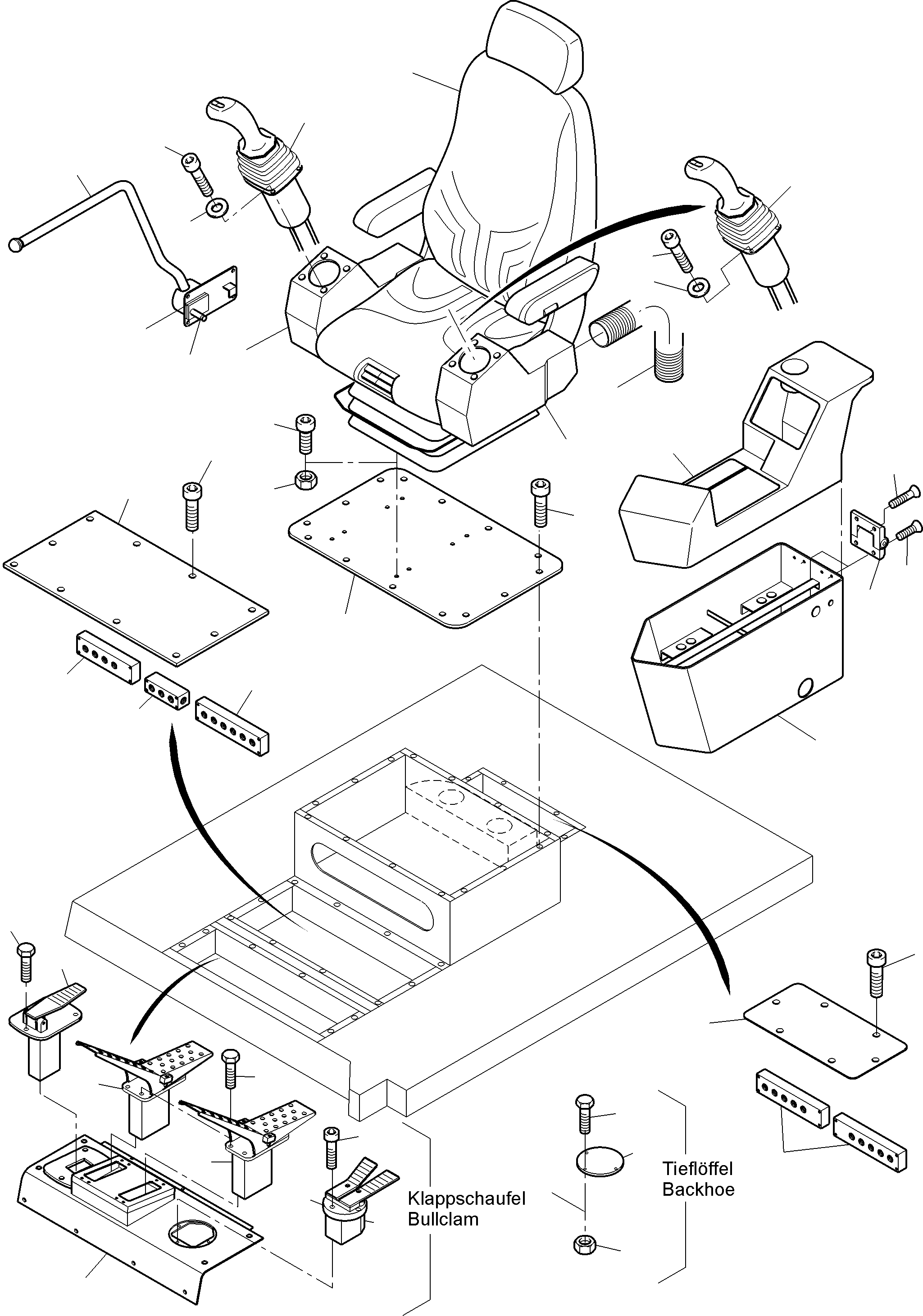

01 |
|
Manipulator |
1 |
|
991-0237b |
|
|
02 |
|
Manipulator |
1 |
|
991-0238b |
|
|
03 |
|
Pilot oil unit |
1 |
|
090-0441 |
|
|
04 |
|
Pilot oil unit |
1 |
|
090-2863a |
|
|
05 |
|
Pilot oil unit |
1 |
|
090-2863a |
|
|
06 |
320 214 99
|
Screw |
8 |
|
|
|
|
07 |
340 506 99
|
Washer |
11 |
|
|
|
|
08 |
377 750 99
|
Bolt |
11 |
|
|
|
|
10 |
|
Pilot oil unit (Bullclam) |
1 |
|
991-1495 |
|
|
11 |
319 136 99
|
Screw (Bullclam) |
3 |
|
|
|
|
12 |
|
Operator's seat |
1 |
|
991-1397 |
|
|
13 |
794 463 73
|
Retainer for pilot oil unit, l.h. |
1 |
|
|
|
|
14 |
794 464 73
|
Retainer for pilot oil unit, r.h. |
1 |
|
|
|
|
16 |
794 466 73
|
Pedal cover |
1 |
|
|
|
|
17 |
794 467 73
|
Cover |
1 |
|
|
|
|
18 |
794 468 73
|
Cover |
1 |
|
|
|
|
19 |
794 469 73
|
Pedal cover |
1 |
|
|
|
|
20 |
794 470 73
|
Connecting block |
1 |
|
|
|
|
21 |
794 471 73
|
Connecting block |
1 |
|
|
|
|
22 |
794 472 73
|
Connecting block |
1 |
|
|
|
|
23 |
794 473 73
|
Connecting block |
2 |
|
|
|
|
24 |
794 474 73
|
Operation panel - base |
1 |
|
|
|
|
25 |
794 475 73
|
Operation panel - upper |
1 |
|
|
|
|
26 |
794 476 73
|
Hinge |
1 |
|
|
|
|
27 |
321 212 99
|
Screw |
6 |
|
|
|
|
28 |
321 231 99
|
Screw |
4 |
|
|
|
|
29 |
332 332 99
|
Nut |
10 |
|
|
|
|
30 |
319 135 99
|
Screw |
20 |
|
|
|
|
31 |
504 136 98
|
Screw |
10 |
|
|
|
|
32 |
414 272 40
|
Flex. hose DN 80 |
2 |
|
|
|
|
33 |
921 523 40
|
Face |
1 |
|
|
|
|
34 |
906 761 40
|
Grommet 30 |
12 |
|
|
|
|
35 |
906 760 40
|
Grommet 40 |
3 |
|
|
|
|
36 |
907 223 40
|
Grommet 15 |
3 |
|
|
|
|
37 |
906 758 40
|
Seal |
1 |
|
|
|
|
38 |
906 762 40
|
Shim |
1 |
|
|
|
|
39 |
907 105 40
|
Rail |
2 |
|
|
|
|
40 |
989 314 40
|
Shaft assy. |
1 |
|
|
|
|
42 |
22U 06 22360
|
Switch |
2 |
|
|
|
|
43 |
|
Lever assy. |
1 |
|
|
|
|
44 |
907 104 40
|
Grommet 20 |
6 |
|
|
|
|
45 |
989 313 40
|
Sheet |
1 |
|
|
|
|
46 |
928 812 40
|
Cover (Backhoe) |
1 |
|
|
|
|
47 |
516 414 98
|
Screw (Backhoe) |
3 |
|
|
|
|
48 |
507 025 98
|
Nut (Backhoe) |
3 |
|
|
|
|
51 |
799 640 73
|
Harness 1 - X85 (30x1,5) |
1 |
|
|
|
|
51 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
52 |
799 641 73
|
Harness 2 - X86 (30x1,5) |
1 |
|
|
|
|
52 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
53 |
799 642 73
|
Harness 3 - X87 (30x1,5) |
1 |
|
|
|
|
53 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
54 |
799 643 73
|
Harness 4 - X88 (20x2,5) |
1 |
|
|
|
|
54 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
55 |
799 644 73
|
Harness 5 - X90 (20x2,5) |
1 |
|
|
|
|
55 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
56 |
799 645 73
|
Harness 6 - +24V (1x16) |
1 |
|
|
|
|
56 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
57 |
799 646 73
|
Harness 7 - GND (1x95) |
1 |
|
|
|
|
57 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
58 |
799 647 73
|
Harness 8 - CAN (3x1) |
1 |
|
|
|
|
58 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
59 |
799 648 73
|
Harness 9 |
1 |
|
|
|
|
59 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
60 |
799 649 73
|
Harness 10 - X100 (30x1,5) |
1 |
|
|
|
|
60 |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
