PC3000-6E S/N 06361

02 102 103 105 106 110 110 111 111 112 112 113 113 113 115 116 116 117 117 118 118 18 19 34 34 35 36 81 82 83 84 84 84 85 85 85 86 87 88 89 90 90 91 91 92 93 94

PC3000-6E S/N 06361

02 102 103 105 106 110 110 111 111 112 112 113 113 113 115 116 116 117 117 118 118 18 19 34 34 35 36 81 82 83 84 84 84 85 85 85 86 87 88 89 90 90 91 91 92 93 94

PC3000-6E S/N 06361

02 102 103 105 106 110 110 111 111 112 112 113 113 113 115 116 116 117 117 118 118 18 19 34 34 35 36 81 82 83 84 84 84 85 85 85 86 87 88 89 90 90 91 91 92 93 94

PC3000-6E S/N 06361

02 102 103 105 106 110 110 111 111 112 112 113 113 113 115 116 116 117 117 118 118 18 19 34 34 35 36 81 82 83 84 84 84 85 85 85 86 87 88 89 90 90 91 91 92 93 94

#	Part Number	Partname	Quantity
01	946 353 40	Platform	1
02	946 349 40	Platform	1
03	317 317 40	Grid	1
04	941 159 40	Grid	1
05	941 158 40	Grid	1
06	440 998 40	Grating	3
07	946 300 40	Platform	1
08	510 744 98	Resilient sleeve	19
09	308 405 99	Bolt	8
10	510 728 98	Resilient sleeve	8
11	318 388 99	Bolt	17
12	937 982 40	Threaded block	17
18	302 573 99	Bolt	8
19	512 531 98	Resilient sleeve	8
20	915 333 40	Grating	1
21	937 986 40	Grating	1
22	937 987 40	Grating	1
23	947 445 40	Grating	1
24	947 446 40	Grating	1
26	946 023 40	Grating	1
27	901 082 40	Grating	1
28	932 516 40	Grating	1
29	961 332 40	Grating	1
30	302 548 99	Bolt	15
31	517 096 98	Resilient sleeve	15
33	937 983 40	Grating	1
34	317 319 40	Threaded block	128
35	317 318 40	Wing nut, plastic	118
36	502 354 98	Bolt	118
37	883 747 40	Grating	1
38	377 750 99	Bolt	2
39	334 599 99	Nut	2
40	890 603 40	Grating	1
41	980 585 40	Grating	1
42	936 586 40	Grating	1
44	319 135 99	Screw	5
45	507 025 98	Nut	5
46	081 282 40	Silent block	5
47	507 037 98	Nut	13
48	947 442 40	Console	1
49	947 447 40	Console	1
50	947 450 40	Console	1
51	947 453 40	Console	1
52	947 456 40	Console	1
53	947 458 40	Console	1
54	947 461 40	Console	1
55	947 464 40	Platform	1
56	947 470 40	Platform	1
57	925 261 40	Platform	1
58	915 489 40	Grating	1
59	947 465 40	Grating	1
60	915 487 40	Grating	1
61	947 477 40	Grating	1
62	604 186 40	Grating	1
63	915 488 40	Grating	1
64	308 437 99	Bolt	2
66	943 659 40	Plate	1
67	943 660 40	Plate	1
68	308 610 99	Bolt	19
69	935 196 40	Plate	2
70	510 314 98	Washer	8
71	939 226 40	Plate	1
72	307 777 99	Bolt	2
73	340 465 99	Washer	2
75	340 111 99	Washer	3
76	996 245 40	Foot board	1
81	946 350 40	Platform	1
82	944 577 40	Battery cover assy. consist. of fig nos. 110-113	2
83	923 507 40	Battery cover assy. consist. of fig nos. 110-113	1
84	943 808 40	Hinge assy. l.h. consist. of fig-nos: 115-118	3
85	943 809 40	Hinge assy. r.h. consist. of fig-nos: 115-118	3
86	308 608 99	Bolt	6
87	510 741 98	Resilient sleeve	6
88	503 341 98	Nut	6
89	947 440 40	Grid	1
90	915 340 40	Grating	2
91	894 621 40	Grating	2
92	947 441 40	Grating	1
93	461 891 40	Grating	1
94	940 925 40	Grating	1
102	961 813 40	Grating	1
103	935 800 40	Grating	1
105	307 757 99	Bolt	4
106	307 760 99	Bolt	6
110	341 271 99	Trigger snap	3
111	970 990 40	Shackle	1
112	472 509 99	Chain	-2
113	511 744 98	Yoke handle	3
115	081 320 40	Hinge	6
116	943 807 40	Hinge pin	6
117	518 151 98	Lubricating nipple	6
118	334 599 99	Nut	6
\|$$93			-2

Komatsu PC3000-6E S/N 06361 parts catalog PDF

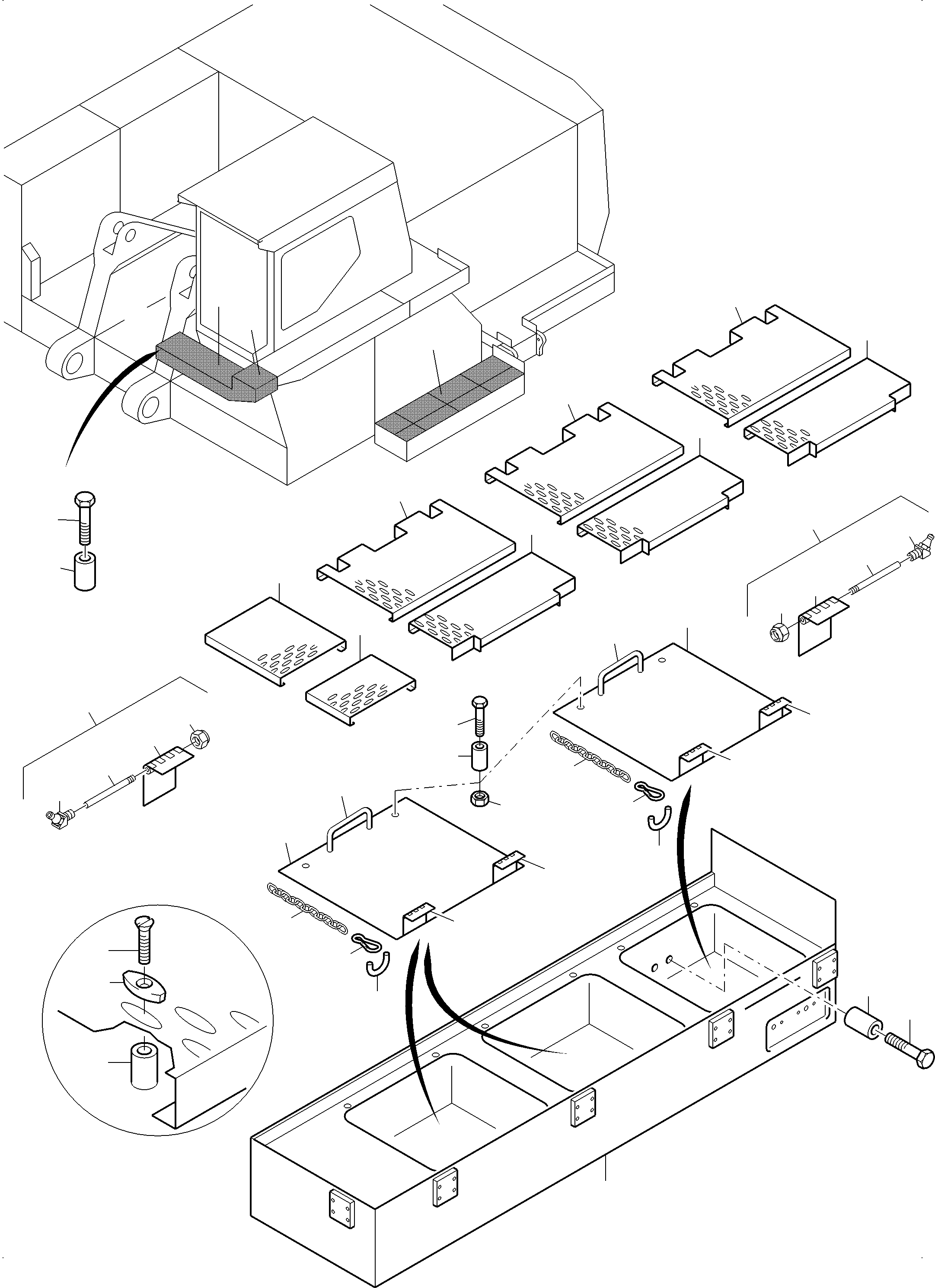

PLATFORM (255-1052d) in PC3000-6E S/N 06361. Diagram image and parts list.
