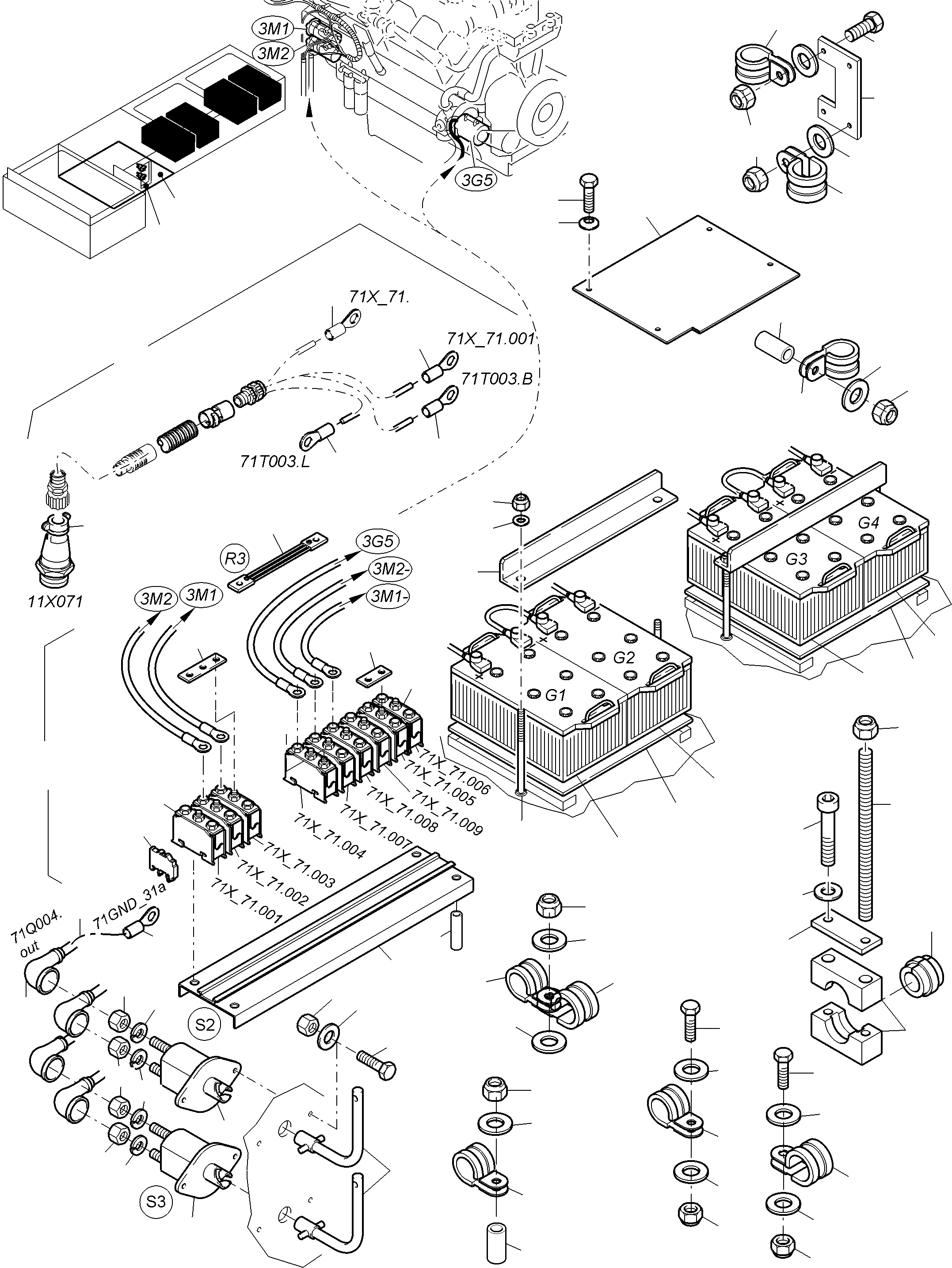

Diagram image 1 of 2

PC3000-6 S/N 06369

006 01 01 01 01 02 02 02 03 04 06 100 100 100 101 101 101 103 104 105 114 115 115 115 116 116 116 117 118 120 17 19 19 19 19 24 25 25 26 27 30 31 32 33 34 35 36 38 39 40 41 41 42 43 43 44 45 46 46 46 47 48 49 49 50 51 52 52 53 54 55 56 60 68 72 72 73 73 74 75 81 98 98 98 98 99

PC3000-6 S/N 06369

#	Part Number	Partname	Quantity
01	507 037 98	Nut	20
02	340 465 99	Washer	20
03	340 463 99	Washer	4
04	963 433 40	Auxiliary resistor assy.	1
05	963 434 40	Cable-Auxiliary resistor assy.	1
06	0443451910	Clamp Ш19	1
07	963 861 40	Cable battery 71G002/71X_71	1
08	963 865 40	Cable battery 71G001/71G002	1
09	963 863 40	Cable battery 71G003/71X_71	1
10	963 860 40	Cable battery 71G004/71X_71	1
11	963 862 40	Cable battery 71G001/71X_71	1
12	963 864 40	Cable battery 71G003/71G004	1
13	963 853 40	Cable battery 71Q004/71X_71.	1
14	963 852 40	Cable battery 71Q003IN/71X_71	1
15	972 009 40	Cable battery 11GND/71X_71	1
16	963 850 40	Cable battery 71Q003OUT/71X_71	1
17	977 509 40	Cable battery 11X071-SHUNT T2	1
19	906 504 40	Battery	4
20	963 849 40	Cable battery 71X_71/71GND	1
24	507 025 98	Nut	4
25	159 984 40	Battery switch	2
26	321 014 99	Screw	4
27	952 891 40	Rubber plate	1
30	502 618 98	Pair of clamps	15
31	534 004 99	Cover plate	9
32	510 452 98	Grommet	5
33	515 628 98	Grommet	14
34	282 678 40	Thread rod 100 lg	2
35	933 371 40	Thread rod 200 lg	4
36	933 370 40	Thread rod 150 lg	4
38	985 537 40	Angle	2
39	332 353 99	Nut	4
40	340 652 99	Washer	4
41	655 357 40	Moulding material	2
42	308 581 99	Bolt	8
43	517 122 98	Lock washer	8
44	510 741 98	Resilient sleeve	4
45	044 355 21 10	Clamp Ш21,5	4
46	507 596 98	Washer	6
47	166 575 40	Profiled joint	1
48	0443452711	Clamp Ш27	5
49	307 779 99	Bolt	3
50	0443451210	Clamp Ш12	1
51	959 060 40	Sectional plate	1
52	941 787 40	Terminal	9
53	654 469 40	Auxiliary resistor	1
54	955 333 40	Cross connection	2
55	955 332 40	Cross connection	1
56	940 673 40	Clamp	6
58	600 209 99	Cable lug 10-95	4
60	056 076 40	Protection cap	19
61	906 943 40	Pole end plate, black	4
62	954 570 40	Battery clamp assy.	4
63	600 227 99	Cable lug	8
65	906 942 40	Pole end plate, red	4
66	954 569 40	Battery clamp assy.	4
68	600 221 99	Cable lug	14
70	906 153 40	Cable lug	8
72	950 137 40	Plug	1
73	950 131 40	Protection cap	1
74	932 518 40	Cable lug	2
75	055 100 40	Cable shoe	2
76	941 777 40	Plate	1
77	174 411 40	Cable strap	2
79	906 941 40	Pole, minus	4
80	518 200 98	Lock washer	8
81	996 603 40	Harness 71GND_31a - 71Q004.out	1
82	906 940 40	Pole, plus	4
92	972 007 40	Cable starter	1
94	963 857 40	Cable starter	1
95	972 004 40	Cable generator	1
96	963 856 40	Cable starter	1
97	963 851 40	Cable starter	1
98	0443452711	Clamp Ш27	40
99	518 080 98	Resilent sleeve	7
100	507 037 98	Nut	16
101	340 465 99	Washer	20
103	307 780 99	Bolt	2
104	519 191 98	Resilient sleeve	2
105	963 884 40	Retainer	1
112	600 208 99	Cable shoe	1
113	932 728 40	Cable lug	1
114	966 673	Gear shift lever	2
115	346 500 99	Lock washer	4
116	332 132 99	Nut	4
117	935 251 40	Cover	1
118	307 773 99	Bolt	4
120	308 431 99	Bolt	4
\|$$89			-2
\|$$90			-2
\|$$91			-2
