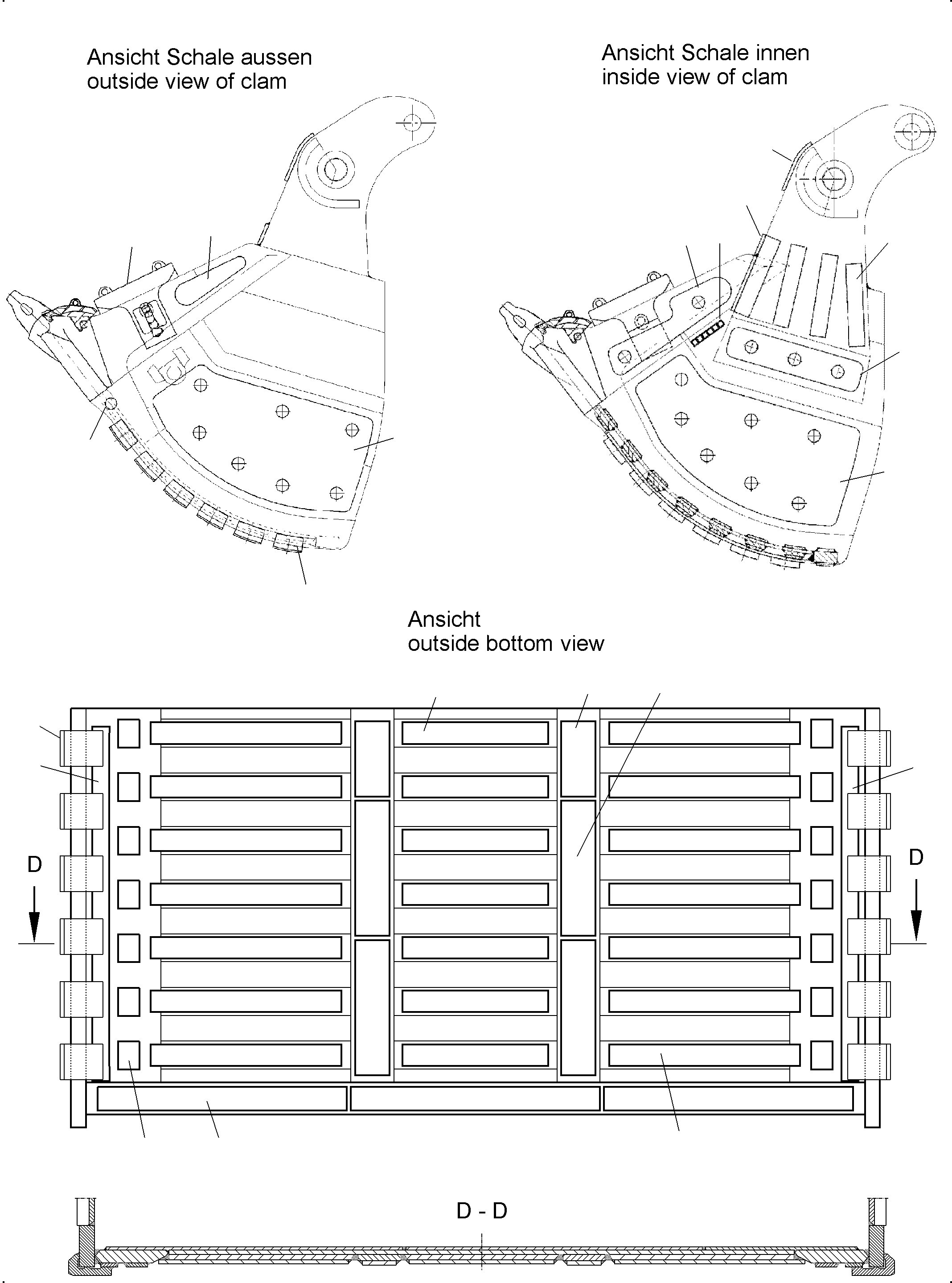

Diagram image 1 of 3

PC3000-6 S/N 06369

01 02 03 04 04 05 06 07 08 09 10 13 14 15 16 17 18 20 21 22 23 24 25

PC3000-6 S/N 06369

01 02 03 04 04 05 06 07 08 09 10 13 14 15 16 17 18 20 21 22 23 24 25

PC3000-6 S/N 06369

01 02 03 04 04 05 06 07 08 09 10 13 14 15 16 17 18 20 21 22 23 24 25

#	Part Number	Partname	Quantity
01	951 107 40	Shroud	2
02	906 104 40	Retainer	2
03	951 016 40	J-bolt assy.	2
04	906 989 40	Bucket heel shroud	12
05	979 104 40	Wear plate	2
06	979 105 40	Wear plate	2
07	947 076 40	Wear plate	2
08	947 074 40	Wear plate	4
09	947 077 40	Wear plate	14
10	946 704 40	Wear plate	14
11	947 072 40	Wear plate	14
12	947 073 40	Wear plate	7
13	947 068 40	Wear plate r.h.	1
14	947 069 40	Wear plate l.h.	1
15	947 075 40	Wear plate	6
16	538 704 40	Wear plate	7
17	946 710 40	Wear plate	2
18	916 154 40	Plate	8
20	906 657 40	Wear button	6
21	946 711 40	Wear plate	2
22	979 101 40	Wear plate	2
23	947 093 40	Plate	2
24	979 102 40	Wear plate	2
25	906 654 40	Chocky bars	2
31	990 742 40	Plate	12
32	990 743 40	Plate	2
33	990 733 40	Plate	2
34	990 744 40	Plate	4
35	990 745 40	Plate	12
36	917 546 40	Wear plate r.h.	1
37	917 547 40	Wear plate l.h.	1
38	990 738 40	Plate	4
39	990 739 40	Plate	2
40	917 552 40	Plate	2
41	917 553 40	Wear plate	2
42	917 554 40	Wear plate	2
43	990 746 40	Wear plate	2
44	946 725 40	Wear plate	4
45	990 736 40	Wear plate	2

Komatsu PC3000-6 S/N 06369 parts catalog PDF

WEAR PACKAGE CLAM AND BACK PANEL HD 16M3 (485-5271) in PC3000-6 S/N 06369. Diagram image and parts list.
