AFE78-AL 930E-5 S/N A40139 - A40140 MOGALAKWENA

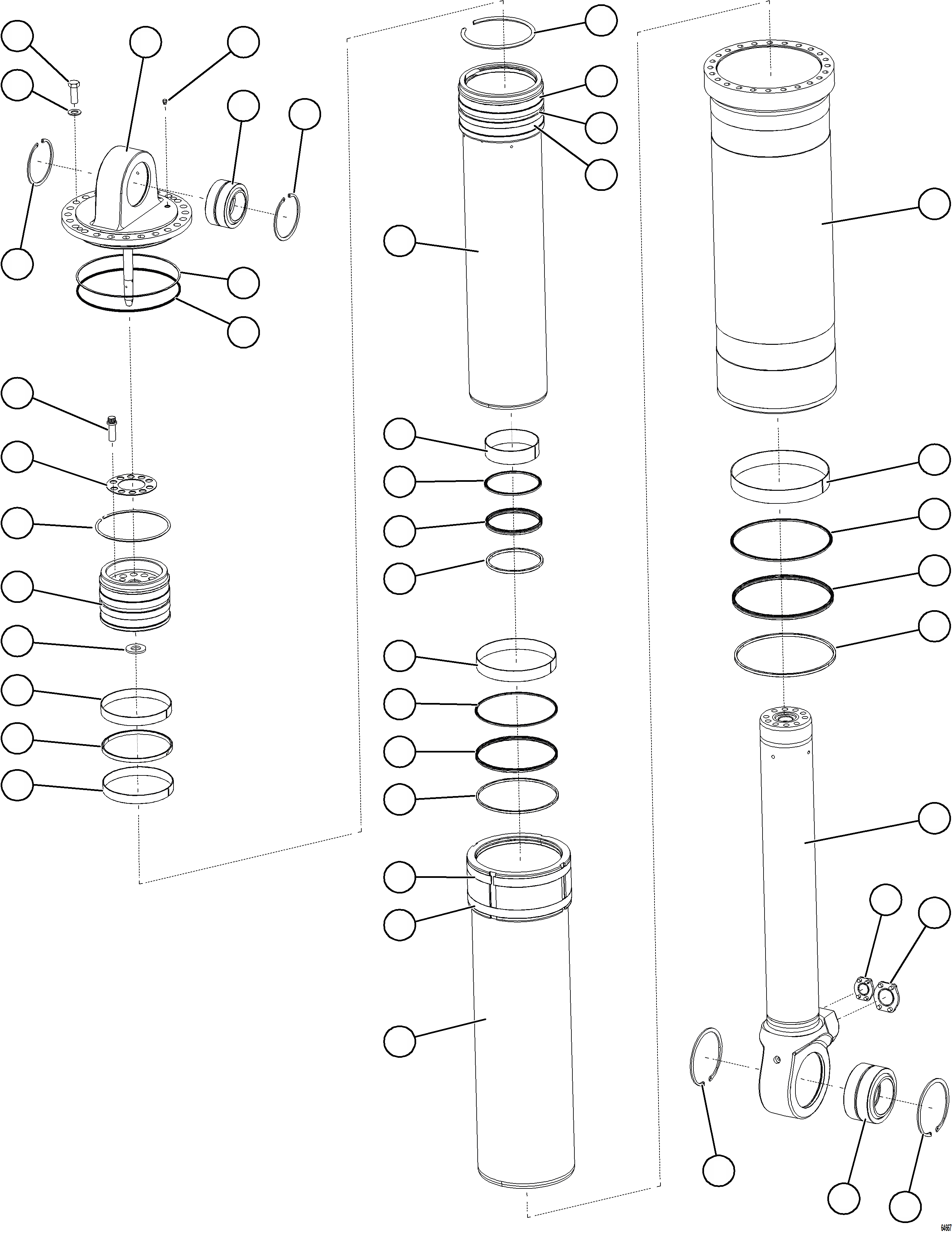

17 36 35 34 33 37 18 31 32 13 14 20 21 20 19 6 5 26 27 28 29 16 15 25 24 23 22 7 8 9 10 11 12 1 2 1 3 4 3 16 30 30 38 39

#	Part Number	Partname	Quantity
1	VN9350	RING, RETAINING (3)	2
2	VL4293	BUSHING, BALL (3)	1
3	VN9353	RING, RETAINING	2
4	PB8931	BUSHING, BALL	1
4	EM8377	HOIST CYLINDER ASSEMBLY	1
5	VM2202	PLUG, VENT	1
6	EL3417	CYLINDER HEAD ASSEMBLY	1
6	EH7939	HEAD	1
6	EL3415	QUILL ASSEMBLY (1)	1
6	EL3414	QUILL (1)	1
6	EB8590	PLUG (1)	2
7	VN9088	CAPSCREW - 7/8" - 9NC X 2 1/2"	24
8	WA0363	FLAT WASHER, HARDENED - 7/8"	24
9	WA1456	RING, BACKUP (2)	1
10	WA0456	O-RING (2)	1
11	WA0879	CAPSCREW, 12 PT- 7/8" - 9NC X 2 1/2"	10
12	EG9090	PLATE	1
13	PC1996	RING, SNAP - ROUND (2)	1
14	EM8378	RETAINER, BEARING	1
15	TY1503	SEAL (2)	1
16	PC1435	BEARING - 9 1/2" (2)	2
17	PB8615	SEAL ASSEMBLY - 9 1/2" (2)	1
18	XB0706	TUBE - 10 1/2"	1
19	PC1050	SNAP RING (2)	1
20	PC1436	BEARING - 11 3/4" (2)	2
21	PB8618	SEAL - 11 3/4" (2)	1
22	PB9802	BEARING - 7" (2)	1
23	PB9910	SEAL, BUFFER - 7" (2)	1
24	PB9800	SEAL, ROD - 7" (2)	1
25	PB9799	WIPER, ROD - 7" (2)	1
26	PB9806	BEARING - 10 1/2" (2)	1
27	PB9911	SEAL, BUFFER - 10 1/2" (2)	1
28	PB9804	SEAL, ROD - 10 1/2" (2)	1
29	PB9803	WIPER, ROD - 10 1/2" (2)	1
30	PC1437	BEARING - 14" (2)	2
31	EL7281	TUBE - 13"	1
32	EL7279	HOUSING	1
33	PB9810	BEARING - 13" (2)	1
34	PB9912	SEAL, BUFFER - 13" (2)	1
35	PB9808	SEAL, ROD - 13" (2)	1
36	PB9807	WIPER, ROD - 13" (2)	1
37	EL5369	ROD, PIVOT	1
38	WB1241	KIT, SHIPPING PLATE (4)	1
39	WB1239	KIT, SHIPPING PLATE (4)	1
NS\|45		NOTE: (1) QUILL EL3414, PLUGS EB8590 & POPPET BALLS	-1
NS\|46		722187 MAY BE SERVICED SEPARATELY.	-1
NS\|47	58E-00-50010	(2) INCLUDED IN 58E-00-50010 HOIST SEAL KIT.	-1
NS\|48	58E-MP-AK040	(3) INCLUDED IN 58E-MP-AK040 UPPER HOIST PIN KIT.	-1
NS\|49		(4) USED FOR SHIPPING AND STORAGE ONLY.	-1

Komatsu AFE78-AL 930E-5 S/N A40139 - A40140 MOGALAKWENA parts catalog PDF

HOIST CYLINDER ASSEMBLY W/BEARINGS EM8376 (64667) in AFE78-AL 930E-5 S/N A40139 - A40140 MOGALAKWENA. Diagram image and parts list.
