PUMP MODULE 1/3 | AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG

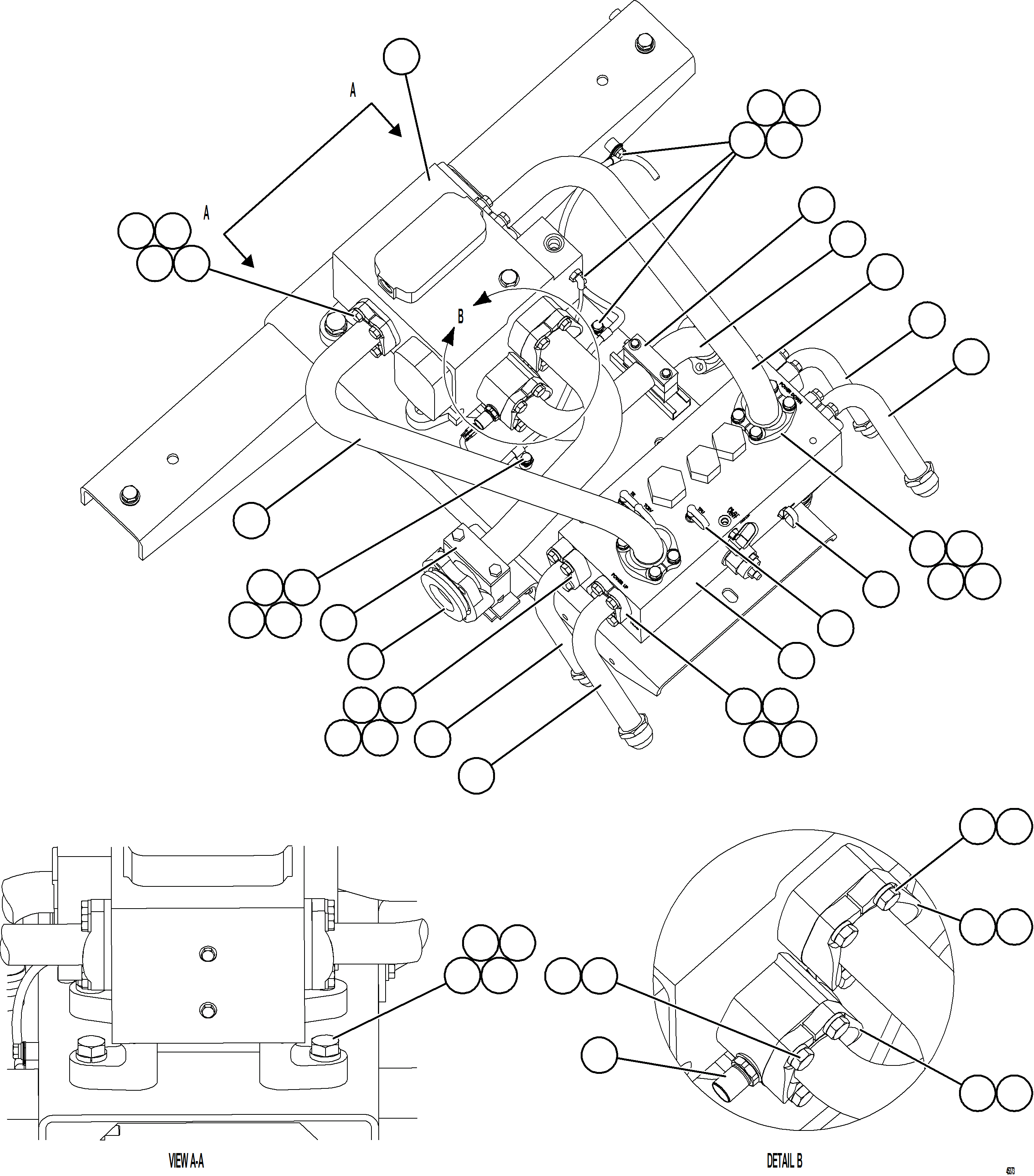

1 28 29 30 31 8 5 6 5 4 2 3 6 15 16 17 7 8 9 10 27 7 12 11 11 14 13 8 7 10 9 8 23 26 25 24 8 15 29 34 33 32 20 19 18 7 8 21 22 9 10

#	Part Number	Partname	Quantity	Reference
1	PB8267	HOIST VALVE ASSEMBLY (SEE INDEX)	1	45402
2	EH3589	TUBE	1
3	WA4712	CLAMP, HYDRA ZORB - 2"	1
4	EC1209	TUBE	1
5	EH3594	TUBE	2
6	EC1880	TUBE	2
7	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	16
8	TR5445	LOCKWASHER - 1/2"	24
9	TF3231	CLAMP, SPLIT FLANGE - 2"	6
10	WA0187	O-RING	3
11	PB6770	COUPLING, MALE QUICK DISCONNECT	5
11	162144	CAP, DUST	1
11	PB5862	COUPLING	1
11	TF5194	O-RING	1
12	PC0522	OVERCENTER MANIFOLD VALVE (SEE INDEX)	1	55589
13	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
14	VG9095	O-RING	1
15	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
16	WA5630	CLAMP, SPLIT FLANGE - 1 1/4"	2
17	VG9096	O-RING	1
18	EC1210	TUBE	1
19	WA5460	CLAMP	1
20	EH3590	TUBE	1
21	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	2
22	WA0232	O-RING	1
23	C1662	CAPSCREW - 7/8" - 9NC X 3"	3
24	VC6293	LOCKWASHER - 7/8"	3
25	WA4731	FLAT WASHER, HARDENED - 7/8"	3
26	VN9693	NUT - 7/8" - 9NC	3
27	58B-06-20290	SENSOR, PRESSURE - 4000 PSI	1
28	58D-90-00700	CLAMP, CUSHIONED - 7/16"	1
29	MM0471	LOCKWASHER - M10	4
30	MM0604	CAPSCREW - M10 X 1.50 X 20	1
31	MM0713	FLAT WASHER, HARDENED - M10	1
32	MM0605	CAPSCREW - M10 X 1.50 X 25	3
33	MM0461	FLAT WASHER - M10	3
34	WB3098	CLAMP, CUSHIONED - 3/8"	3
