AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG

1 3 39 44 2 4 5 6 9 10 11 12 13 14 7 23 24 25 26 8 2 5 15 16 27 43 42 41 39 38 5 37 2 40 17 18 19 20 21 22 2 32 33 5 5 29 30 28 31 5 36 35 34

#	Part Number	Partname	Quantity
1	XA2014	TUBE (5)	1
2	VE1797	FITTING, CONNECTOR (5)	4
3	VE1796	FITTING, ELBOW (5)	1
4	XA2015	TUBE (5)	1
5	XA1995	PLUG	4
6	VE1793	BLEEDER (5)	4
7	XA1993	HOUSING	1
8	XA5604	LINING (6)	2
9	VE6738	SEAL, DUST (1)	4
10	VE2192	RING, BACKUP (1)	4
11	VE6739	O-RING (1)	4
12	XA1996	PISTON ASSEMBLY	4
12	XA1997	PISTON	1
13	VJ7233	GUIDE	1
14	VJ7240	ADJUSTER ASSEMBLY	2
15	XA1998	PIN	1
16	VJ7234	GUIDE, SPRING	1
17	XA1999	SPRING	1
18	VJ7235	RING, RETAINER	1
19	VJ7237	RING, SPECIAL	1
20	VJ7236	RING, LOCK	1
21	VJ7238	WASHER	1
22	VE9287	O-RING (1)	1
23	XA2008	BOOT (1)	2
24	XA2007	BOLT, ADJUSTING	2
25	XA2011	SPRING (3)	2
26	XA4084	BOLT, SHOULDER (3)	2
27	XA2006	RING, SNAP (2)	2
28	XA1994	HOUSING	1
29	XA4338	LOCKWASHER	4
30	VJ0106	LOCKNUT	4
31	XA2003	SPRING, BELLEVILLE (4)	8
32	XA5089	CAP, PARK PISTON (3)	2
33	XA4087	PLUG, PIPE	2
34	XA4266	PISTON (2)	2
35	XA5605	RING, BACKUP (1)/(2)/(3)	2
36	XA2002	O-RING (1)/(2)/(3)	2
37	VS7529	SCREW, BLEEDER	4
38	VE1795	FITTING, TEE (5)	1
39	VE9238	CAPSCREW - 3/4" - 16NF X 2"	12
40	VS5265	END PLATE - RH	2
41	VE5736	O-RING (1)/(3)	2
42	XA5606	RING, BACKUP (1)/(3)	2
43	XA2005	COLLAR, ADJUSTING (2)	2
44	VS5264	END PLATE - LH	2
NS\|46	XA5602	NOTE: (1) INCLUDED IN XA5602 SEAL KIT.	-1
NS\|47	XA5600	(2) INCLUDED IN XA5600 PISTON KIT.	-1
NS\|48	XA5607	(3) INCLUDED IN XA5607 PARKING BRAKE SERVICE KIT.	-1
NS\|49	XA5113	(4) INCLUDED IN XA5113 SPRING KIT.	-1
NS\|50	XA4341	(5) INCLUDED IN XA4341 CROSSOVER TUBE PARTS KIT.	-1
NS\|51	XA5601	(6) INCLUDED IN XA5601 LINING KIT.	-1

Komatsu AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG parts catalog PDF

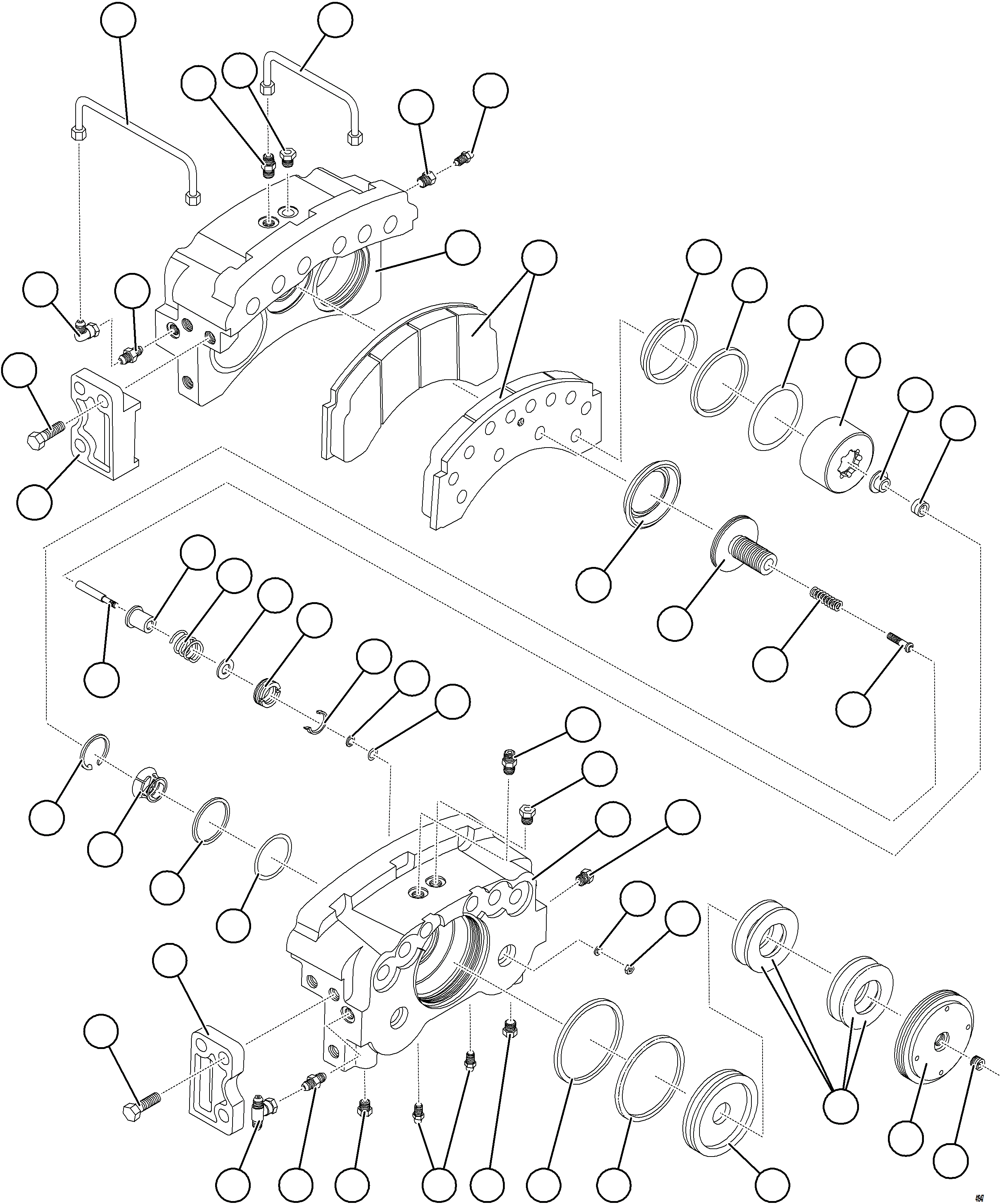

REAR DISC BRAKE ASSEMBLY PC3085 (41947) in AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG. Diagram image and parts list.
