AFE78-BH 930E-5 S/N A40200 LOS PELAMBRES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-98-07000	BLADDER AND GAS VALVE ASSEMBLY (2)/(3)	1
?	58E-98-51000	VALVE, PORT (1)	1
?	XA0067	RING, ANTI-EXTRUSION (1)/(3)	1
?	XA1981	DYNASEAL (2)/(3)	1
?	XA1932	JAM NUT (3)	1
?	XA0071	O-RING (1)/(2)/(3)	1
?	XA0072	RING, BACKUP (1)/(2)/(3)	1
?	XA0073	SPACER (1)	1
?	XA0074	RING, LOCKING (1)	1
?	XA0077	PLUG, BLEED (1)	1
?	58D-98-50100	LABEL, ACCUMULATOR	3
?	58D-98-50110	LABEL, CE/PED	1
?	XA1931	GAS VALVE ASSEMBLY (2)/(3)	1
?	XA1929	WASHER, BACKUP (1)/(2)/(3)	1
?	XA2482	PROTECTOR, PORT (1)	1
?	XA4897	O-RING (1)	1
?	TV9940	PROTECTOR, VALVE (3)	1
?		SHELL (4)	1
?	58E-98-51010	NOTE: (1) INCLUDED IN 58E-98-51010 VALVE KIT.	-1
?	58E-98-07010	(2) INCLUDED IN 58E-98-07010 BLADDER REPAIR KIT.	-1
?	58E-98-07020	(3) INCLUDED IN 58E-98-07020 BLADDER REBUILD KIT.	-1
?		(4) NOT SERVICED SEPARATELY.	-1

Komatsu AFE78-BH 930E-5 S/N A40200 LOS PELAMBRES parts catalog PDF

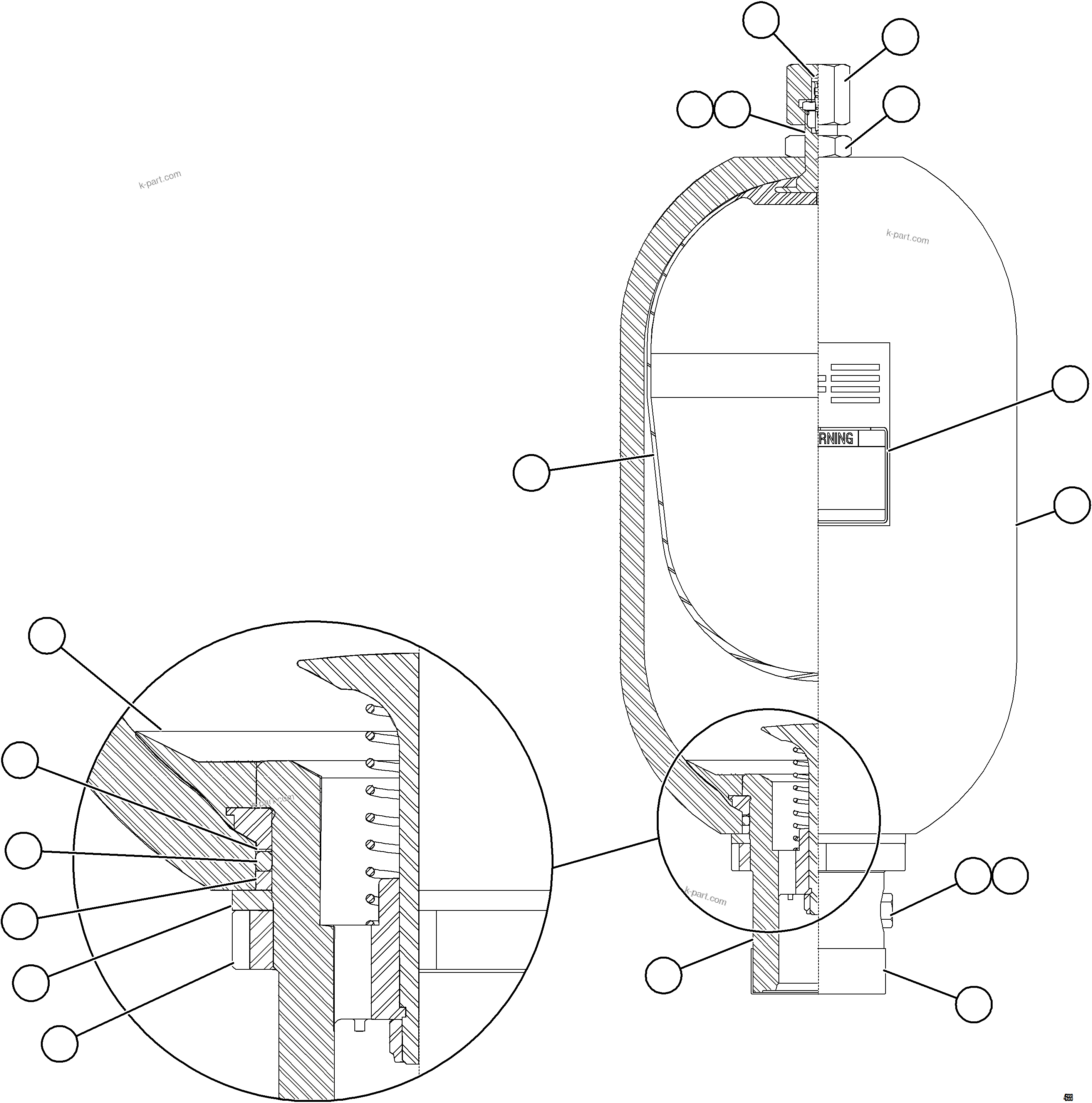

BLADDER ACCUMULATOR ASSM (2.5 GAL) 58E-60-07010 (45968) in AFE78-BH 930E-5 S/N A40200 LOS PELAMBRES. Diagram image and parts list.
