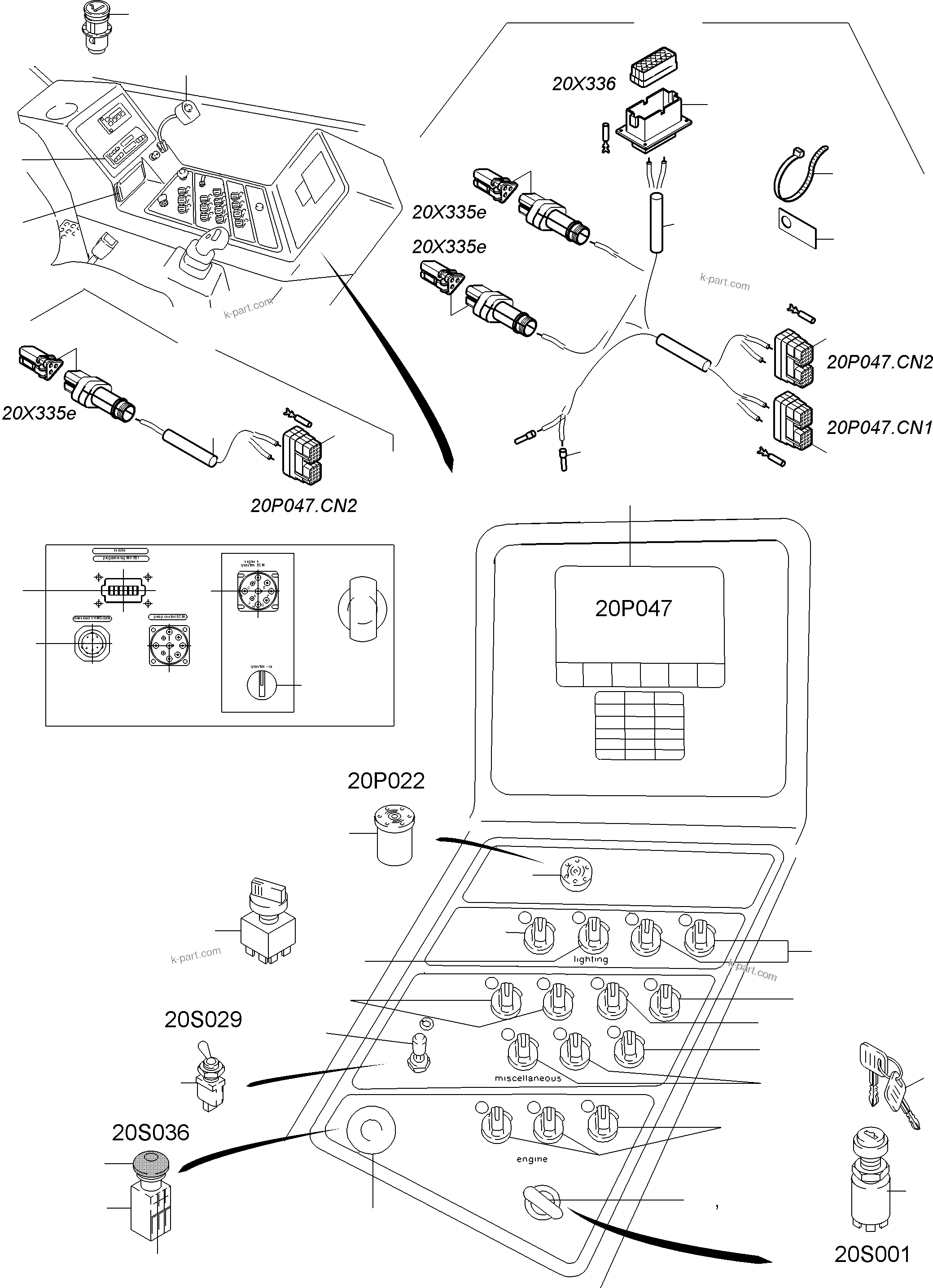

OPERATION PANEL | PC3000-6 S/N 06375 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06375

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	7835324302	MH801-Display	1
?	324 718 40	Potential divider 24V / 12V	1
?	894 577 40	Socket assy	1
?	940 454 40	Socket	1
?	0819219300	Wedge	1
?	0819219933	Plug	1
?	819100770	Plug	20
?	898 669 40	Socket assy.	1
?	324 400 40	Turn switch	1
?	490 518 40	Alarm transmitter	1
?	896 473 40	Toggle switch	1
?	385 213 40	Cigarette lighter	1
?	999 079 40	Key operated switch	1
?	799 810 73	Key	1
?	794 380 73	Lamp	1
?	794 381 73	Bulb	1
?	440 369 40	Turn switch, 3-stage	1
?	324 400 40	Turn switch	6
?	951120 40	Turn switch, 1-stage	5
?	399 702 40	Turn switch	1
?	951 121 40	Turn switch, 2-stage	1
?	655 331 40	Ashtray	1
?	891 033 40	Emergency push button	1
?	655 686 40	Impact key	1
?	655 676 40	Spring element	1
?	635 115 40	Contact element	1
?	635 652 40	Contact element	1
?	790 398 73	Harness Service connector	1
?	790 413 73	Harness 20X335e	1
?	950 435 40	Cable	-2
?	940 908 40	Thermal contraction tube	-2
?	940 916 40	Thermal contraction tube	-2
?	940 454 40	Socket	1
?	0819219300		1
?	0819105320	Pin contact	8
?	958 956 40	Can-bushing	2
?	906 633 40	Plug	1
?	940 453 40	Plug	1
?	906 635 40	Contact	12
?	174 411 40	Cable strap	10
?	941 777 40	Plate	5
?	056 070 40	Cable sleeve 1,0-1,5	10
?	515 213 40	Cable 1,0	-2
?	950 435 40	Cable	-2
?	940 467 40	Insulating tube 14x1	-2
?	950 503 40	Shrinkdown tubing	-2
