Diagram image 1 of 2

PC3000-6 S/N 06375

01 01 03 04 05 05 06 06 07 07 08 08 09 10 10 100 101 102 107 11 11 113 114 115 116 119 12 120 122 126 13 14 15 15 15 15 16 16 16 16 16 17 17 17 17 17 18 18 18 19 20 21 22 22 23 23 23 24 24 24 27 27 28 28 29 30 31 31 31 31 31 32 32 32 33 34 35 35 36 36 37 37 38 39 40 41 42 43 44 45 46 47 47 48 49 50 51 53 54 55 56 57 57 61 62 62 62 65 66 66 67 68 68 68 69 70 71 75 76 77 78 79 80 86 86 86 88 88 90 90 91 92 94 95 97 99

PC3000-6 S/N 06375

#	Part Number	Partname	Quantity	Reference
01		Metering valve	10	991-0323a
03		Metering valve	1	991-0091
04		Metering valve	1	991-0091
05	654 130 40	Protection cap	6
06	308 555 99	Bolt	3
07	517 121 98	Lock washer	3
08	906 981 40	Union	6
09	512 273 98	Socket	1
10	906 984 40	Union	2
11	518 355 98	Hose assy.	1
12	634 481 40	Union	1
13	516 834 98	Union	1
14	374 443 99	Union	1
15	371 271 99	Union nut	12
16	907 080 40	Olive	30
17	515 028 40	Collet	28
18	515 029 40	Hose connection	12
19	936 979 40	Thread plate	1
20	936 978 40	Thread plate	1
21	371 257 99	Union nut	16
22	515 027 40	Hose connection	16
23	371 264 99	Union nut	4
24	906 868 40	Olive	5
25	371 260 99	Union nut	5
26	906 351 40	Olive	5
27	517 122 98	Lock washer	6
28	308 579 99	Bolt	6
29	517 291 98	Union	12
30	374 428 99	Union	4
31	576 160 40	Hose DN 4	-2
32	655 649 40	Cable protection hose DN 10	-2
33	0443551210	Double-Clamp 2xШ12	24
34	0443451210	Clamp Ш12	19
35	340 111 99	Washer	43
36	907 854 40	Thread pin	43
37	340 465 99	Washer	43
38	502 618 98	Clamp set	3
39	534 005 99	Weld on plate	3
40	534 004 99	Cover plate	3
41	504 926 98	Grommet	3
42	308 582 99	Bolt	2
43	517 122 98	Lock washer	6
44	929 431 40	Clamp	4
45	634 978 40	Cover plate	8
46	512 055 98	Thread pin	8
47	334 600 99	Nut	37
48	936 962 40	Pipe	1
49	942 852 40	Pipe	1
50	942 826 40	Pipe	1
51	951 351 40	Hose assy. with synthetic helix	2
53	516 678 98	Hose assy. DN 20x5500	1
54	942 824 40	Angle	4
55	957 650 40	Protection plate	1
56	634 271 40	Union	1
57	504 224 98	Clamp set	6
58	0443453412	Clamp Ш34	1
59	507 121 98	Thread pin	1
60	340 467 99	Washer	2
61	931 897 40	Guard plate	1
62	534 001 99	Cover plate	4
63	534 002 99	Weld on plate	3
64	909 206 40	Cover tube	2
65	307 805 99	Bolt	4
66	517 118 98	Lock washer	12
67	511 773 98	Thread pin	2
68	507 037 98	Nut	43
69	324 672 40	Plug	1
70	0443451510	Clamp Ш15	1
71	907 378 40	Swivel union	1
72	517 561 98	Union	1
75	374 442 99	Union	3
76	957 659 40	Lubrication pipe protection, left	1
77	957 661 40	Lubrication pipe protection, right	1
78	957 653 40	Thread plug	8
79	307 824 99	Bolt	8
80	517 123 98	Lock washer	12
82	931 891 40	Upper Plate	1
83	923 389 40	Lower Plate	1
84	957 639 40	Thread pin	4
85	931 895 40	Pipe	1
86	502 303 98	Socket	6
87	517 148 98	Socket	1
88	654 496 40	Protection cap	10
89	957 640 40	Covering Plate	1
90	655 268 40	Union	4
91	907 151 40	Olive	12
92	371 263 99	Union nut	12
93	517 255 98	Union	1
94	950 511 40	Half clamp	24
95	634 774 40	Cover plate	12
96	907 341 40	Straight swivel union	1
97	516 700 98	Union	1
99	942 851 40	Weld on plate	1
100	652 383 40	Shackle	2
101	428 861 40	Pipe assy. Ш 16	2
102	942 823 40	Lower Plate	1
103	308 612 99	Bolt	24
106	509 308 98	Locking plate	2
107	308 611 99	Bolt	8
113	516 183 98	Socket	1
114	516 173 98	Socket	1
115	551 615 40	Union	1
116	371 861 99	Breech block	1
119	551 456 40	Union	1
120	634 546 40	Union	1
122	517 560 98	Union	10
125	307 830 99	Bolt	4
126	341 754 40	Ultimate pressure control	1

Komatsu PC3000-6 S/N 06375 parts catalog PDF

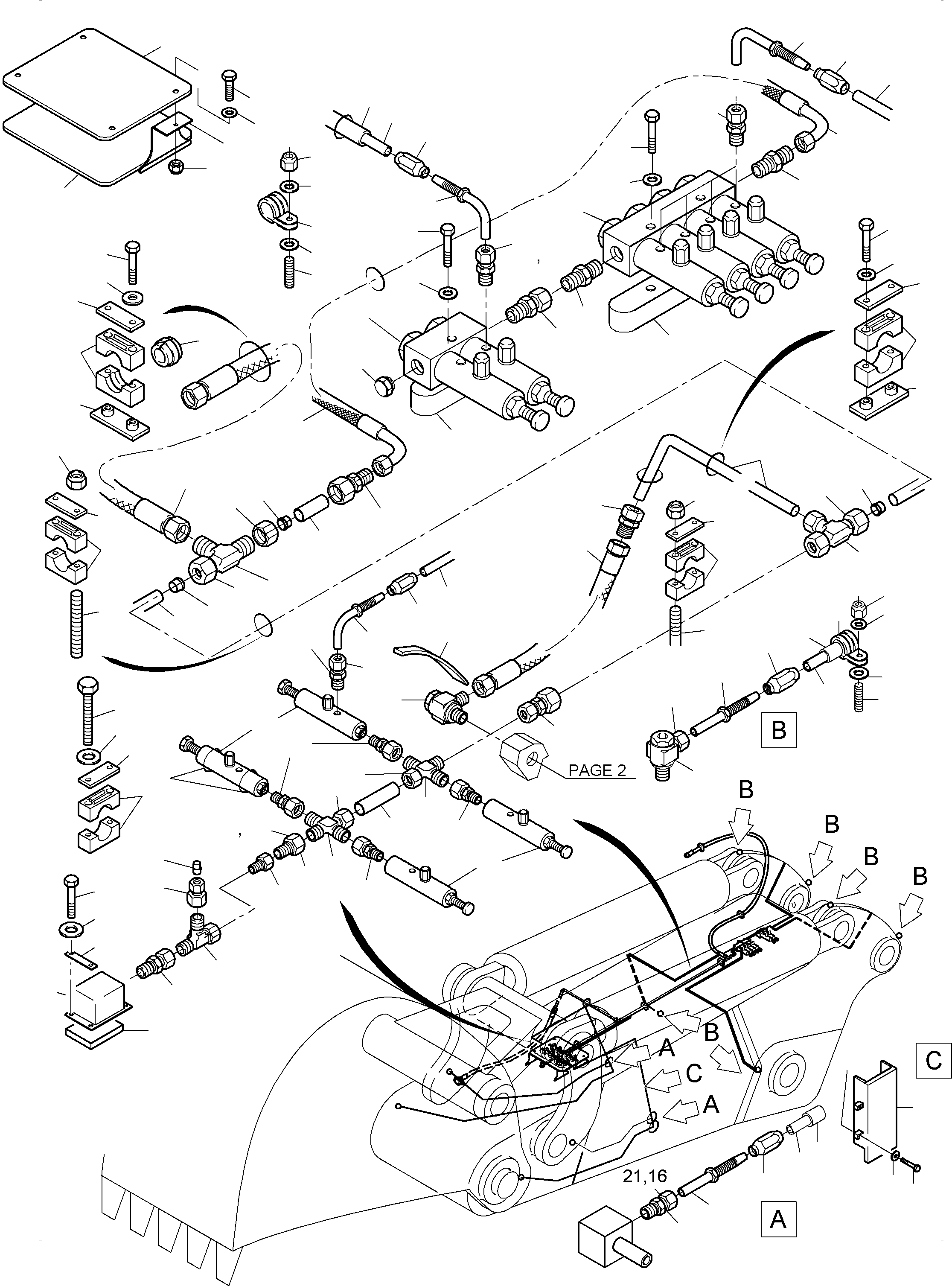

CENTRAL LUBRICATION - STICK BH 4.0 M (485-2372k) in PC3000-6 S/N 06375. Diagram image and parts list.
