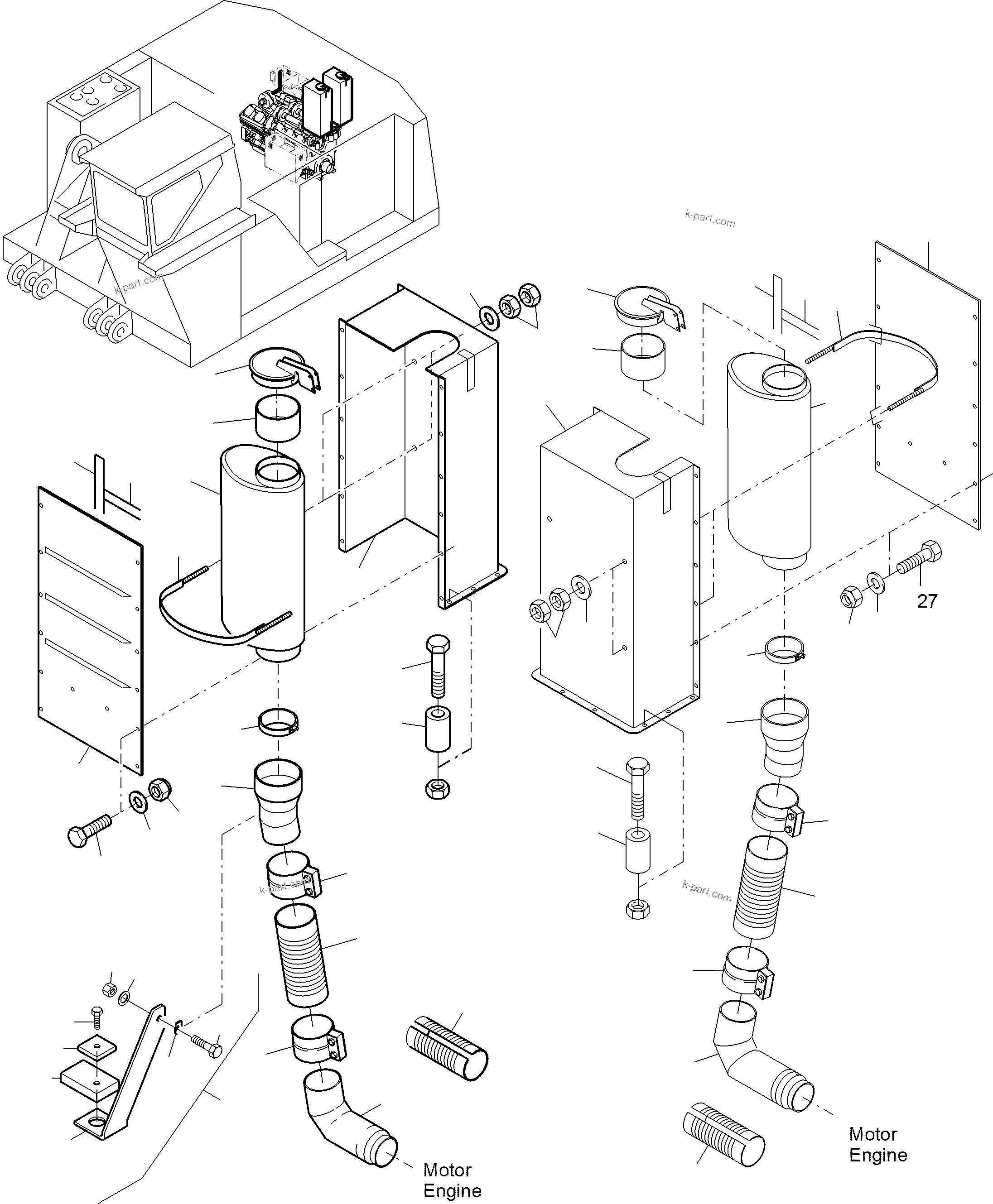

EXHAUST SYSTEM | PC3000-6 S/N 06377 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06377

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	924 373 40	Retainer for muffler	1
?	912 486 40	Holding device, muffler	1
?	936 518 40	Cover plate	1
?	935 272 40	Cover plate	1
?	894 258 40	Strap retainer	4
?	957 345 40	Exhaust pipe	1
?	957 350 40	Exhaust pipe	1
?	957 342 40	Exhaust pipe	1
?	957 339 40	Exhaust pipe	1
?	100 061 97	Insulation mat set	2
?	950 594 40	Strap retainer	2
?	906 474 40	Clamp	4
?	941 668 40	Weather protecting cap	2
?	894 268 40	Pipe	2
?	210 976 40	Muffler	2
?	950 205 40	Flex pipe	2
?	954 035 40	Foam profile	4
?	954 036 40	Foam profile	2
?	510 733 98	Resilient sleeve	16
?	307 779 99	Bolt	24
?	502 434 98	Bolt	16
?	507 037 98	Nut	28
?	332 336 99	Nut	16
?	340 465 99	Washer	28
?	340 688 99	Washer	8
?	979 191 40	Modification Kit Exhaust System	1
?	967 376 40	Plate	2
?	967 377 40	Retainer	2
?	967 378 40	Plate	2
?	967 374 40	Weald on thread plate	2
?	500 853 98	Bolt	2
?	340 508 99	Washer	2
?	307 598 99	Bolt	2
?	332 114 99	Nut	4
