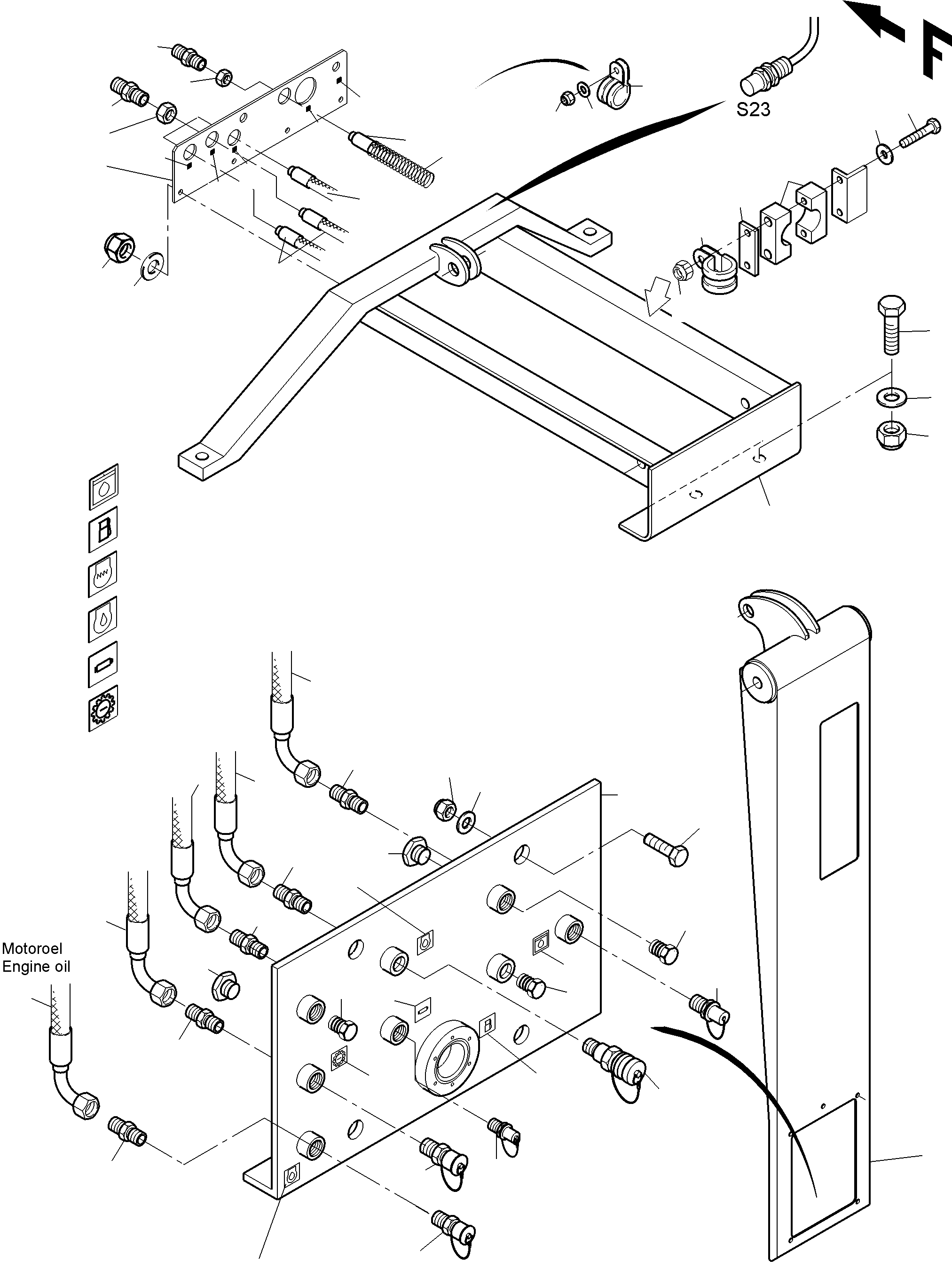

Diagram image 1 of 4

PC3000-6 S/N 06377

100 102 104 104 106 107 108 109 111 112 113 113 115 116 117 117 27 34 40 61 62 63 64 69 69 69 69 69 70 70 71 74 75 76 77 78 79 80 81 82 83 84 84 84 85 85 85 86 86 86 87 87 88 88 88 89 89 89 91 91 91 91 94 95 97 97 98 98 99

PC3000-6 S/N 06377

#	Part Number	Partname	Quantity	Reference
01	953 217 40	Plate	1
02	948 709 40	Flange	1
03	518 516 98	Hose assy. DN 40x2900	1
04	517 833 98	Hose assy. DN 20x3500	1
05	517 834 98	Hose assy. DN 20x6000	1
06	517 835 98	Hose assy. DN 20x6100	1
07	515 482 40	Hose assy. DN 20x3400	1
08	518 517 98	Hose assy. DN 12x2600	1
09	518 518 98	Hose assy. DN 06x2600	1
10	941 866 40	Suction hose	1
11	655 294 40	Union	1
12	516 160 98	Socket	1
13	324 571 40	Adapter	1
14	324 572 40	Washer	1
15	506 371 98	Clamp set	2
16	517 819 98	Pair of clamps	2
17	502 626 98	Grommet	2
18	534 008 99	Cover plate	2
19	518 200 98	Lock washer	4
20	0443453411	Clip D 34	1
21	0443452711	Clip D 27	7
22	0443451910	Clip D 19	4
23	0443451410	Clip D 14	4
24	518 557 98	Clamp	4
25	518 580 98	Hose clamp	3
26	308 423 99	Bolt	2
27	308 426 99	Bolt	2
28	502 879 98	Bolt	2
29	308 599 99	Bolt	2
30	308 577 99	Bolt	1
31	307 779 99	Bolt	4
32	319 133 99	Screw	6
33	341 419 99	Screw	6
34	334 601 99	Nut	4
35	334 600 99	Nut	2
36	507 037 98	Nut	8
37	516 092 98	Resilient sleeve	1
38	510 741 98	Resilient sleeve	2
39	516 142 98	Resilient sleeve	1
40	340 469 99	Washer	8
41	340 465 99	Washer	9
42	952 896 40	Rubber plate	1
43	952 898 40	Rubber plate	2
44	170 427 40	Cable strap	25
45	518 391 98	O-ring	1
46	896 748 40	Filler neck (fuel)	1
47	941 280 40	Fuel receiver	1
48	324 436 40	Cap	1
49	953 235 40	Bleeder pipe	1
50	941 867 40	Suction hose	1
51	167 693 40	Flex. Header	-2
61	980 554 40	Supporting beam	1
62	980 555 40	Lifting beam	1
63	980 553 40	Refueling Plate	1
64	952 851 40	Plate	1
65	903 221 40	Pin	1
66	515 827 98	Pin	2
67		Hydraulic cylinder	1	991-0471
68	953 209 40	Hose DN 51	1
69	898 136 40	Hose D 20	3
70	953 212 40	Hose DN 20	1
71	903 224 40	Hose D 20	1
72	516 039 98	Hose assy. DN 10x600	1
73	907 804 40	Hose protection	-2
74	907 753 40	Hose protection	-2
75	341 711 40	Filler neck	1
76	360 856 40	Cap	1
77	341 710 40	Filler neck	1
78	270 861 40	Filler, hydraulic-oil	1
79	270 862 40	Cap	1
80	323 905 40	Filler, engine oil	1
81	324 437 40	Cap	1
82	323 906 40	Filler neck (water)	1
83	324 438 40	Cap	1
84	515 877 98	Graphical symbol (hydraulic oil)	2
85	515 872 98	Graphical symbol (fuel)	2
86	515 875 98	Graphical symbol (cooling water)	2
87	515 873 98	Graphical symbol (engine oil)	1
88	515 878 98	Graphical symbol (greasing)	2
89	515 879 98	Graphical symbol (pinion greasing)	2
90	374 415 99	Socket	1
91	374 409 99	Socket	5
92	517 290 98	Union	1
93	517 820 98	Socket	1
94	516 618 98	Union	4
95	516 962 98	Union	2
96	516 163 98	Socket	1
97	360 873 40	Plug	3
98	324 550 40	Plug	2
99	940 877 40	Locking plug	1
100	941 678 40	Clamp	2
101	517 819 98	Pair of clamps	2
102	534 008 99	Cover plate	4
103	517 118 98	Lock washer	6
104	0443452511	Clip D 25,5	2
105	507 558 98	Nut	1
106	506 954 98	Nut	4
107	509 267 98	Nut	2
108	307 824 99	Bolt	4
109	502 879 98	Bolt	2
110	308 599 99	Bolt	6
111	334 601 99	Nut	4
112	334 600 99	Nut	2
113	507 037 98	Nut	5
114	500 995 98	Washer	4
115	340 469 99	Washer	4
116	340 467 99	Washer	1
117	340 465 99	Washer	6
118	342 125 99	Cotter pin	4
120	952 894 40	Rubber plate	5
122	501 303 98	Union	1
123	516 044 98	Hose assy. DN 10x650	1
125	958 080 40	Adapter	1
126	951 192 40	Pipe burst valve	1
127	518 904 98	Seal ring	1
131	516 235 98	Socket	1
132	906 930 40	Union	1
133	516 160 98	Socket	1
134	516 281 98	Socket	1
135	515 882 98	Union	1
136	654 458 40	Valve	2
137	551 345 40	Union	1
138	518 123 98	Hose assy. DN 20x3100	1
141	374 438 99	Socket	2
142	654 892 40	Union	2
143	517 056 98	Union	1
144	516 159 98	Socket	1
145	515 866 98	Union	1
146	551 404 40	Union	2
147	305 992 99	Ball cock	1
148	517 808 98	Hose assy. DN 16x210	1
151	948 270 40	Cover	1
152	948 277 40	Flange	1
153	941 281 40	Fuel receiver	1
154	941 283 40	Sensor	1
155	941 282 40	Bleeder valve	1
156	518 391 98	O-ring	1
157	504 190 98	O-ring	1
158	518 393 98	Union	1
159	518 392 98	Union	1
160	374 415 99	Socket	1
161	308 941 99	Bolt	6
171	517 773 98	Hose assy. DN 10 x 5100	1
172	516 393 98	Hose assy. DN 10 x 5300	1
173	517 269 98	Socket	2
174	504 369 98	Union	2
175	044 355 15 10	Clip	1

Komatsu PC3000-6 S/N 06377 parts catalog PDF

REFUELING EQUIPMENT (485-2306f) in PC3000-6 S/N 06377. Diagram image and parts list.
