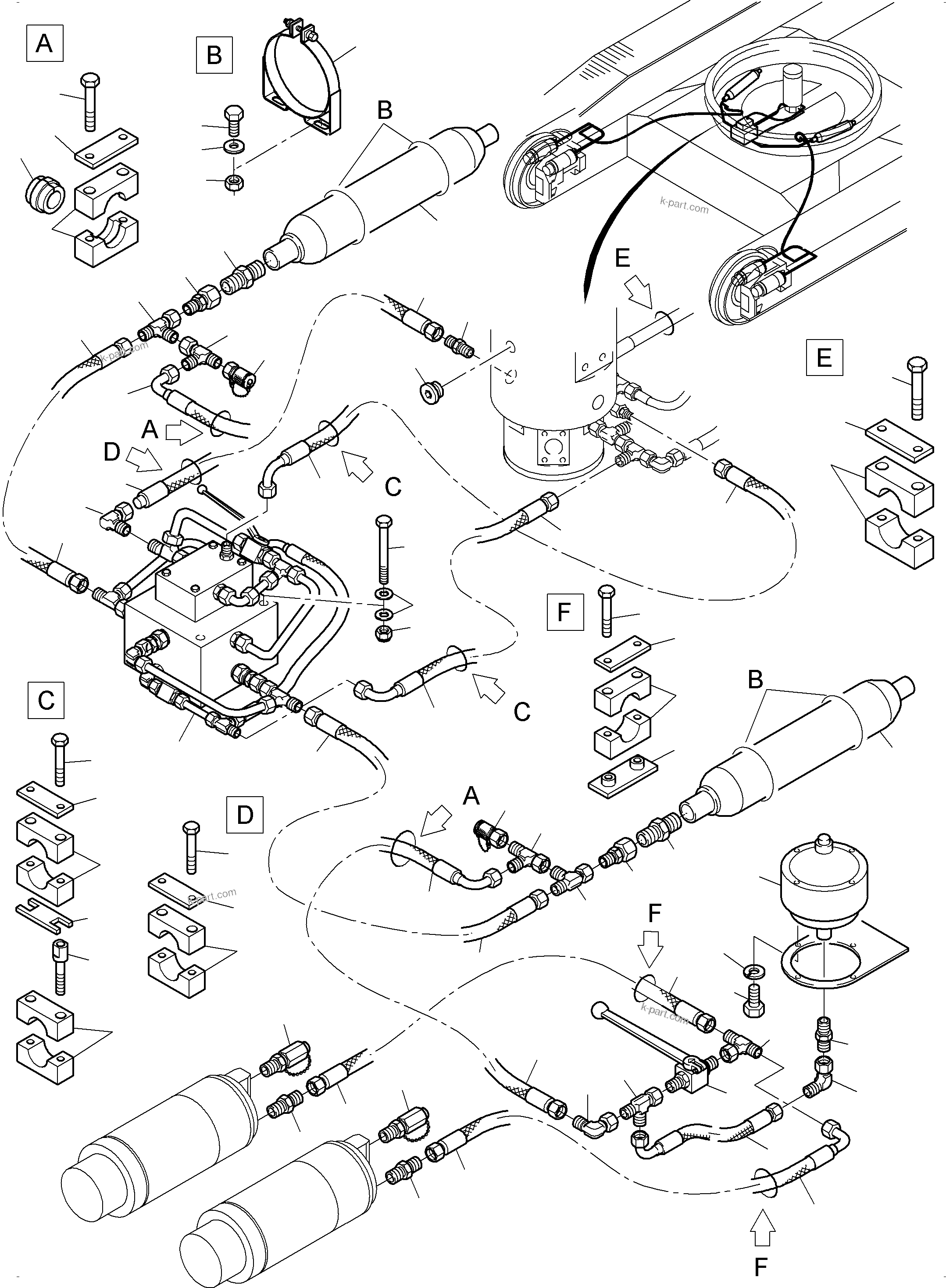

TRACK ADJUSTING | PC3000-6 S/N 06377 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06377

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Valve block assy.	1	485-3190d
?	635 991 40	Clamp	4
?	634 297 40	Union	2
?	374 419 99	Socket	2
?	004 132 98	Coupling	2
?	517 121 98	Lock washer	16
?	332 334 99	Nut	4
?	514 103 98	Bolt	4
?	516 180 98	Socket	4
?	308 556 99	Bolt	8
?	332 332 99	Nut	8
?	576 299 40	Hose assy.	1
?	517 715 98	Hose assy. DN 16x1300	1
?	517 118 98	Lock washer	8
?	512 492 98	Hose assy. DN 16x1000	2
?	517 593 98	Hose assy. DN 16x3500	2
?	576 385 40	Hose assy. DN 12x1500	1
?	374 413 99	Socket	1
?	202 970 40	Plug	2
?	516 165 98	Socket	1
?	461 133 40	Ball cock	2
?	516 165 98	Socket	4
?	374 413 99	Socket	4
?	516 180 98	Socket	2
?	534 002 99	Weld-on plate	4
?	534 001 99	Cover plate	4
?	308 579 99	Bolt	8
?	517 578 98	Hose assy. DN 16x920	2
?	517 579 98	Hose assy. DN 16x640	2
?	515 812 98	Coupling	4
?	551 715 40	Hose assy. DN 16x390	2
?	374 418 99	Socket	2
?	502 682 98	Clamp set	8
?	516 172 98	Socket	2
?	517 121 98	Lock washer	4
?	307 752 99	Bolt	4
?	509 057 98	Clamp set	8
?	504 986 98	Screw	8
?	511 856 98	Cover plate	6
?	308 536 99	Bolt	12
?	509 058 98	Clamp set	2
?	518 060 98	Clamp set	2
?	511 858 98	Cover plate	2
?	307 740 99	Bolt	4
?	518 032 98	Clamp set	2
?	515 628 98	Grommet	2
?	534 004 99	Cover plate	2
?	308 581 99	Bolt	4
?	504 985 98	Locking plate	4
?		Accumulator	2
?		Diaphragm-type accumulator	2
