Diagram image 1 of 4

PC3000-6 S/N 06377

01 11 15 15 15 16 17 17 18 19 20 23 25 26 26 26 27 27 28 30 31 33 34 36 37 37 40 40 41 43 52 53 54 64 66 73 73

PC3000-6 S/N 06377

01 11 15 15 15 16 17 17 18 19 20 23 25 26 26 26 27 27 28 30 31 33 34 36 37 37 40 40 41 43 52 53 54 64 66 73 73

PC3000-6 S/N 06377

01 11 15 15 15 16 17 17 18 19 20 23 25 26 26 26 27 27 28 30 31 33 34 36 37 37 40 40 41 43 52 53 54 64 66 73 73

PC3000-6 S/N 06377

01 11 15 15 15 16 17 17 18 19 20 23 25 26 26 26 27 27 28 30 31 33 34 36 37 37 40 40 41 43 52 53 54 64 66 73 73

#	Part Number	Partname	Quantity
01	978 905 40	Bullclam bucket stick	1
02	970 713 40	Flanged bush	4
03	907 022 40	Seal ring	4
04	970 724 40	Freeze-in bushing	2
05	969 054 40	Freeze-in bushing	2
06	907 020 40	Seal ring	4
07	978 915 40	Pipe assy. Ш50	1
08	978 914 40	Pipe assy. Ш50	1
09	519 453 98	Flange seal	12
10	319 292 99	Bolt	32
11	332 355 99	Nut	68
12	319 288 99	Bolt	16
13	978 923 40	Pipe assy. Ш50	1
14	978 924 40	Pipe assy. Ш50	1
15	519 454 98	Flange seal	8
16	319 313 99	Bolt	8
17	504 662 98	Nut	16
18	655 071 40	Flange	2
19	319 309 99	Bolt	8
20	180 113 40	Plug	2
21	502 976 98	Clamp set	32
22	502 977 98	Clamp set	2
23	534 008 99	Cover plate	37
24	308 599 99	Bolt	28
25	517 118 98	Lock washer	116
26	517 124 98	Lock washer	16
27	307 615 99	Bolt	8
28	517 123 98	Lock washer	4
29	913 794 40	Plate	1
30	504 445 98	Clamp set	4
31	307 582 99	Bolt	4
33	502 926 98	Bolt	8
34	332 353 99	Nut	48
36	519 066 98	Bolt	48
37	520 227 98	Hose assy. (LHS: K270 ?) DN 50x3150	1
38	516 300 98	Hose assy. DN 40x3600	2
39	515 908 98	Hose assy. DN 40x2650	2
40	978 906 40	Pipe assy. Ш65	1
41	978 904 40	Pipe assy. Ш65	1
42	923 251 40	Ring	4
43	319 305 99	Bolt	8
52	513 303 98	Distribution Block	2
53	2A26211910	Bracket	1
54	2A26211920	Bracket	1
55	980 575 40	Pipe assy. Ш50	1
56	980 577 40	Pipe assy. Ш50	1
57	978 912 40	Pipe assy. Ш50	1
58	978 913 40	Pipe assy. Ш50	1
59	980 576 40	Pipe assy. Ш50	1
60	980 578 40	Pipe assy. Ш50	1
61	978 921 40	Pipe assy. Ш50	1
62	978 922 40	Pipe assy. Ш50	1
64	2A26211930	Plate	2
65	308 423 99	Bolt	32
66	520 228 98	Hose assy. (RHS: K90 ?) DN 50x3150	1
71	561 548 40	Angle assy.	4
72	301 894 40	Angle	4
73	978 930 40	Plate	2
74	534 009 99	Weld on plate	6
75	952 761 40	Retainer assy.	1
80	934 617 40	Pin	2
81	650 426 40	Axle stirrup	2
82	308 407 99	Bolt	4
83	340 471 99	Washer	4
\|$$65			-2
\|$$66			-2
\|$$67			-2
\|$$68			-2
\|$$69			-2
\|$$70			-2
\|$$71			-2
\|$$72			-2
\|$$73			-2
\|$$74			-2
\|$$75			-2
\|$$76			-2
\|$$77			-2

Komatsu PC3000-6 S/N 06377 parts catalog PDF

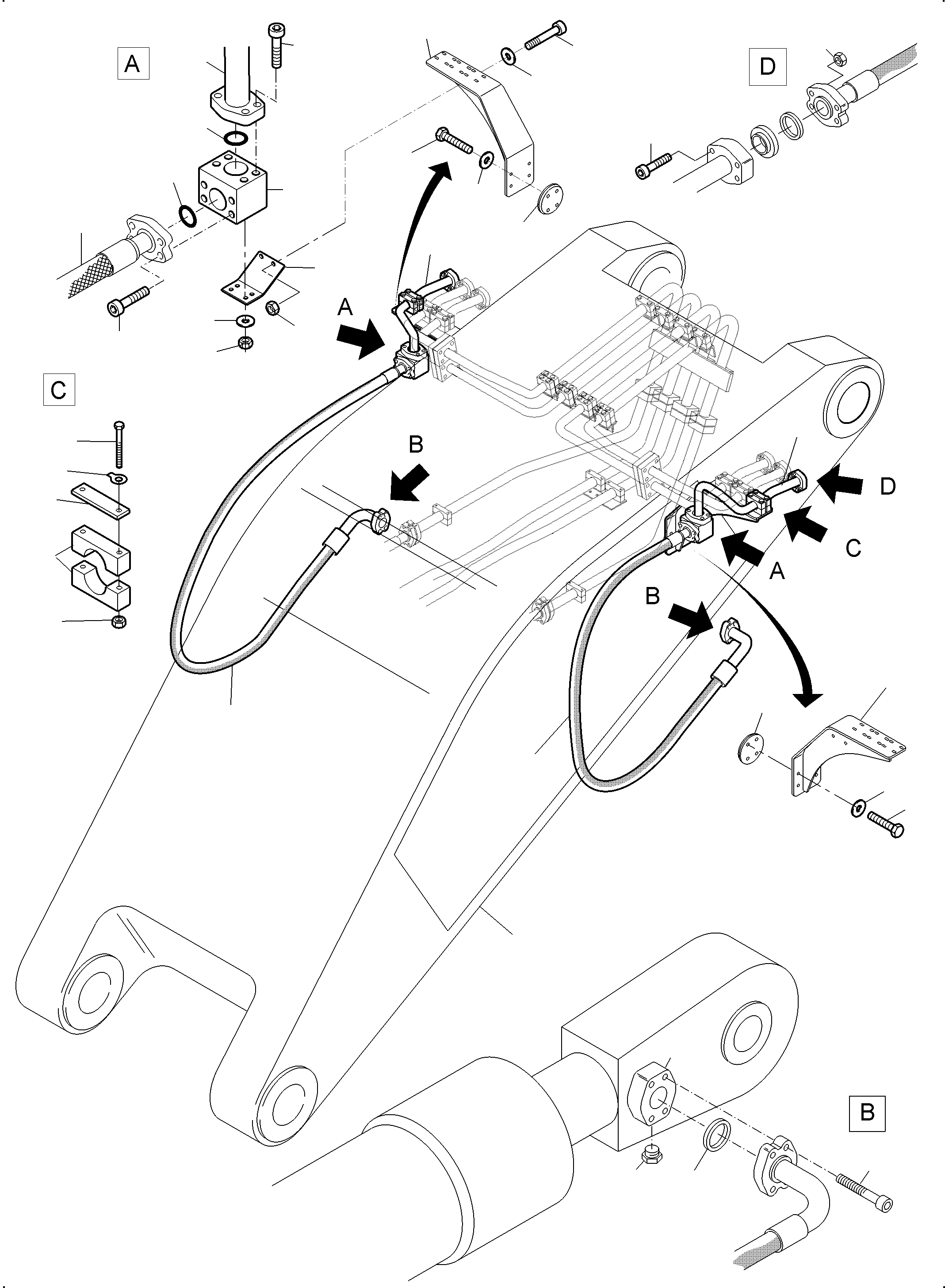

BULLCALM BUCKET STICK 4.3 M (485-4200i) in PC3000-6 S/N 06377. Diagram image and parts list.
