Diagram image 1 of 3

PC3000-6 S/N 06377

02 03 04 05 06 07 08 09 10 11 12 13 134 138 15 18 19 19 20 20 21 22 22 22 22 23 23 23 23 24 26 27 28 29 29 29 30 31 32 33 34 35 36 37 38 39 40 41 41 42 43 44 45 46 51 52 53 54 55 56 57 58 59 65 66 67 68 69 70 71 72 78 78 79 80 80 81 82 83 87 93 94 95 96 97 98

PC3000-6 S/N 06377

#	Part Number	Partname	Quantity
02	927 620 40	Rail	1
03	961 828 40	Rail	1
04	925 234 40	Hand rail	1
05	927 628 40	Rail	1
06	927 600 40	Emergency ladder	1
07	927 637 40	Rail	1
08	927 634 40	Hand rail	1
09	937 953 40	Rail	1
10	935 145 40	Rail	1
11	935 148 40	Rail	1
12	993 280 40	Rail	1
13	961 821 40	Hand rail	2
15	961 822 40	Rail	1
18	927 624 40	Base board	1
19	518 266 98	Clamp set	114
20	534 008 99	Cover plate	114
21	308 615 99	Bolt	92
22	512 545 98	Washer	140
23	334 600 99	Nut	136
24	308 434 99	Bolt	120
26	308 605 99	Bolt	18
27	510 744 98	Resilient sleeve	14
28	307 339 99	Bolt	4
29	517 118 98	Lock washer	126
30	104 406 42	Rail	1
31	104 405 42	Rail	1
32	915 304 40	Rail	1
33	937 961 40	Rail Oilcooler	1
34	534 056 98	Clamp Set	8
35	534 004 99	Cover plate	8
36	308 583 99	Bolt	16
37	518 547 98	Lock washer	16
38	105 780 42	Base board	1
39	915 336 40	Plate	1
40	937 955 40	Rail	1
41	915 320 40	Plate	2
42	925 231 40	Plate	1
43	915 318 40	Plate	1
44	506 728 98	Bolt	8
45	307 805 99	Bolt	10
46	915 305 40	Rail	1
51	991 721 40	Emergency jack	1
52	991 725 40	Stop point cpl.	2
53	991 724 40	Cover plate	1
54	534 009 99	Weld on plate	1
55	504 004 98	Clamp set	1
56	950 498 40	Heave point	1
57	308 616 99	Bolt	2
58	334 600 99	Nut	4
59	081 474 40	Hood fastener	1
60	316 216 99	Washer	4
61	936 575 40	Ladder	1
65	925 759 40	Rail	1
66	996 209 40	Rail	1
67	925 702 40	Rail	1
68	925 701 40	Angle	1
69	925 704 40	Angle	1
70	996 212 40	Angle	1
71	925 706 40	Angle	1
72	925 707 40	Angle	1
73	996 206 40	Rail	1
74	956 950 40	Catch	1
75	956 952 40	Hinge, kpl. right	2
76	969 895 40	Door Emergency ladder r.h.	1
77	996 234 40	Footboard	1
78	929 110 40	Plate	2
79	929 111 40	Plate	1
80	929 112 40	Plate	2
81	929 113 40	Plate	1
82	506 728 98	Bolt	12
83	307 806 99	Bolt	4
85	302 548 99	Bolt	15
87	307 802 99	Bolt	2
93	512 884 98	Half clamp	6
94	534 004 99	Cover plate	18
95	308 589 99	Bolt	12
96	350 768 99	Washer	12
97	507 037 98	Nut	12
98	504 818 98	Half clamp	3
101	472 509 99	Chain	-2
102	341 271 99	Trigger snap	2
103	191 538 40	Shackle	4
105	946 102 40	Catwalk to boom	1
106	946 110 40	Grid	1
107	946 111 40	Grid	1
108	317 319 40	Threaded block	8
109	317 318 40	Wing nut, plastic	8
110	502 354 98	Bolt	8
122	996 226 40	Rope ladder	1
123	504 004 98	Clamp set	1
124	991 727 40	Clamp	2
125	991 724 40	Cover plate	2
126	950 498 40	Heave point	2
127	308 623 99	Screw	4
128	334 600 99	Nut	4
129	340 467 99	Washer	4
130	534 004 99	Cover plate	30
134	942 495 40	Rail Oilcooler	1
135	996 215 40	Emergency ladder r.h.	1
138	980 579 40	Rail	1
139	942 584 40	Rail	1
140	942 496 40	Rail	1
142	517 096 98	Resilient sleeve	7
241	308 269 99	Bolt	12
242	340 465 99	Washer	12
221	507 037 98	Nut	12
243	504 818 98	Clamp set	5
240	512 884 98	Clamp set	6
248	992 441 40	Weld on plate assy.	2
246	517 122 98	Lock washer	8
247	308 575 99	Bolt	8
249	461 817 40	Handle	2
250	318 390 99	Bolt	2
\|$$114			-2
\|$$115			-2
\|$$116			-2
\|$$117			-2
\|$$118			-2
\|$$119			-2
\|$$120			-2
\|$$121			-2
\|$$122			-2

Komatsu PC3000-6 S/N 06377 parts catalog PDF

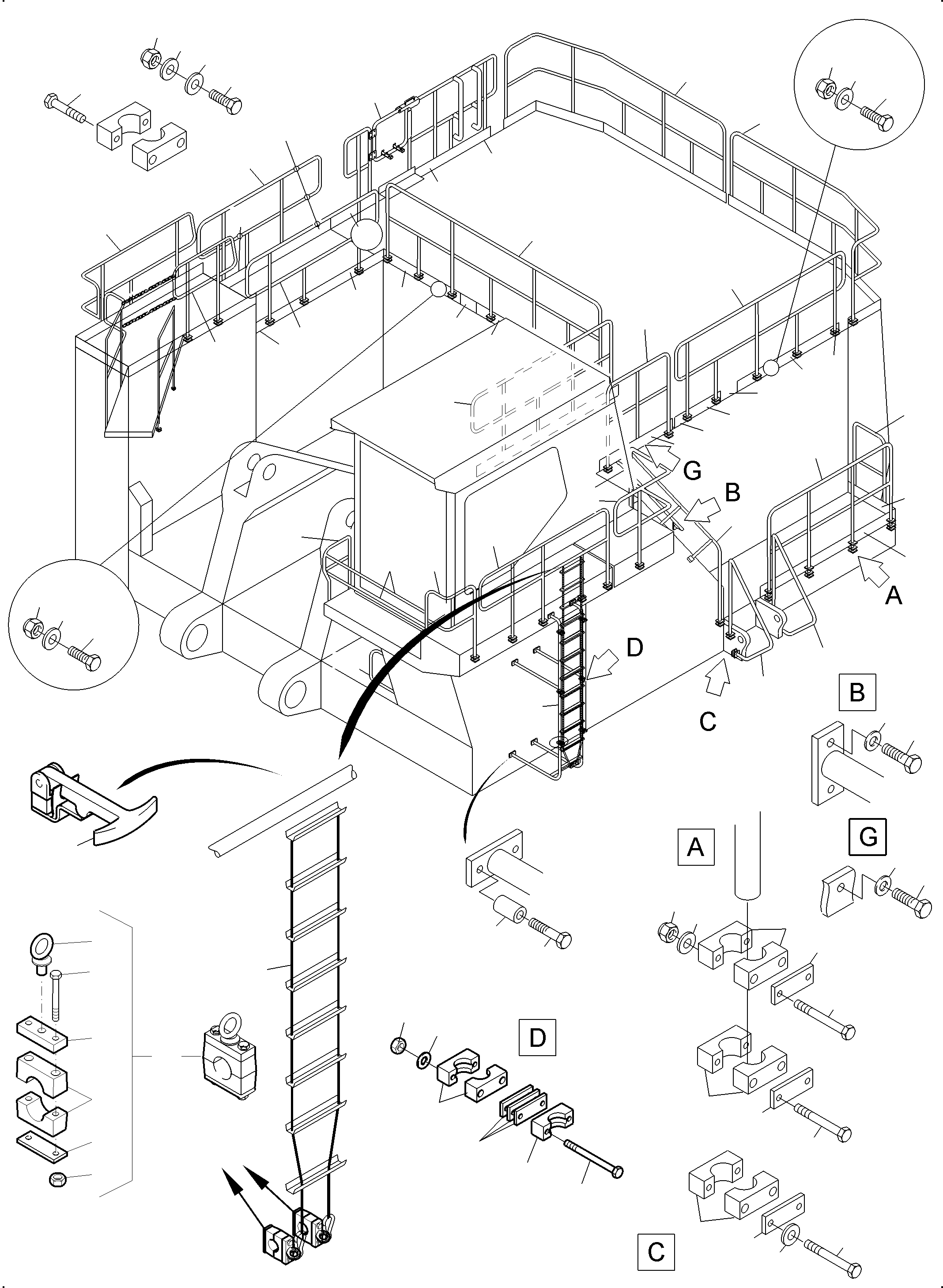

LADDERS AND RAILS (489-1022d) in PC3000-6 S/N 06377. Diagram image and parts list.
