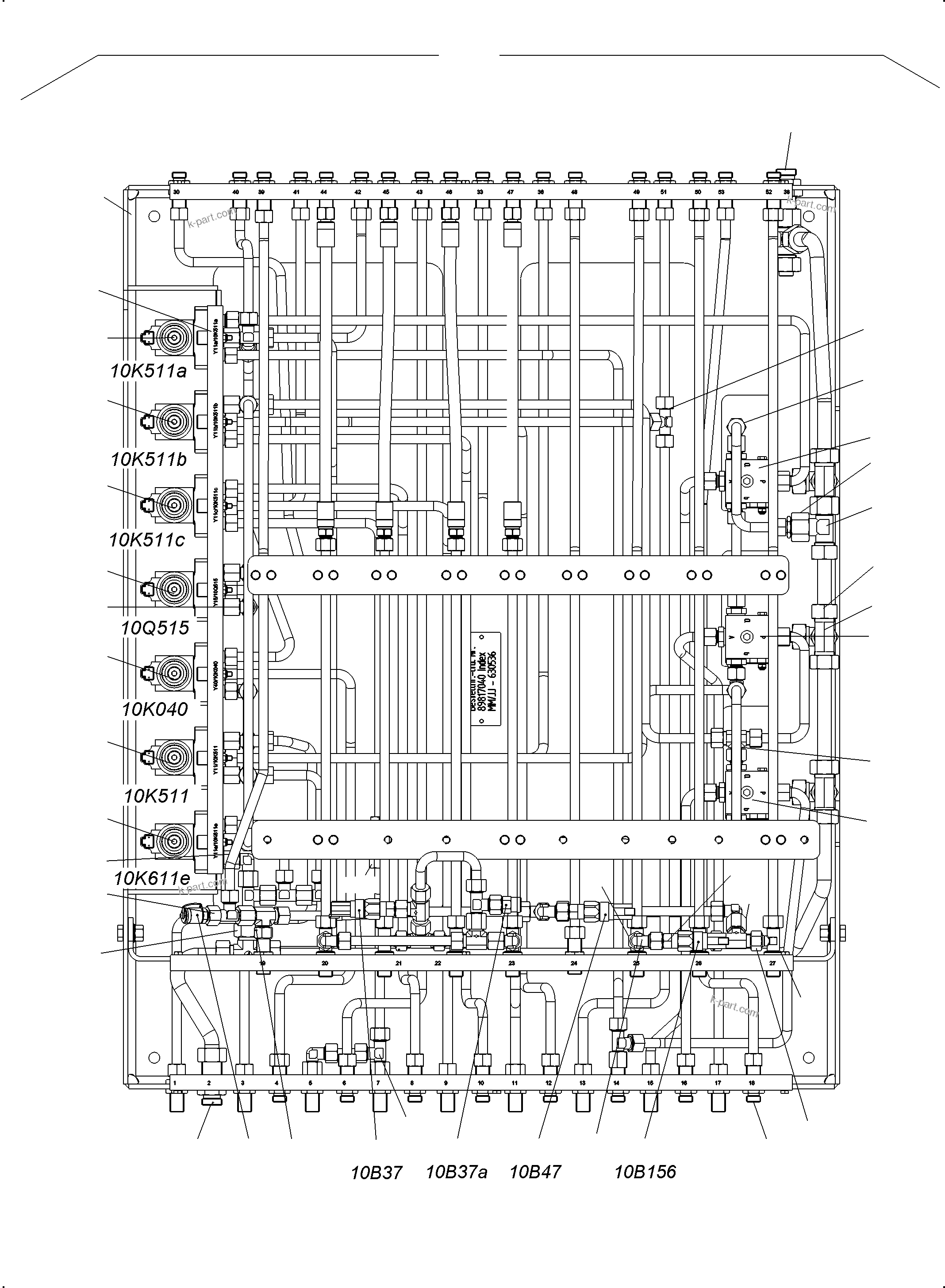

PIPES - PILOT CONTROL PLATE (BBE) | PC3000-6 S/N 06381

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	898 170 40	Pilot Control Plate assy.	1
?		Base plate	1
?	516 167 98	Socket	3
?	516 157 98	Union	9
?	374 430 99	Union	15
?	371 459 99	Union	26
?	634 499 40	Union	1
?	511 015 98	Union	2
?	516 962 98	Union	37
?	255 694 40	Plug	2
?	516 159 98	Socket	3
?	511 135 98	Union	4
?	517 913 98	Socket	2
?	634 303 40	Union	2
?		Union	2
?	515 865 98	Socket	4
?	414 370 40	Valve	3
?	940 731 40	4/2 way directional spool valve	4
?	940 730 40	4/2 way directional spool valve	3
?	797 167 73	Solenoid for fig-no. 252	-2
?	796 627 73	Sealkit	-2
?	307 732 99	Bolt	22
?	507 025 98	Nut	29
?		Washer	53
?	180 325 40	Base plate	7
?	371 949 99	Union	4
?	907 819 40	Union	7
?	516 174 98	Socket	15
?	516 157 98	Union	2
?	502 752 98	Coupling	1
?	510 537 98	Union	1
?	955 450 40	Pressure switch assy.	1
?	955 449 40	Pressure switch assy.	1
?	907 820 40	Shuttle valve	2
?	343 873 40	Shuttle valve	4
?	991 850 40	Pressure switch assy.	2
