Diagram image 1 of 2

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	963 769 40	Terminal box (empty housing)	1
?	7826188502	KOMTRAX+ controller	1
?	957 908 40	Retainer ORBCOM Controller	1
?	957 911 40	Retainer ORBCOM Controller	1
?	963 335 40	Mounting plate	1
?	308 562 99	Bolt	4
?	340 628 99	Washer	8
?	307 445 99	Bolt	7
?	518 547 98	Lock washer	4
?	518 299 98	Washer	3
?	461 029 40	Circular bearing	4
?	514 921 98	Nut	3
?	0819320010	Clip	3
?	906 231 40	Circular bearing	4
?	906 647 40	T-Splitter	3
?	907 643 40	Dust cap	1
?	907 623 40	Cable union NW 12	1
?	941 792 40	Cable union	2
?	941 144 40	End resistor	2
?	950 899 40	Seal	1
?	950 799 40	Cover plate	4
?	906 613 40	Cover plate	1
?	950 798 40	Through clamp 2,5mm2	34
?	950 185 40	Protective wire clip 2,5mm2	6
?	940 673 40	Clamp	2
?	145 743 40	Washer	8
?	952 060 40	Hat rail	1
?	906 614 40	Bridge 2-fold	3
?	906 615 40	Bridge 3-fold	8
?	350 312 99	Bolt	8
?	655 518 40	Wiring channel 40x60	-2
?	950 727 40	Plug	1
?	517 323 98	Nut	3
?	950 900 40	Seal	3
?	963 369 40	Cable KOMTRAX+ CONTR CN3A	1
?	963 370 40	Cable KOMTRAX+ CONTR CN3B	1
?	963 378 40	Cable ORB COMM CONTR	1
?	963 372 40	Cable KOMTRAX+ CONTR CN4B	1
?	963 371 40	Cable KOMTRAX+ CONTR CN4A	1
?	963 367 40	Cable KOMTRAX+ CONTR CN2A	1
?	963 368 40	Cable KOMTRAX+ CONTR CN2B	1
?	963 366 40	Cable KOMTRAX+ CONTR CN1	1
?	963 373 40	Cable 14X027B - ORT 14	1
?	963 377 40	Cable CAN-BUS 14X300a-14X335b	1
?	974 026 40	Mounting plate	1
?	963 723 40	Seal	1
?	319 131 99	Screw	10
?	340 463 99	Washer	24
?	509 869 98	Nut	14
?	896 522 40	End pin	2
?	896 520 40	End pin	4
?	509 870 98	Nut	6
?	963 379 40	Ground cable	1
?	340 507 99	Washer	4
?	509 870 98	Nut	2
?	343 608 99	Washer	2
?	318 167 99	Bolt	4
?	340 458 99	Washer	4
?	346 507 99	Lock washer	4
?	332 441 99	Nut	4
?	974 012 40	Cable 14x300-14X301	1
?	974 013 40	Cable 14X335B-14X302	1
?	950 428 40	Protective cover	1
?	950 432 40	Plug	1
?	906 648 40	Pin contact	1
?	940 852 40	Plug	13
?	103 808 42	Harness	1
?	906 792 40	Protective wire clip	1
?	906 772 40	Cover plate	1
?	974 059 40	Plug assy. HD 24	1
?	969 835 40	Cap 24	2
?	951 032 40	Seal	2
?	946 224 40	Cap 24	2
?	350 762 99	Washer	2
?	307 646 99	Bolt	2
?	906 633 40	Plug	2
?	906 635 40	Contact	73
?	174 411 40	Cable strap	3
?	941 777 40	Plate	1
?	056 070 40	Cable sleeve 1,0-1,5	111
?	940 453 40	Plug	2
?	907 865 40	Plug assy.	1
?	0819107610	Contacte	10
?	0819100710	Plug	30
?	500 090 98	Wire end ferrule 0,75-6	6
?	635 042 40	Wire end ferrule 1,5	4
?	906 631 40	Plug	1
?	906 632 40	Plug	1
?	958 956 40	CAN-Bushing	3
?	906 634 40	Plug	1
?	907 642 40	Socket	1
?	950 130 40	Protection cap	2
?	963 380 40	Cable CAN-BUS	1
?	0819213200	Body	1
?	0819100770	Sealing plug	3
?	950 171 40	Socket	2
?	950 175 40	Bushing contact	6
?	950 179 40	Contact element	2
?	950 173 40	O-ring	2
?	950 177 40	Protection cap	2
?	958 955 40	Can-bushing	3
?			-2
?			-2
?			-2
?			-2
?			-2

Komatsu PC3000-6 S/N 06381 parts catalog PDF

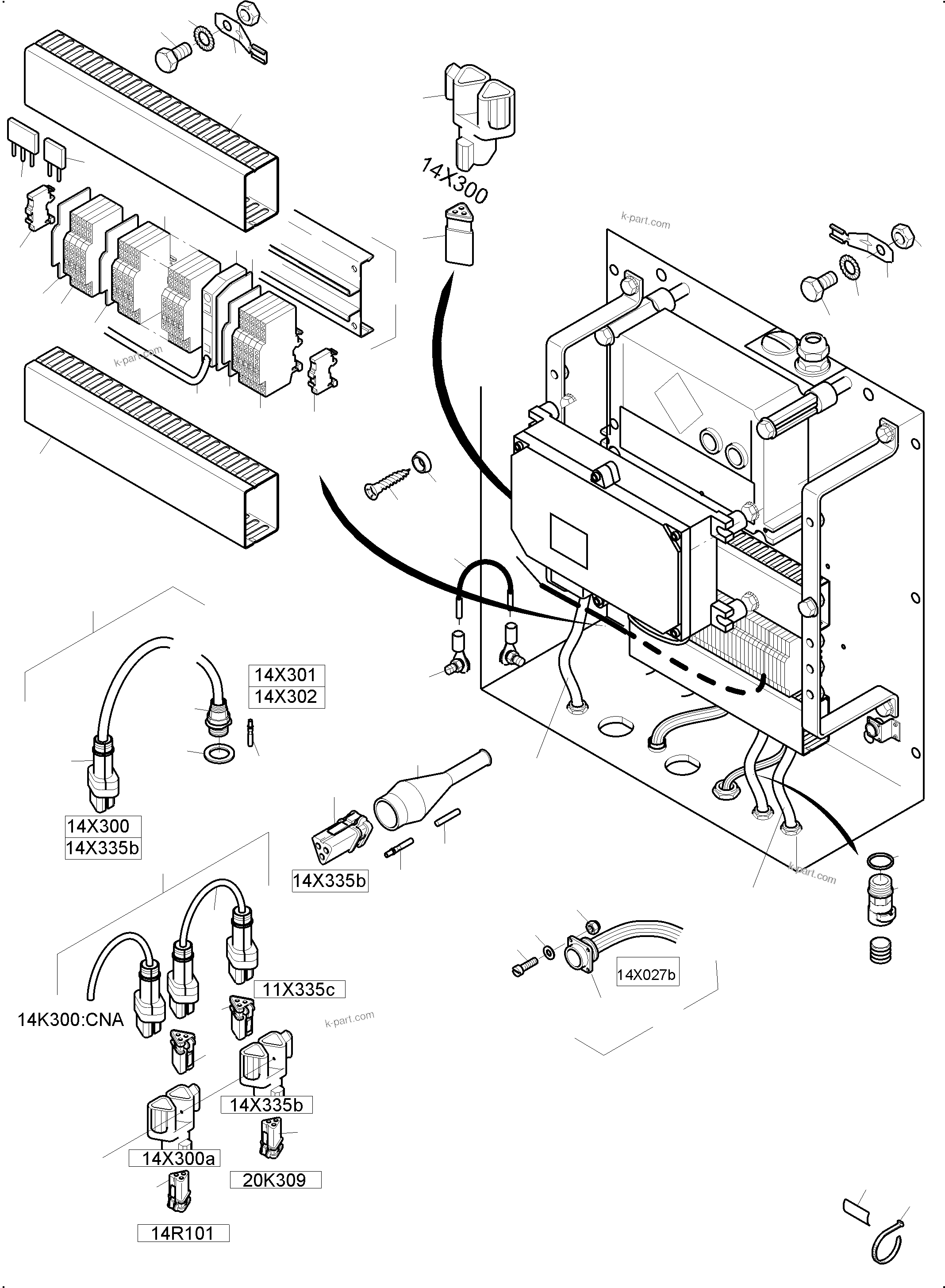

TERMINALBOX ORT 14 (489-2171e1) in PC3000-6 S/N 06381. Diagram image and parts list.
