PLATFORM (WITH CATWALK FUEL TANK) | PC3000-6 S/N 06381

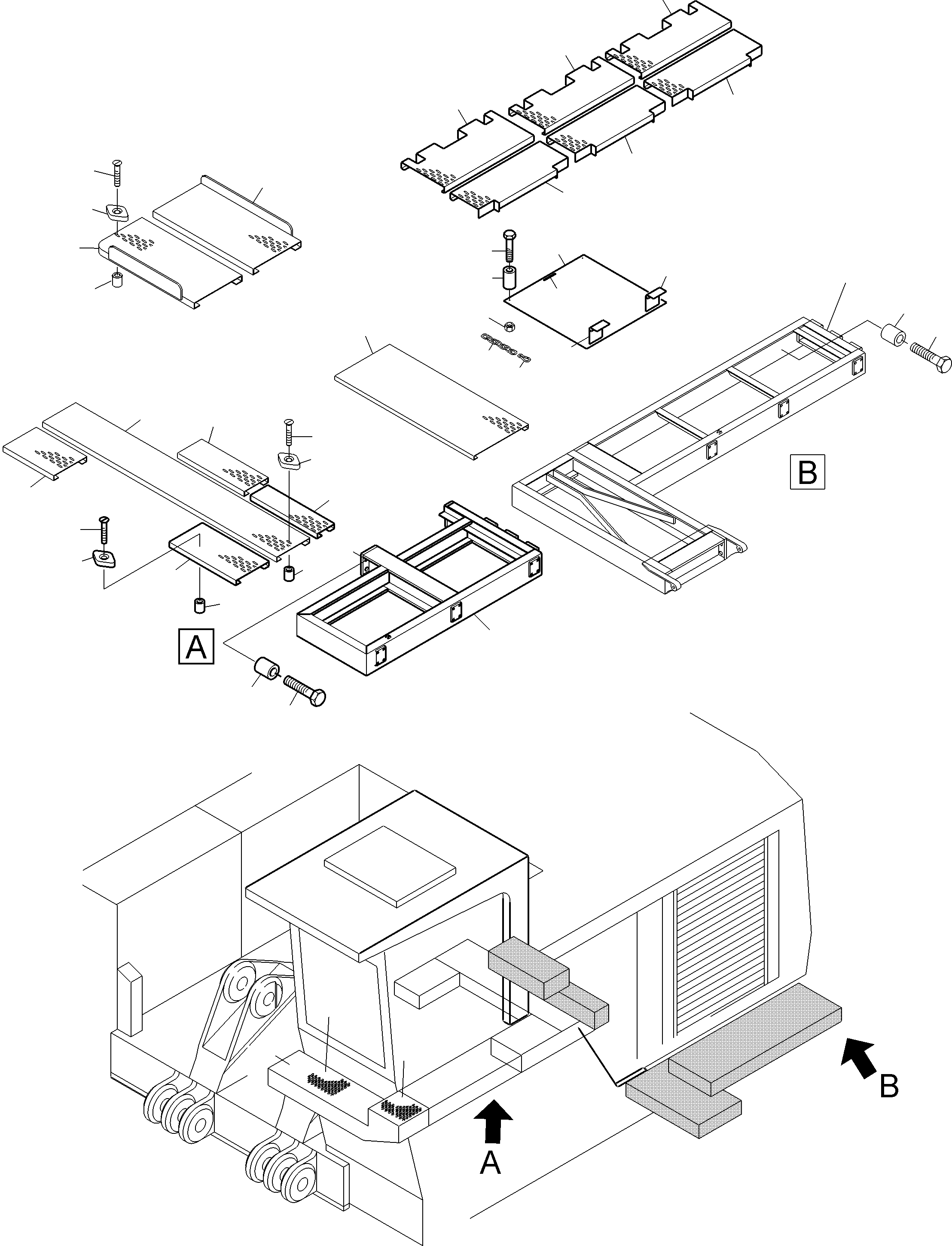

Diagram image 1 of 3

PC3000-6 S/N 06381

01 02 03 04 06 07 08 11 11 12 12 12 13 14 151 152 153 154 155 156 158 17 18 19 20 30 31 32 33 34 35 36 45 46 71 72 75 76 79 79 80 80 80 81 81

PC3000-6 S/N 06381

01 02 03 04 06 07 08 11 11 12 12 12 13 14 151 152 153 154 155 156 158 17 18 19 20 30 31 32 33 34 35 36 45 46 71 72 75 76 79 79 80 80 80 81 81

PC3000-6 S/N 06381

01 02 03 04 06 07 08 11 11 12 12 12 13 14 151 152 153 154 155 156 158 17 18 19 20 30 31 32 33 34 35 36 45 46 71 72 75 76 79 79 80 80 80 81 81

#	Part Number	Partname	Quantity
01	105 777 42	Platform	1
02	915 342 40	Battery cover assy. consist. of fig-nos: 30-32	3
03	943 809 40	Hinge assy. r.h.	3
04	943 808 40	Hinge assy. l.h.	3
06	308 608 99	Bolt	6
07	510 741 98	Resilient sleeve	6
08	503 341 98	Nut	6
11	894 621 40	Grating	2
12	915 340 40	Grating	3
13	925 262 40	Cover plate	1
14	915 333 40	Grating	1
17	927 603 40	Platform	1
18	961 812 40	Platform cpl.	1
19	510 733 98	Resilient sleeve	8
20	307 833 99	Bolt	8
22	512 545 98	Washer	148
23	334 600 99	Nut	144
26	308 605 99	Bolt	18
27	510 744 98	Resilient sleeve	14
30	511 744 98	Yoke handle	1
31	341 271 99	Trigger snap	1
32	472 509 99	Chain	-2
33	961 813 40	Grating	1
34	935 800 40	Grating	1
35	307 757 99	Screw	4
36	307 760 99	Screw	6
44	510 744 98	Resilient sleeve	19
45	308 405 99	Bolt	8
46	510 728 98	Resilient sleeve	8
58	340 111 99	Washer	3
71	901 083 40	Grating	1
72	901 082 40	Grating	1
73	371 492 40	Grating	1
74	961 332 40	Grating	1
75	302 548 99	Bolt	15
76	510 729 98	Resilient sleeve	8
79	317 319 40	Threaded block	53
80	317 318 40	Wing nut, plastic	53
81	502 354 98	Bolt	53
82	883 747 40	Grating	1
83	377 750 99	Bolt	2
84	334 599 99	Nut	4
85	890 603 40	Grating	1
86	996 236 40	Grating	1
87	936 586 40	Grating	1
89	915 324 40	Angle	1
96	319 135 99	Screw	4
97	507 025 98	Nut	4
98	081 282 40	Silent block	4
104	947 442 40	Console	1
105	947 447 40	Console	1
106	947 450 40	Console	1
107	947 453 40	Console	1
108	947 456 40	Console	1
109	947 458 40	Console	1
110	947 461 40	Console	1
111	947 464 40	Platform	1
112	947 470 40	Platform	1
113	925 261 40	Platform	1
114	915 489 40	Grating	1
115	947 465 40	Grating	1
116	915 487 40	Grating	1
117	947 477 40	Grating	1
118	604 186 40	Grating	1
119	915 488 40	Grating	1
120	308 437 99	Bolt	2
121	510 745 98	Resilient sleeve	6
123	935 252 40	Plate	1
128	308 610 99	Bolt	19
131	935 196 40	Plate	2
137	996 232 40	Foot board	1
142	507 037 98	Nut	3
151	937 987 40	Grating	1
152	937 986 40	Grating	1
153	937 985 40	Grating	1
154	937 984 40	Grating	1
155	937 983 40	Grating	1
156	937 982 40	Threaded block	15
158	318 388 99	Bolt	15
\|$$80			-2
